Summary of Contents for OneTech NT10-400F

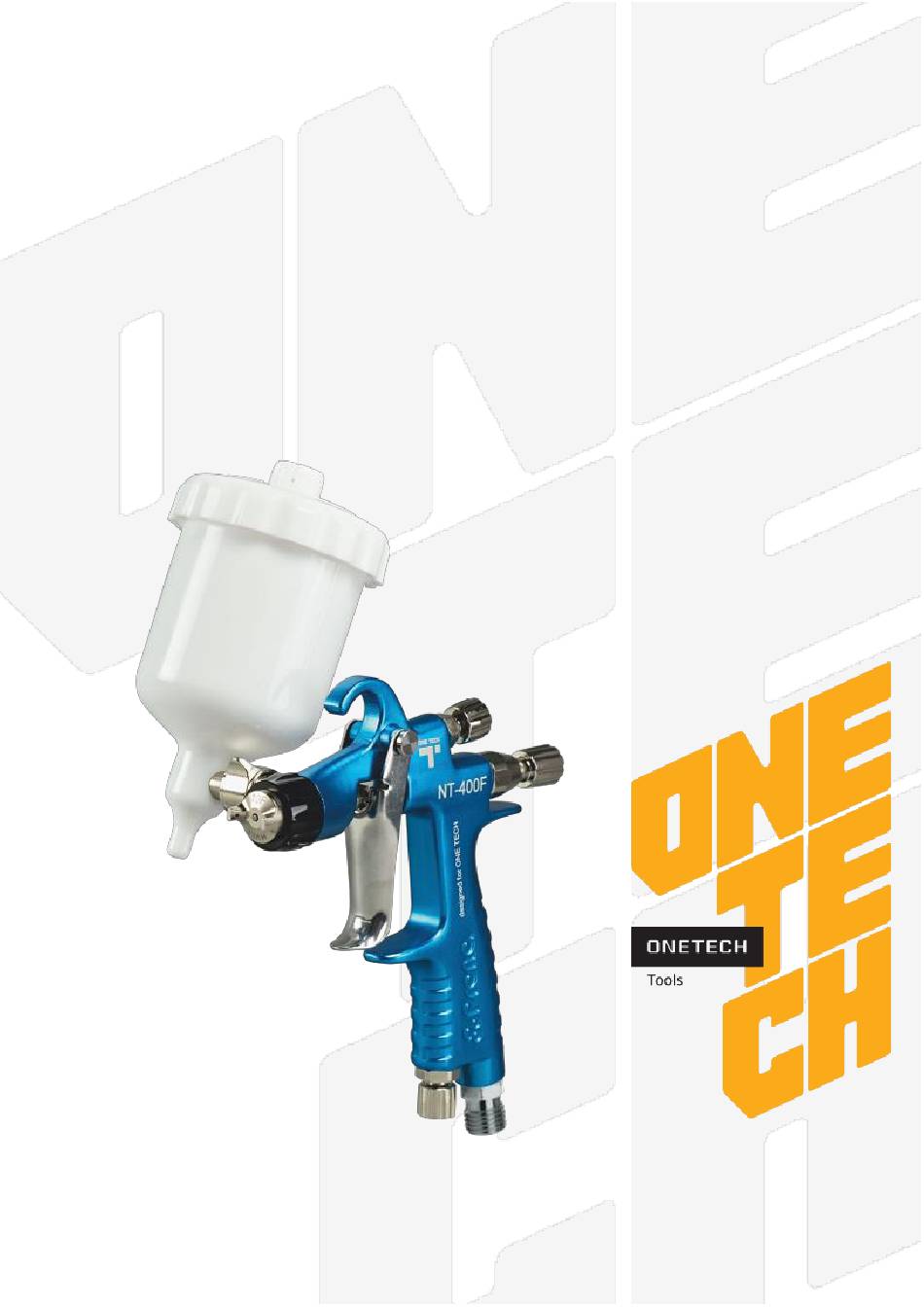

- Page 1 NT10-400F РУССКИЙ v.2.0 MANUAL GRAVITY MINI SPRAY GUN NT-400F OPERATION MANUAL...
- Page 2 Manual Gravity Mini Spray Gun NT-400F v.2.2 EN ATTENTION! PLEASE READ THIS MANUAL BEFORE USING THE SPRAY GUN (TOOL). IMPROPER USE OF TOOL MAY CAUSE INJURY AND/OR PROPERTY DAMAGE! ONLY QUALIFIED AND SPECIALLY TRAINED PERSONNEL FAMILIED WITH THESE INSTRUCTIONS IS ALLOWED TO USE AND MAINTENANCE OF THE TOOL.
-
Page 3: Operating Principle
If there is any doubt regarding the suitability of a specific material, contact your ONETECH Distributor or ONETECH direct. OPERATING PRINCIPLE ... -
Page 4: Technical Specification
TECHNICAL SPECIFICATION Spray width, Nozzle size, Air Pressure, Air Consumption, Fluid Output, Weight, Model ml/min ± 20 mm NT10-400F-04 NT10-400F-06 NT10-400F-08 0.9 – 1.5 NT10-400F-10 NT10-400F-12 Material Inlet Thread Air Inlet Thread 1/4" (M) 1/4" (M) * – spraying distance – 150 mm, fluid viscosity – 11-15 seconds. -
Page 5: Troubleshooting Guide
Manual Gravity Mini Spray Gun NT-400F v.2.2 EN TROUBLESHOOTING GUIDE FLUTTERING Possible Cause Solution Insufficient material in cap Refill material Dry or worn fluid needle packing set or loose fluid needle Lubricate or replace fluid needle packing set or tighten fluid packing screw needle packing screw Loose or damaged fluid nozzle... - Page 6 Manual Gravity Mini Spray Gun NT-400F v.2.2...
- Page 7 Manual Gravity Mini Spray Gun NT-400F v.2.2 EN Description Part No. Description Part No. Air cap 04 NT10S-282 Fluid needle set (1.2) NT10S-182 Air cap 06 NT10S-268 O-ring NT10S-158 Air cap 08 NT10S-269 Gun body NT10S-183 Air cap 10 NT10S-270 Air connector NT10S-160 Air cap 12...
- Page 8 Manual Gravity Mini Spray Gun NT-400F v.2.2 info@onetech-tools.com www.onetech-auto.com www.onetech-tools.com...
