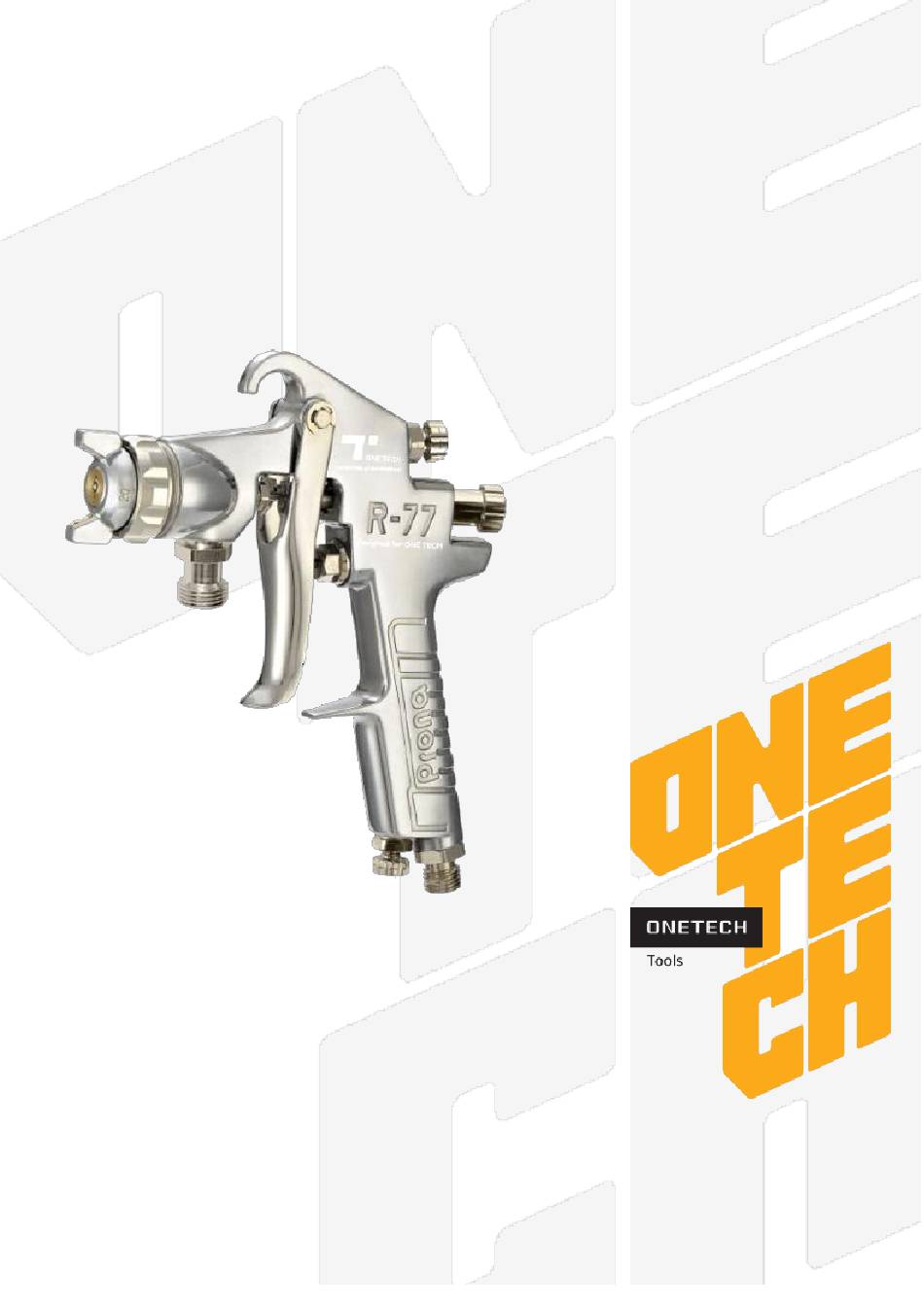

- Page 1 NT10-R-77Z РУССКИЙ v.2.0 MANUAL SPRAY GUN PRESSURE FEED MANUAL INSTRUCTION NT10-R-77Z-20 NT10-R-77Z-25 NT10-R-77Z-30...
- Page 2 NT10-R-77Z ENGLISH v.2.0 ATTENTION! PLEASE READ THIS MANUAL BEFORE USING THE SPRAY GUN (TOOL). IMPROPER USE OF TOOL MAY CAUSE INJURY AND/OR PROPERTY DAMAGE! ONLY QUALIFIED AND SPECIALLY TRAINED PERSONNEL FAMILIED WITH THESE INSTRUCTIONS IS ALLOWED TO USE AND MAINTENANCE OF THE TOOL. This manual contains description, safety rules and all the information necessary for the correct use of the spray gun.
- Page 3 If there is any doubt regarding the suitability of a specific material, contact your ONETECH Distributor or ONETECH direct. OPERATING PRINCIPLE ✓...
- Page 4 Air Consumption, Spray width, Nozzle size, Air Pressure, Fluid Output, Weight, Model ml/min ± 20 mm NT10-R-77Z-20 NT10-R-77Z-25 NT10-R-77Z-30 Material Inlet Thread Air Inlet Thread 3/8" (M) 1/4" (M) * – spraying distance – 250 mm, fluid viscosity – 20±1 seconds.
- Page 5 NT10-R-77Z ENGLISH v.2.0 TROUBLESHOOTING GUIDE FLUTTERING Possible Cause Solution Insufficient material in cap Refill material Dry or worn fluid needle packing set or loose fluid needle Lubricate or replace fluid needle packing set or tighten fluid packing screw needle packing screw Loose or damaged fluid nozzle Tighten or replace fluid nozzle CRESCENT...
- Page 6 NT10-R-77Z v.2.0...
- Page 7 NT10-R-77Z v.2.0 Description Part No. Description Part No. Код Air cap set 2.0 Gun body NT10S-219 NT10S-233 Air cap set 2.5 Air connector NT10S-275 NT10S-234 Air cap set 3.0 Air adjusting set NT10S-276 NT10S-235 Fluid nozzle (2.0) Locking ring NT10S-220 NT10S-236 Fluid nozzle (2.5) Trigger stud...
- Page 8 NT10-R-77Z v.2.0...
