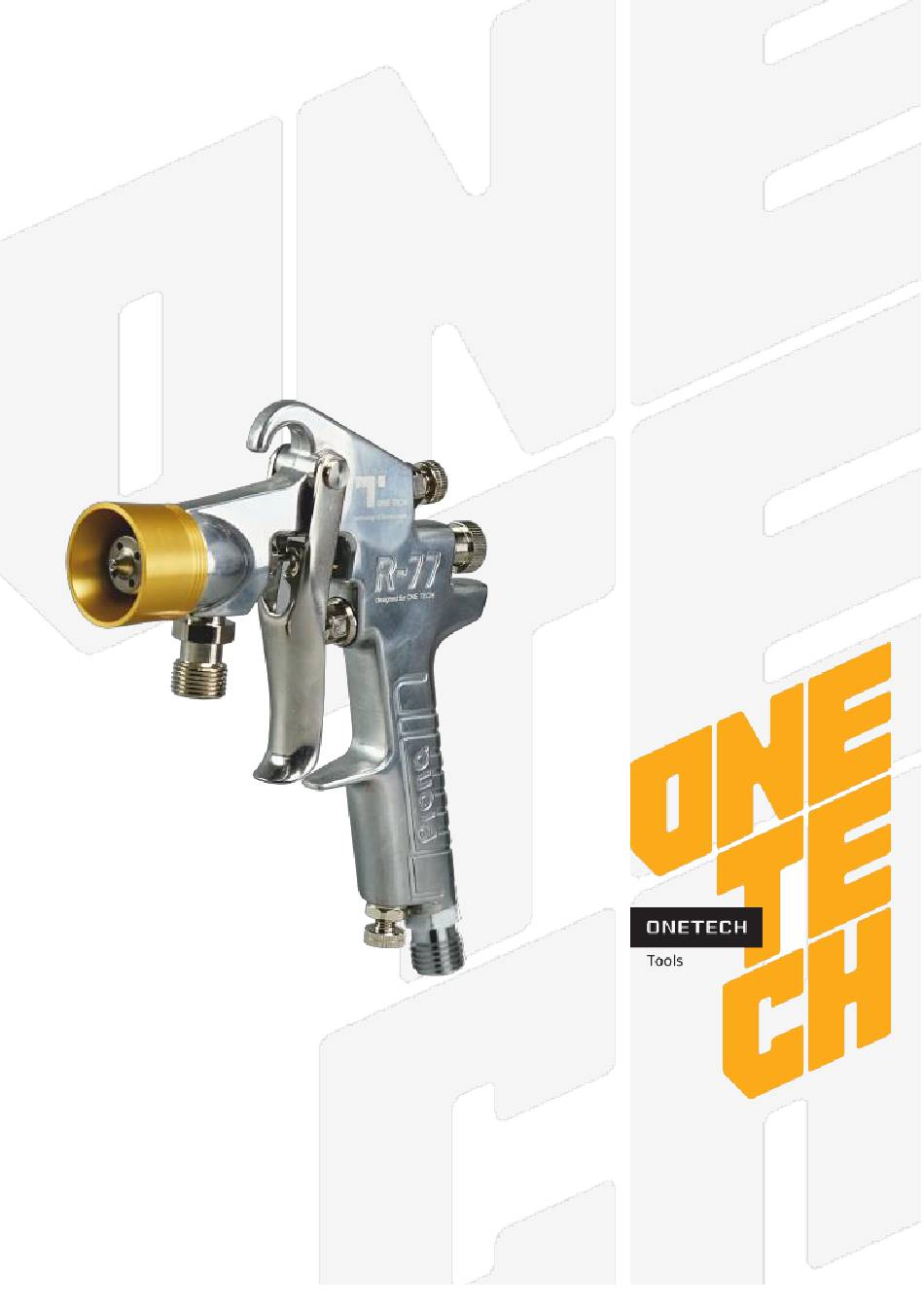

- Page 1 NT10-R-77S РУССКИЙ v.2.0 MANUAL SPRAY GUN PRESSURE FEED MANUAL INSTRUCTION NT10-R-77S-12 NT10-R-77S-15 NT10-R-77S-20 NT10-R-77S-25 NT10-R-77S-30...
- Page 2 NT10-R-77S ENGLISH v.2.0 ATTENTION! PLEASE READ THIS MANUAL BEFORE USING THE SPRAY GUN (TOOL). IMPROPER USE OF TOOL MAY CAUSE INJURY AND/OR PROPERTY DAMAGE! ONLY QUALIFIED AND SPECIALLY TRAINED PERSONNEL FAMILIED WITH THESE INSTRUCTIONS IS ALLOWED TO USE AND MAINTENANCE OF THE TOOL. This manual contains description, safety rules and all the information necessary for the correct use of the spray gun.
-
Page 3: Operating Principle
If there is any doubt regarding the suitability of a specific material, contact your ONETECH Distributor or ONETECH direct. OPERATING PRINCIPLE ✓... -
Page 4: Technical Specification
NT10-R-77S ENGLISH v.2.0 EXAMPLE OF AIR SUPPLY SYSTEM TECHNICAL SPECIFICATION Nozzle size, Air Pressure, Air Consumption, Fluid Output, Weight, Model ml/min NT10-R-77S-12 NT10-R-77S-15 NT10-R-77S-20 1.0 – 3.5 NT10-R-77S-25 NT10-R-77S-30 Material Inlet Thread Air Inlet Thread 3/8" (M) 1/4" (M) * – spraying distance – 250 mm, fluid viscosity – 20±1 seconds. -
Page 5: Troubleshooting Guide
NT10-R-77S ENGLISH v.2.0 TROUBLESHOOTING GUIDE FLUTTERING Possible Cause Solution Insufficient material in cap Refill material Dry or worn fluid needle packing set or loose fluid needle Lubricate or replace fluid needle packing set or tighten fluid packing screw needle packing screw Loose or damaged fluid nozzle Tighten or replace fluid nozzle CRESCENT... - Page 6 NT10-R-77S v.2.0...
- Page 7 NT10-R-77S v.2.0 Description Part No. Description Part No. Air cap set 1.2 Fluid needle set 3.0 NT10S-248 NT10S-258 Air cap set1.5 O-ring NT10S-277 NT10S-232 Air cap set 2.0 Gun body NT10S-278 NT10S-233 Air cap set 2.5 Air connector NT10S-279 NT10S-234 Air cap set 3.0 Air adjusting set NT10S-280...
- Page 8 NT10-R-77S v.2.0...
