Peak Ellipse Lite User Manual
2-way rollator
Hide thumbs
Also See for Ellipse Lite:
- User manual (8 pages) ,
- User manual (8 pages) ,
- User manual (9 pages)
Related Manuals for Peak Ellipse Lite
Summary of Contents for Peak Ellipse Lite

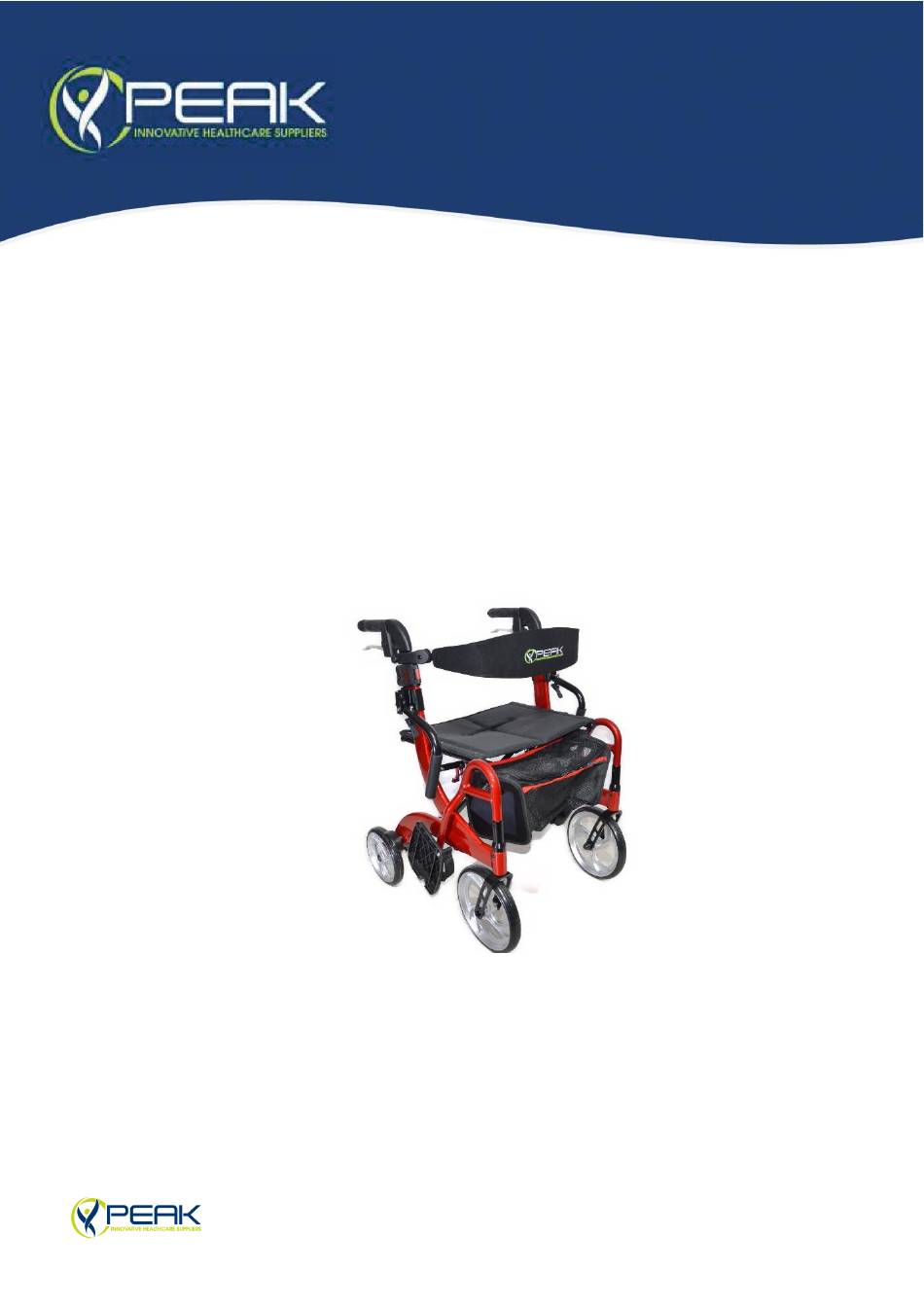

- Page 1 User Manual Ellipse Lite 2-way Rollator Ellipse Lite 2-Way Rollator V 1.01 Dec 2023 Page 1 of 12...
- Page 2 Thank you for purchasing the Peak-Care Ellipse Lite 2-way Rollator. It can be configured as either a walking aid or a light weight foldable wheelchair. The Walking aid is suitable for a single user with limited mobility. The Ellipse 2-way Lite is ideal for indoor and outdoor use.
-
Page 3: Parts List
The 2-way rollator is suitable for a single user with limited mobility. It is ideal for both indoor and outdoor use. THE ELLIPSE LITE 2-WAY ROLLATOR PACK INCLUDES 1 Ellipse Lite 2 Bag 3 Back Strap 4 User Manual Rollator Ellipse Lite 2-Way Rollator V 1.01 Dec 2023 Page 3 of 12... -
Page 4: Height Adjustment
3. Close the red clamp. ATTACHING THE CARRY BAG 1. Fold the Ellipse Lite 2-way Rollator for ease of access. 2. Locate the bag hooks under the seat frame. Slide the loops on the bag onto the hooks. -
Page 5: Adjustment Of Brakes
BRAKING & LOCKING THE BRAKES Pull both brake levers upwards to apply the brakes while the Ellipse Lite 2-way Rollator is moving. Always brake slowly and steadily. Press both levers down to lock the brakes while the Ellipse 2-way Lite is stationary. - Page 6 SITTING WHEN USED AS A ROLLATOR Position the Ellipse Lite 2-way Rollator on an even and solid surface. Lock the brakes (parking position). The Ellipse Lite must stand and must not slip. Sit straight up and do not lean backwards.
- Page 7 3. To fold, pull seat upwards by the handle of the seat plate 4. Once the Ellipse Lite 2-way Rollator is folded, the red locking clip will secure and stop the walker from opening whilst lifting in or out of a vehicle. See below: Ellipse Lite 2-Way Rollator V 1.01 Dec 2023...
-
Page 8: Cleaning And Maintenance
Always lock the brake lever before sitting and do not use the seat when rollator is on an incline or uneven ground. • Replace castors when tyres are significantly worn or damaged. Ellipse Lite 2-Way Rollator V 1.01 Dec 2023 Page 8 of 12... -
Page 9: Specifications
11.00 kg Construction materials Frame – Aluminium Carry bag – Nylon cloth and mesh Seat – Polyurethane cloth and foam Max Carrying Capacity 130kg Max Carry Bag Capacity 5.00kg Ellipse Lite 2-Way Rollator V 1.01 Dec 2023 Page 9 of 12... - Page 10 Peak Healthcare Equipment Pty Ltd Level 1, 149 Princes Highway Unanderra NSW 2526 Australia Tel: +61 2 4272 2688. Fax: +61 2 4272 2699 www.peak-care.com.au...
- Page 11 This page intentionally left blank -...
- Page 12 This page intentionally left blank -...
