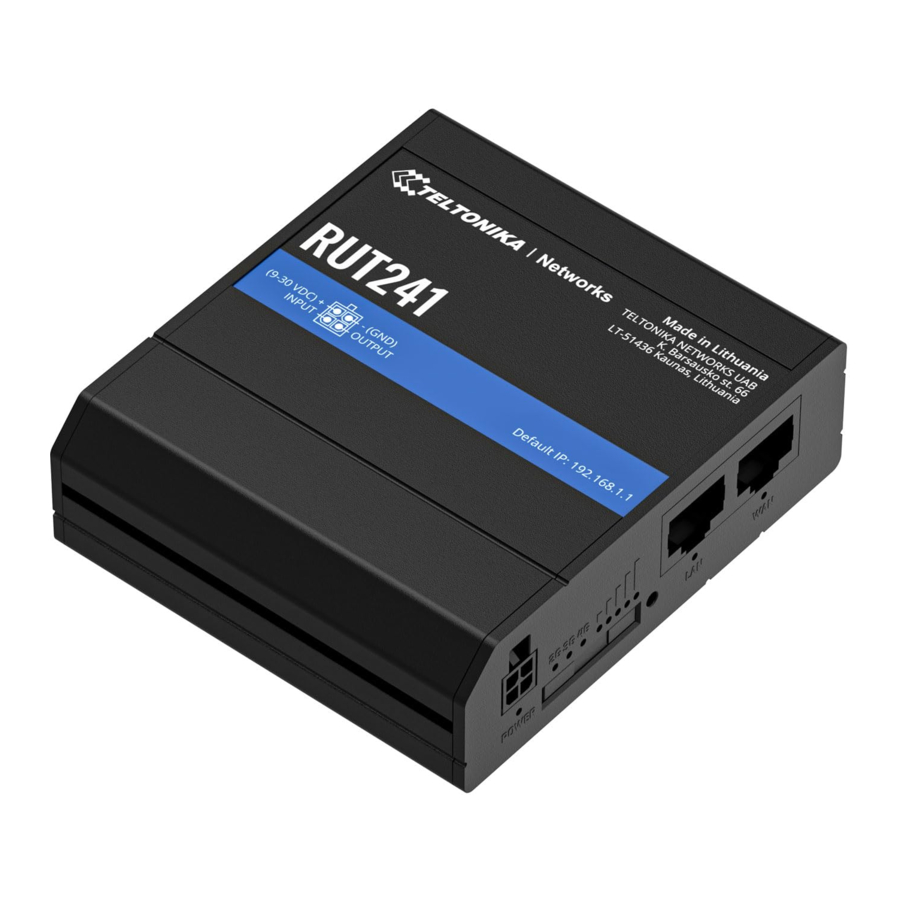

Teltonika RUT241 Manual

HARDWARE

FRONT VIEW
FRONT VIEW

BACK VIEW
BACK VIEW

POWER SOCKET PINOUT
POWER SOCKET PINOUT

FEATURES

MOBILE

Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list Operator black/white list
Multiple PDN Possibility to use different PDNs for multiple network access and services
Band management Band lock, Used band status display
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Passthrough Router assigns its mobile WAN IP address to another device on LAN

WIRELESS

Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
WiFi security WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID/ESSID SSID stealth mode and access control based on MAC address
WiFi users Up to 50 simultaneous connections
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page

ETHERNET

WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

NETWORK

Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup WiFi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing Balance Internet traffic over multiple WAN connections
Hotspot Internal/external Radius server, captive portal, built in customizable landing page
SSHFS Possibility to mount remote file system via SSH protocol

SECURITY

Authentication Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag based VLAN separation
Mobile quota control Custom data limits for SIM card
WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code
DMVPN Method of building scalable IPsec VPNs
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
Tinc Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

MODBUS TCP SLAVE

ID range Respond to one ID in range [1;255] or any
Allow Remote Access Allow access through WAN
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

MODBUS TCP MASTER

Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

MODBUS DATA TO SERVER

Protocol HTTP(S), MQTT, Azure MQTT

MQTT GATEWAY

MQTT Gateway Allows sending commands and receiving data from MODBUS Master through MQTT broker

DNP3

Supported modes TCP Master, DNP3 Outstation

MONITORING & MANAGEMENT

WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, WiFi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
RMS Teltonika Remote Management System (RMS)

MONITORING & MANAGEMENT

WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, WiFi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
RMS Teltonika Remote Management System (RMS)

IoT PLATFORMS

Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
Azure IoT Hub Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

SYSTEM CHARACTERISTICS

CPU Mediatek MIPS 24Kc 580 MHz
RAM 128 MB, DDR2
FLASH storage 16 MB, SPI Flash

FIRMWARE / CONFIGURATION

WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration

FIRMWARE CUSTOMIZATION

Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided

INPUT/OUTPUT

Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event

POWER

Connector 4-pin industrial DC power socket
Input voltage range 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, 9-30 VDC
Power consumption < 6.5 W Max

PHYSICAL INTERFACES

Ethernet 2 x RJ45 ports, 10/100 Mbps
I/O's 1 x Digital Input, 1 x Digital Output on 4 pin power connector
Status LEDs 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
Power 1 x 4 pin DC connector
Antennas 2 x SMA for LTE, 1 x RP-SMA for WiFi antenna connectors
Reset Reboot/Factory reset button

PHYSICAL SPECIFICATION

Casing material Aluminium housing, plastic panels
Dimensions (W x H x D) 83 x 25 x 74 mm
Weight 125 g
Mounting options Bottom and sideways DIN rail mounting slots

OPERATING ENVIRONMENT

Operating temperature -40°C to 75°C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30

REGULATORY & TYPE APPROVALS

Regulatory CE/RED, UKCA, CB

EMI IMMUNITY

IMMUNITY Standards EN 301 489-1 V2.2.3 EN 301 489-17 V3.2.4 Final draft EN 301 489-52 V1.2.0 EN 55032:2015+A1:2020 EN 55035:2017+A11:2020 EN 61000-3-3:2013+A1:2019 EN IEC 61000-3-2:2019
ESD EN 61000-4-2:2009
RS EN 61000-4-3:2020
EFT EN 61000-4-4:2012
Surge immunity (AC Power Line) EN 61000-4-5:2014+A1:2017
CS EN 61000-4-6:2014
DIP EN IEC 61000-4-11:2020

RF

Standards EN 300 328 V2.2.2, EN 301 511 V12.5.1, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1

SAFETY

Standards EN IEC 62311:2020, EN 50665:2017, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018

WHAT'S IN THE BOX?

STANDARD PACKAGE CONTAINS*

* For all standard order codes standard package contents are the same, except for PSU.

  • Router RUT241
  • 9 W PSU
  • 2 x LTE antennas (swivel, SMA male)
  • 1 x Wi-Fi antenna (swivel, RP-SMA male)
  • Ethernet cable (1.5 m)
  • SIM Adapter kit
  • QSG (Quick Start Guide)
  • Packaging box

STANDARD ORDER CODES

PRODUCT CODE HS CODE HTS CODE PACKAGE CONTAINS
RUT241 010000 851762 8517.62.00 Standard package with Euro PSU
RUT241 030000 851762 8517.62.00 Standard package with Euro PSU
RUT241 065000 851762 8517.62.00 Standard package with AU PSU
RUT241 000000 851762 8517.62.00 Standard package with Euro PSU
RUT241 098000 851762 8517.62.00 Standard package with US PSU
RUT241 087000 851762 8517.62.00 Standard package with JP PSU

For more information on all available packaging options – please contact us directly.

AVAILABLE VERSIONS

PRODUCT CODE REGION (OPERATOR) FREQUENCY
RUT241 *0**** Europe 1 , the Middle East, Africa, Korea, Thailand
  • 4G (LTE-FDD): B1, B3, B7, B8, B20, B28A
  • 3G: B1, B8
  • 2G: B3, B8
RUT241 *1**** Europe 1 , the Middle East, Africa
  • 4G (LTE-FDD): B1, B3, B5, B7, B8, B20
  • 4G (LTE-TDD): B40
  • 3G: B1, B5, B8
  • 2G: B3, B8
RUT241 *3**** Global 1
  • 4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28
  • 4G (LTE-TDD): B38, B39, B40, B41
  • 3G: B1, B2, B4, B5, B6, B8, B19
  • 2G: B2, B3, B5, B8
RUT241 *6**** Australia, New Zealand, Taiwan
  • 4G (LTE-FDD): B1, B3, B5, B7, B8, B28
  • 4G (LTE-TDD): B40
  • 3G: B1,B5, B8
  • 2G: B3, B5, B8
RUT241 *9**** North America: Verizon, AT&T, T-Mobile
  • 4G (LTE-FDD): B2, B4, B5, B12, B13, B14, B66, B71
  • 3G: B2, B4, B5
RUT241 *8**** Japan
  • 4G (LTE-FDD): B1, B3, B8, B18, B19, B26
  • 4G (LTE-TDD): B41
  • 3G: B1, B6, B8, B19

* - For more detailed information, visit our Wiki
1 - Regional availability - excluding Russia & Belarus.

MOUNTING OPTIONS

DIN RAIL KIT

Parameter Value
Mounting standard 35mm DIN Rail
Material Low carbon steel
Weight 57g
Screws included Philips Pan Head screw #6-32×3/16, 2pcs
Dimensions mm x 46 mm x 20 mm
RoHS Compliant V

DIN RAIL KIT

  • DIN Rail adapter
  • Philips Pan Head screw #6-32×3/16, 2pcs for RUT2xx/RUT9xx
ORDER CODE HS CODE HTS CODE
PR5MEC00 73269098 7326.90.98

For more information on all available packaging options – please contact us directly.

COMPACT DIN RAIL KIT

Parameter Value
Mounting standard 35mm DIN Rail
Material ABS + PC plastic
Weight 6.5 g
Screws included Philips Pan Head screw #6-32×3/16, 2pcs
Dimensions mm x 25 mm x 14,5 mm
RoHS Compliant V

DIN RAIL KIT

  • Compact plastic DIN Rail adapter (70x25x14,5mm)
  • Philips Pan Head screw #6-32×3/16, 2pcs
ORDER CODE HS CODE HTS CODE
PR5MEC11 73269098 7326.90.98

For more information on all available packaging options – please contact us directly.

SURFACE MOUNTING KIT

Parameter Value
Mounting standard Flat surface mount
Material ABS + PC plastic
Weight 2x5 g
Screws included Philips Pan Head screw #6-32×3/16, 2pcs
Dimensions mm x 48 mm x 7.5 mm
RoHS Compliant V

DIN RAIL KIT

  • Surface mounting kit
  • Philips PanHead screw #6-32×3/16, 2pcs
ORDER CODE HS CODE HTS CODE
PR5MEC12 73269098 7326.90.98

Philips Pan Head screw #6-32×3/16, 2pcs
For more information on all available packaging options – please contact us directly.

RUT241 SPATIAL MEASUREMENTS & WEIGHT

MAIN MEASUREMENTS
W x H x D dimensions for RUT241:
Device housing*: 83 x 25 x 74 mm
Box: 173 x 71 x 148 mm
*Housing measurements are presented without antenna connectors and screws; for measurements of other device elements look to the sections below.

TOP VIEW
The figure below depicts the measurements of RUT241 and its components as seen from the top:
TOP VIEW

RIGHT VIEW
The figure below depicts the measurements of RUT241 and its components as seen from the right side:
RIGHT VIEW

FRONT VIEW
The figure below depicts the measurements of RUT241 and its components as seen from the front panel side:
FRONT VIEW

REAR VIEW
The figure below depicts the measurements of RUT241 and its components as seen from the back panel side:
REAR VIEW

MOUNTING SPACE REQUIREMENTS
The figure below depicts an approximation of the device's dimensions when cables and antennas are attached:
MOUNTING SPACE REQUIREMENTS

DIN RAIL
The scheme below depicts protrusion measurements of an attached DIN Rail:
DIN RAIL

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Teltonika RUT241 Manual

Advertisement

Need help?

Need help?

Do you have a question about the RUT241 and is the answer not in the manual?

Questions and answers

Related Manuals for Teltonika RUT241

Save Article as PDF

Table of Contents
