Contour Unimouse Manual

What's in the Box?

1. Unimouse
2. Dongle
3. USB extender
4. Charging cable

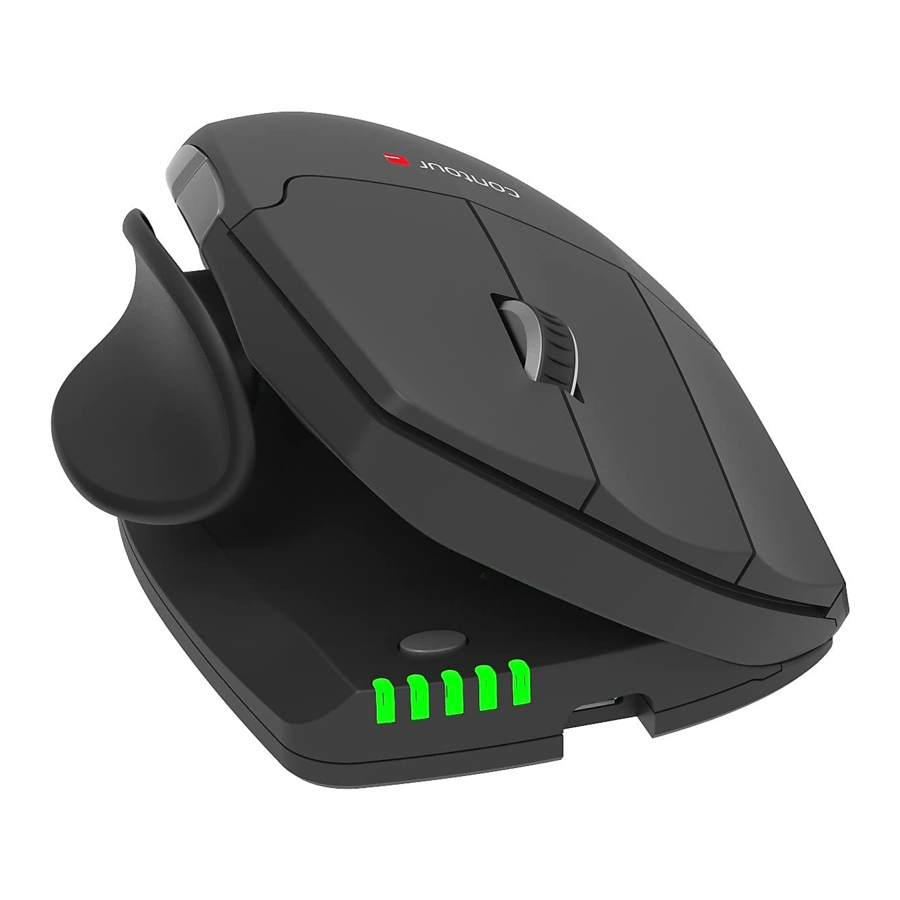

Functions

1. Left click
2. Scroll wheel
3. Middle click
4. Right click
5. Cursor speed adjustment
6. LED indicator
7. Charging port
8. Forward
9. Back
10. Thumb rest
11. Base/tilt

Quick start

1. Connect via Bluetooth
   Power on the Unimouse (button IL). On your computer, navigate to the area of settings regarding Bluetooth connections. Select the option to add or discover a Bluetooth device. Your Unimouse will automatically be recognized, select it for the computer to start Bluetooth connection.
2. Connect via USB dongle
   Insert the USB dongle into an available USB port and power on your Unimouse. Your computer will recognize your new device and connect automatically.
3. Connect via wired USB connection
   Connect the USB cable to your Unimouse and into an available USB port on your computer. Your computer will recognize your new device and connect automatically.

Battery level

Your Unimouse has a built-in rechargeable battery and comes pre-charged with an expected battery life of up to 3 months with average daily use.
Battery level is shown when the Unimouse is powered on or plugged in. If the battery is below 20%, a single light will blink to indicate the need to charge.

Charging

To charge your Unimouse remove the USB extender and dongle from the charging cable. Plug the cable into the Unimouse and connect to your computer. Your Unimouse will be fully charged in approx. 2 hours. You may continue to use the mouse as it charges.

Cursor Speed (DPI)

Press the Cursor speed (button E) to cycle through cursor speeds. There are speed selections which range from slow (800 DPI) to fast (4000 DPI). Speed can be identified by the LED lights as shown.

Pairing and secondary options

1. Restart Bluetooth pairing: Press button E. While continuing to hold E, press and release button A two times, then release button E.
2. Select Bluetooth-only connectivity: Press button E. While continuing to hold E, press and release button A three times, then release button E.
3. Select dongle-only connectivity: Press button E, while continuing to hold E, press and release button D three times, then release button E.

Adjustability for your comfort

Adjustability is the key feature of the Unimouse, designed to offer a personalized experience. The Unimouse features four friction-based points of articulation, ensuring stability in any position. The articulating hinge allows for a vertical tilt between 35-70 degrees, while the Articulating Thumb Support extend up to a length of 14 mm. Take your time to explore and adjust to find the perfect setup.

Body tilt

Adjust body tilt for the desired mousing angle. The friction based adjustment allows vertical positions from every angle between 35 to 70 degrees.

Thumb support rotation & extension

The thumb support can be rotated in any direction and extended to accommodate different hand sizes.

Thumb support slide

Slide the thumb support forward or back to accommodate variantion in length and grip preferences.

Middle click button - customization

The Unimouse is preset with the middle button set to "middle click".
To change the function of the middle button:
Press and hold the cursor speed (E). While continuing holding (E), repeatedly press the middle click button (C) until the desired function is select. LED lights will indicate the selection, as shown in the scheme.

Middle click options

	Middle click
	Double click
	Left click
	Right click
	Freeze click

Software driver

All Contour's ergonomic products are plug-and-play. If you want to customize your Unimouse, we recommend to download the free driver available at: contourdesign.com/drivers
