Summary of Contents for Contour Unimouse

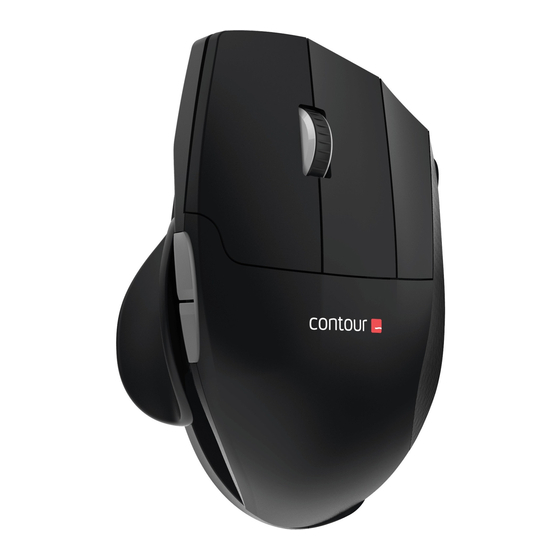

- Page 1 C3 Unimouse Wireless Product Manual...
- Page 2 What’s in the Box? User guide 1. Unimouse 2. Dongle 3. USB extender 4. Charging cable – 2 –...
- Page 3 Functions A. Left click B. Scroll wheel C. Middle click D. Right click E. Cursor speed adjustment F. LED indicator G. Charging port H. Forward I. Back J. Thumb rest K. Base/tilt – 3 –...
- Page 4 Quick start 1. Connect via Bluetooth Power on the Unimouse (button I L ). On your computer, navigate to the area of settings regarding Bluetooth connections. Select the option to add or discover a Bluetooth device. Your Unimouse will automatically be recognized, select it for the computer to start Bluetooth connection.
- Page 5 (800 DPI) to fast (4000 DPI). Speed can be identified by the LED lights as shown. Battery level is shown when the Unimouse is powered on or plugged in. If the battery is below 20%, a single light will blink to indicate the need to charge.
- Page 6 Pairing and secondary options Restart Bluetooth pairing: Restore pairing with dongle: Press button E. While continuing to hold E, press and Unplug then re-plug the dongle to the unit to enable pairing. release button A two times, then release button E. Hold the device close to dongle and press button E.

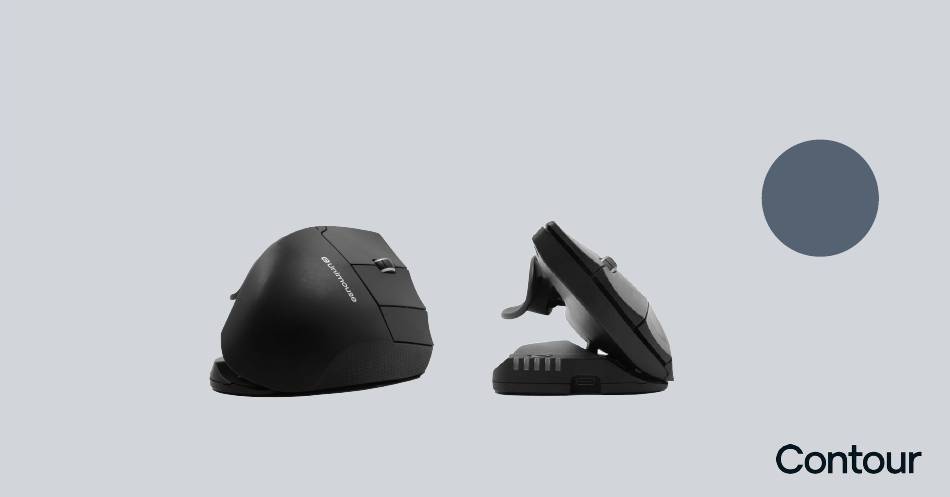

- Page 7 Adjustability for your comfort Thumb support rotation & extension Adjustability is the key feature of the Unimouse, designed to The thumb support can be rotated in any direction and offer a personalized experience. The Unimouse features four extended to accommodate different hand sizes.
- Page 8 Middle click button - customization Middle click options The Unimouse is preset with the middle button set to "middle click". Middle click To change the function of the middle button: Double click Press and hold the cursor speed (E). While continuing holding (E), repeatedly press the middle click button (C) until the desired function is select.
- Page 9 Software driver All Contour's ergonomic products are plug-and-play. If you want to customize your Unimouse, we recommend to download the free driver available at: contourdesign.com/drivers – 9 –...
- Page 10 Battery disposal – 10 –...
- Page 11 • Connect the equipment into an outlet on a circuit Attention! different from that to which the receiver is connected. If you attempt to dismantle your “Unimouse” you will • Consult the dealer or an experienced radio/TV invalidate your warranty.
