Table of Contents
- 1 Box Contents
- 2 Rollermouse Functions
- 3 Keyboard Positioning
- 4 Inserting the Keyboard Risers
- 5 Adjusting the Keyboard Risers
- 6 Connecting to a Computer
- 7 Using the Rollerbar
- 8 Rollerbar Click Force Adjustment
- 9 Click Volume Adjustment
- 10 Change Cursor Speed
- 11 User Settings
- 12 Different Mode Settings
- 13 Changing the ‘Double’ Click Button to Middle
- 14 Wrist Rest
- Download this manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Contour RollerMouse Red
Summary of Contents for Contour RollerMouse Red

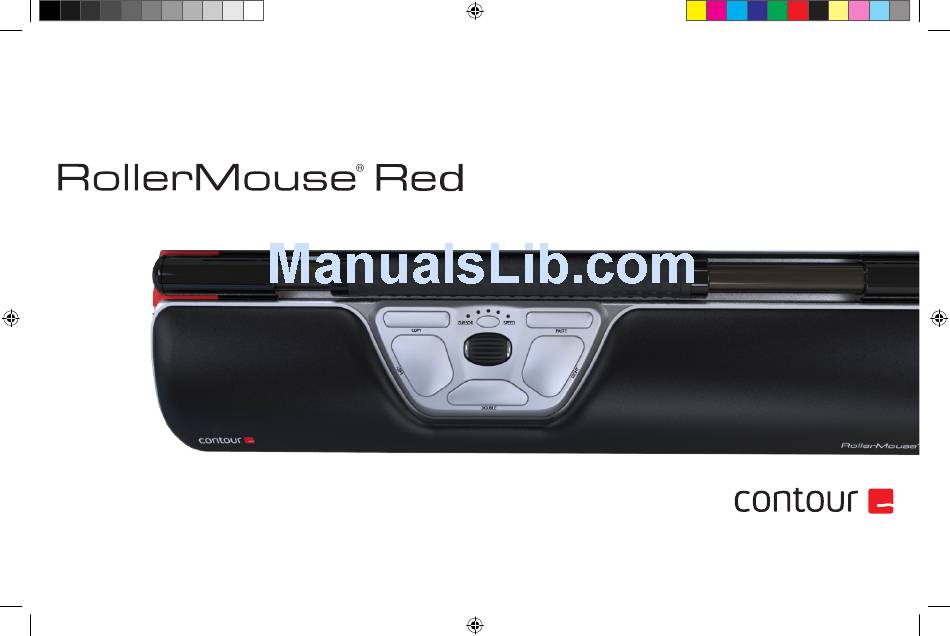

- Page 1 User Guide UK_Red_User_Guide.indd 1 01/06/2017 10.36...
- Page 2 Box contents RollerMouse Red Two short keyboard risers Two long keyboard risers Wrist rest Wrist rest removal key RollerMouse Red user guide UK_Red_User_Guide.indd 2 01/06/2017 10.36...
- Page 3 RollerMouse functions Rollerbar Cursor speed LED Copy Paste Left-click Right-click Scroll wheel “One Touch” double-click For additional mouse features and specific Mac settings, please download our driver at www.contour-design.co.uk. RollerMouse Red user guide UK_Red_User_Guide.indd 3 01/06/2017 10.36...
- Page 4 Positive tilt Balance Keyboard is designed specifically for the RollerMouse Red. The keyboard sits level with the rollerbar and can be easily adjusted to a positive, neutral, or negative tilt.
- Page 5 Inserting the keyboard risers Fit the end of the riser into the slot on the back of the RollerMouse Red. Negative tilt Neutral elevated Neutral flat Adjusting the keyboard risers Line up the grooves of the short and long risers then press the two parts together until you hear them snap into place.
-
Page 6: Connecting To A Computer
Connecting to a computer Using the rollerbar Plug the RollerMouse Red into your computer’s USB port. Allow The rollerbar provides two functions: your computer a few seconds to automatically install it. • Pressing down on the rollerbar performs a left click. - Page 7 LEDs are lit. Note: The Rollerbar click function can be turned off using the above adjustment method, by moving the scroll wheel until all LEDs are lit. RollerMouse Red user guide UK_Red_User_Guide.indd 7 01/06/2017 10.36...
- Page 8 (600 DPI) to fast (2800 DPI). Speed can be identied by the LED lights as shown. 600 DPI 800 DPI 1000 DPI 1200DPI 1400DPI 1600 DPI 1800 DPI 2000 DPI 2400DPI 2800DPI RollerMouse Red user guide UK_Red_User_Guide.indd 8 01/06/2017 10.36...
- Page 9 User settings Different mode settings RollerMouse Red has 3 modes. PC- mode, Mac-mode and HID-mode (For Linux). Use the following key commands to switch settings to best fit your operating system. • Press and hold the buttons simultaneously for two seconds to see the LED lights flash for the respective mode.
- Page 10 To install the wrist rest after removal, snap it into the slot on the front edge of your RollerMouse Red. RollerMouse Red user guide UK_Red_User_Guide.indd 10 01/06/2017 10.36...
- Page 11 Phone: +45 70 27 02 27 - Consult the dealer or an experienced radio/TV technician for help. Email: info@contour-design.com This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
