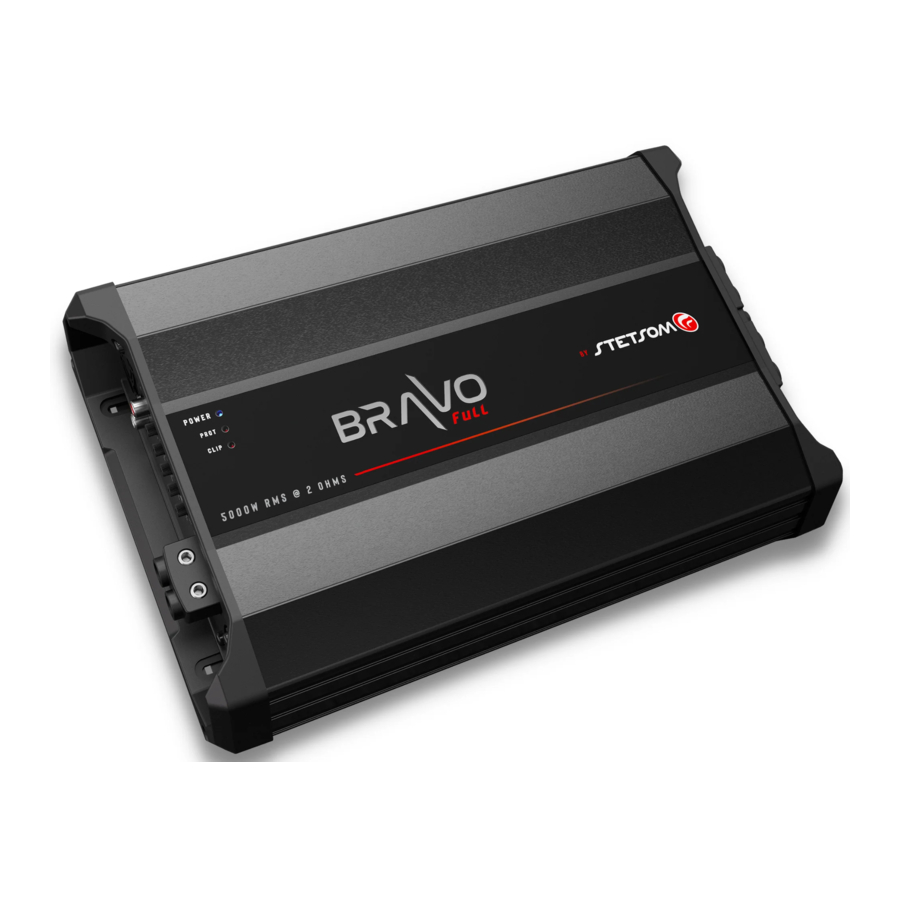

Stetsom Bravo Full 5000 / 8000 Manual

Introduction

This amplifier was developed with cutting-edge technology for those who want high quality sound from audio systems with one or more speakers or even an audio wall system.

Before installing

Please read this manual carefully.

  • All connections must be made with the product turnedOFF.
  • A fuse must be installed between the amplifier and the battery is required to protect against overcurrent. The fuse needs to be installed as close to the battery as possible. Choose an appropriate fuse for the amplifier based on its consumption.
  • Use the wire recommended in this manual to keep cables from overheating cables and to obtain maximum power.
  • Keep the cables as short as possible to increase sound fidelity and avoid potential power losses.
  • Route the installation cables as far away as possible from the original vehicle wiring to prevent interference and noise in your audio system.
  • Perform the installation on a firm surface in a ventilated and dry place.
  • Installation should only be done by a qualified professional.

If you have questions, contact the store where the purchase or installation was done. For more information please contact our Customer Service: BR +55 18 2104-9412.

Input, output and audio controls

Input, output and audio controls

  1. COOLERs: It cools the amplifier. Install in a cool place being careful to not obstruct the air vents.
  2. RCA JACK INPUT: Input of the signal to be amplified. Connect to the radio/ player using high quality shielded RCA cables to prevent unwanted noise.
  3. LEVEL: Level control for the signal at the amplifier's input.
  4. CROSSOVER:
    • HIGH PASS FILTER (H.P.F.):This variable control allows you to select the initial frequency from 10Hz ~ 90Hz that will be reproduced by the amplifier.
    • LOW PASS FILTER (L.P.F.): This variable control allows you to select the final frequency from 90Hz ~ 12KHz that will be reproduced by the amplifier.
  5. BASS BOOST:
    • BASS: Variable control for bass boost from 0dB ~ +10dB.
    • FREQ: Variable control for BASS boost frequency from 30Hz ~ 70Hz.
  6. FLAT KEY: This switch allows you to turn the FLAT mode on or off. Settings made on the CROSSOVER and BOOST controls will be turned off when using this mode.
  7. OUTPUT CONNECTOR (SPEAKERS): MONO output of amplified signal for speakers connection. Check the minimum impedance and polarities before performing the installation.

Power input

Power input

  1. POSITIVE POWER SUPPLY CONNECTOR: Connect to the positive battery terminal of the battery using a minimum 00 AWG cable with a fuse/circuit breaker installed as close to the battery as possible.
  2. REMOTE CONNECTOR (REM): Allows automatic activation of the amplifier when turning on the radio/player. Connect to the remote output of the radio/player using a cable a minimum of 18 AWG.
  3. NEGATIVE POWER SUPPLY CONNECTOR: Connect to the negative terminal of the battery using a cable with a minimum of 00 AWG.

Indicators LED

Indicators LED

Smart protection system

When the protection system detects a failure, the amplifier will turn off and the PROT LED will blink. For each type of failure, the LED will flash a certain number of times indicating the cause, as shown in the table below:

Diagnostic: Short circuit or output overload.
Solution: Check that the speaker cables are well insulated and that the output impedance does not exceed that supported by the amplifier.
Diagnostic: Excessive temperature. When the amplifier reaches approximately 194°F, audio is stopped and the coolers run at maximum speed to speed up the cooling process of the internal components.
Solution: Check if the amplifier is in a ventilated place or if the coolers are not obstructed. Keep the amplifier turned on for a few minutes for the coolers to assist in the cooling process.
Diagnostic: Supply voltage less than 9V.
Solution: Check voltage of battery or power supply.
Diagnostic: Supply voltage greater than 16V.
Solution: Check voltage of battery or power supply.

Installation

Specification of the cables for proper installation:

  • Power connectors (positive/negative) 00 AWG
  • Remote connector 18 AWG
  • Output signal connectors (speakers) 7 AWG

The use of a fuse or circuit breaker is mandatory to protect the system from short circuits and overload. Install them as close to the battery as possible.
warningInstallation should only be done by qualified professionals with the product turned OFF.
Installation - Step 1
Installation - Step 2

Troubleshooting

AMPLIFIER DOES NOT TURN ON

  • Verify that the cables are connected correctly. Make sure all connections have electrical and mechanical contact.
  • Fuses or circuit breakers may be defective or blown. Check the condition of the circuit breakers and make sure they are compatible with the equipment consumption.
  • Make sure that the battery is charged sufficiently for the product to operate.

NO SOUND

  • The cables to the speakers or RCA plugs may not be connected incorrectly or defective.
  • Make sure that theLEVEL control is not at a minimum.

PROT LED FLASHING

  • Make sure that the product's air vents are not blocked and that the product is not overheating.
  • Speakers or cables are shorted. Check speakers, cables and connections.

SOUND DISTORTIONS

  • The speakers may be overloaded or defective, lower the level and then readjust the level. This setting can be adjusted as follows:
    1. On the radio/player, play any musical signal and set the volume to 80% of the maximum (if the maximum volume of the radio /player is 45 (100%), set to 36 (80%).
    2. On the amplifier, begin with the LEVEL control at minimum, increase gradually until the LED CLIP starts to flash. Slowly decrease the LEVEL until the led goes out completely.

WEAK OF BASS

  • Cables of the speakers may be reversed and (speakers out-of-phase).

NOISE AND FAILURE IN SOUND

  • Make sure that the installation is not close to the vehicle's original wiring as it may cause interference and noise in the audio signal.
  • Create a separate power connection for the sound system. Use a fuse/ circuit breaker as close to the battery as possible for protection.
  • Make a good grounding for the amplifier. To do this, remove the paint from the vehicle chassis at the desired point. Attach the wire using a ground terminal. To prevent oxidation, isolate with paint.
  • Do not loop the ground. Avoid using multiple grounds. If possible, use a star connection, so all the grounds run from a single point.

warningThe data measured are based on STETSOM laboratory equipment. Test reference in frequency from 60hz to 1Khz with THD + N at ≤1% in impedances as indicated in each measurement. The electronic components and the manufacturing process may present manufacturing variations, thus leading to a variation in the measurements made.
informationAny updates made in this manual will be available for customers to consult free of charge on the brand's site.
It is recommended that the updated manual be consulted whenever needed.
Images contained in this manual are merely illustrative and may differ from the actual product.

Technical specifications

BRAVO FULL 5000

Minimum output impedance: 1 OHM 2 OHMs
Number of channels: 1
Power output @ 14.4V: 5300W RMS @ 1 Ohm
3300W RMS @ 2 Ohms
5300W RMS @ 2 Ohms
3000W RMS @ 4 Ohms
Power output @ 12.6V: 5000W RMS @ 1 Ohm
2800W RMS @ 2 Ohms
5000W RMS @ 2 Ohms
2600W RMS @ 4 Ohms
Minimum input sensitivity: 200mV
Signal to noise ratio: >90dB
Frequency response (-3dB) 10Hz ~ 12KHz
Crossover low pass: 90Hz ~ 12KHz
Crossover high pass: 10Hz ~ 90Hz
Bass boost: Freq: 30Hz ~ 70 Hz
Boost: 0dB ~ +10dB
Input impedance: 12K Ohms
Supply voltage: 9V ~ 16V DC
Musical consumption: 242A 227A
Bass consumption: 485A 445A
Dimensions (H x W x L): 3.14" x 9.11" x 13.11"
Weight: 9.36 lb

BRAVO FULL 8000

Minimum output impedance: 1 OHM 2 OHMs
Number of channels: 1
Power output @ 14.4V: 8600W RMS @ 1 Ohm
5100W RMS @ 2 Ohms
8700W RMS @ 2 Ohms
4400W RMS @ 4 Ohms
Power output @ 12.6V: 8000W RMS @ 1 Ohm
4400W RMS @ 2 Ohms
8000W RMS @ 2 Ohm
4200W RMS @ 4 Ohms
Minimum input sensitivity: 200mV
Signal to noise ratio: >90dB
Frequency response (-3dB) 10Hz ~ 12KHz
Crossover low pass: 90Hz ~ 12KHz
Crossover high pass: 10Hz ~ 90Hz
Bass boost: Freq: 30Hz ~ 70 Hz
Boost: 0dB ~ +10dB
Input impedance: 14K Ohms 13K Ohms
Supply voltage: 9V ~ 16V DC
Musical consumption: 370A 360A
Bass consumption: 740A 720A
Dimensions (H x W x L): 3.14" x 9.11" x 16.49"
Weight: 13.2 lb

QUESTIONS AND ADVICE:
STETSOM offers Customer Services to answer questions and give advice about their products and services. Please contact us through the channels:
Phone: BR +55 18 2104-9412
E-mail: suporte@stetsom.com.br
Site: www.stetsom.com
