Nikon AF-P DX NIKKOR 70-300mm f/4.5-6.3G ED VR Manual

Introduction

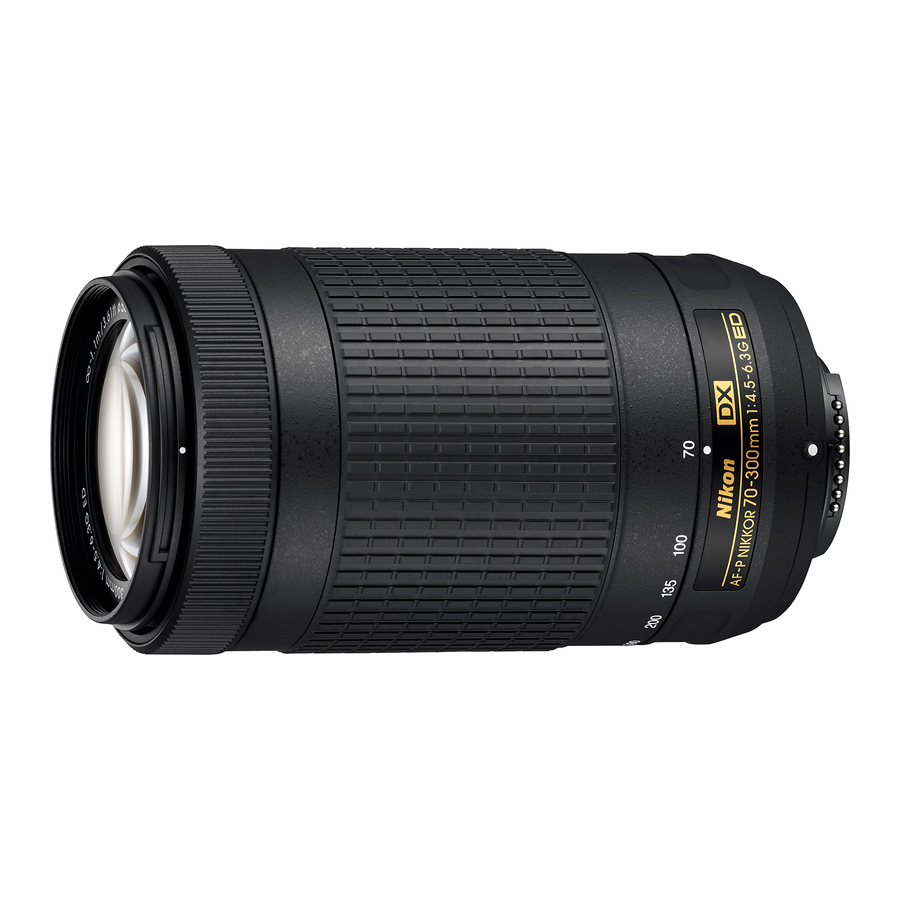

The illustrations in these instructions show an AF-P DX NIKKOR 70–300 mm f/4.5–6.3G ED VR lens.

Note: DX lenses are for use with Nikon DX-format digital single-lens reflex cameras. The angle of view of a lens on a DX-format camera is equivalent to that of a lens with a focal length about 1.5 × longer mounted on a 35 mm format camera.

This lens does not support D4-series, D3-series, D2-series, D1-series, D800series, D700, D610, D600, D300-series, D200, D100, D90, D80, D70-series, D60, D50, D40-series, D7000, D5100, D5000, D3200, D3100 or D3000 digital SLR cameras or film SLR cameras. When using it with a D5500, D5300, or D3300, be sure the camera firmware has been updated to the latest version. If the camera is off or the standby timer has expired, the focus ring can not be used to focus the camera and rotating the zoom ring will cause the subject to go out of focus. Before focusing, turn the camera on or restart the standby timer by pressing the shutter-release button halfway.
Autofocus and rangefinder features are supported at all focal lengths. When using this lens, ignore any sections of the camera manual listing autofocus and rangefinder restrictions for lenses with a maximum aperture slower than f/5.6.

Parts of the Product

1. Lens hood mounting mark
2. Focus ring
3. Zoom ring
4. Focal length scale
5. Focal length mark
6. Lens mounting mark
7. CPU contacts
8. Lens hood *
9. Lens hood lock mark
10. Lens hood alignment mark

* Optional.

Attaching and Removing the Unit

Attaching the Lens

1. Turn the camera off and remove the camera body cap.

2. Remove the rear lens cap.

3. Attach the lens.
   Keeping the lens mounting mark aligned with the mounting mark on the camera body, position the lens in the camera's bayonet mount and then rotate the lens counter-clockwise until it clicks into place with the lens mounting mark at the top.

Removing the Lens

1. Turn the camera off.
2. Remove the lens.
   To remove the lens, press the camera lens release button while turning the lens clockwise.

Focus

Focus mode is determined by the camera focus mode. See the camera manual for information on camera focus mode selection. Users of D810series, Df, D750, D7200, D7100, or D5200 cameras should note that if the standby timer is allowed to expire, the focus position will change when the timer is restarted. Refocus before shooting. Longer standby times are recommended for manual focus and in other situations in which you may not release the shutter immediately after focusing.

Autofocus
Focus is adjusted automatically when the camera is in autofocus mode. The focus ring can also be used to focus the camera if the shutter-release button is kept pressed halfway (or if the AF-ON button is kept pressed); this is known as "autofocus with manual override" (M/A). Autofocus will resume when the shutter-release button is pressed halfway (or the AF-ON button is pressed) a second time. Note that touching the focus ring while autofocus is in effect will change the focus position.

Manual Focus
When the camera is in manual focus mode, focus can be adjusted by rotating the lens focus ring.

Zoom

Before focusing, rotate the zoom ring to adjust the focal length and frame the photograph.

Depth of Field

If the camera offers depth-of-field preview, depth of field can be previewed in the viewfinder.

Aperture

Aperture is adjusted using camera controls.

Built-in Flash Units

When using the built-in flash on cameras equipped with a built-in flash unit, remove the lens hood to prevent vignetting (shadows created where the end of the lens obscures the built-in flash).

Vibration Reduction

(VR, AF-P DX NIKKOR 70–300 mm f/4.5–6.3G ED VR Only)
Vibration reduction (VR) is available when an AF-P DX NIKKOR 70–300m m f/4.5–6.3G ED VR lens is mounted on the camera and the shutter-release button is pressed halfway. Vibration reduction can be turned on and off using the Optical VR option in the camera menus; when on, it reduces blur caused by camera shake, allowing shutter speeds up to 4.0 stops slower than would otherwise be the case, increasing the range of shutter speeds available. The effects of VR on shutter speed are measured according to Camera and Imaging Products Association (CIPA) standards; FX-format lenses are measured using FX-format digital cameras, DX-format lenses using DX-format cameras. Zoom lenses are measured at maximum zoom.

Using Vibration Reduction: Notes

• When using vibration reduction, press the shutter-release button halfway and wait for the image in the viewfinder to stabilize before pressing the shutter-release button the rest of the way down.
• When vibration reduction is active, the image in the viewfinder may be blurred after the shutter is released. This does not indicate a malfunction.
• When the camera is panned, vibration reduction applies only to motion that is not part of the pan (if the camera is panned horizontally, for example, vibration reduction will be applied only to vertical shake), making it much easier to pan the camera smoothly in a wide arc.
• If the camera is equipped with a built-in flash, vibration reduction will be disabled while the flash charges.
• Vibration reduction is generally recommended when the camera is mounted on a tripod, although you may prefer to turn it off depending on shooting conditions and the type of tripod.
• Vibration reduction is recommended when the camera is mounted on a monopod.

The Optional Hood

The lens hoods protect the lens and block stray light that would otherwise cause flare or ghosting.

Attaching the Hood
Align the lens hood mounting mark ( ) with the lens hood alignment mark ( ) and then rotate the hood ( ) until the mark is aligned with the lens hood lock mark ( )
When attaching or removing the hood, hold it near the symbol on its base and avoid gripping it too tightly. Vignetting may occur if the hood is not correctly attached. The hood can be reversed and mounted on the lens when not in use. When the hood is reversed, it can be attached and removed by rotating it while holding it near the lock mark ( ).

Product Care

• Do not pick up or hold the lens or camera using only the lens hood.
• Keep the CPU contacts clean.
• Use a blower to remove dust and lint from the lens surfaces. To remove smudges and fingerprints, apply a small amount of ethanol or lens cleaner to a soft, clean cotton cloth or lens-cleaning tissue and clean from the center outwards using a circular motion, taking care not to leave smears or touch the glass with your fingers.
• Never use organic solvents such as paint thinner or benzene to clean the lens.
• The lens hood or NC filters can be used to protect the front lens element.
• Attach the front and rear caps before placing the lens in its lens case.
• If the lens will not be used for an extended period, store it in a cool, dry location to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphor moth balls.
• Keep the lens dry. Rusting of the internal mechanism can cause irreparable damage.
• Leaving the lens in extremely hot locations could damage or warp parts made from reinforced plastic.

Supplied Accessories

• 58 mm snap-on Front Lens Cap LC-58
• Rear Lens Cap

Compatible Accessories

• 58 mm screw-on filters
• Bayonet Hood HB-77
• Lens Case CL-1020
• Rear Lens Cap LF-4

Specifications

Nikon reserves the right to change the specifications of the hardware described in this manual at any time and without prior notice.

For Your Safety

• Do not disassemble or modify. In the event of malfunction, the product should be repaired only by a qualified technician. Should the product break open as the result of a fall or other accident, avoid touching exposed parts. Failure to observe these precautions could result in electric shock or other injury.
• Turn the camera off immediately in the event of malfunction. Should you notice smoke or an unusual smell coming from the equipment, immediately unplug the AC adapter and remove the camera battery, taking care to avoid burns. Continued operation could result in fire or injury. After removing the battery, take the equipment to a Nikon-authorized service center for inspection.
•
  Keep dry. Do not expose the product to water or handle with wet hands. Failure to observe this precaution could result in fire or electric shock.
• Do not use in the presence of flammable gas. Operating the equipment at filling stations or in the presence of propane or other flammable gas or dust could result in explosion or fire.
• Do not look at the sun through the lens or the camera viewfinder. Viewing the sun or other bright light source through the lens or viewfinder could cause permanent visual impairment.

• Keep out of reach of children. Failure to observe this precaution could result in injury or product malfunction.
• Do not focus sunlight through the lens. Sunlight focused through the lens could cause fire. When shooting backlit subjects keep the sun well out of the frame; if the lens will not be used for an extended period, replace the lens caps and store out of direct sunlight.
• Do not overheat. Do not leave the product in locations exposed to extremely high temperatures, such as in an enclosed vehicle in direct sunlight, or wrap the product in a towel or handkerchief or otherwise cover the product while it is in use. Failure to observe these precautions could result in fire or product malfunction.
