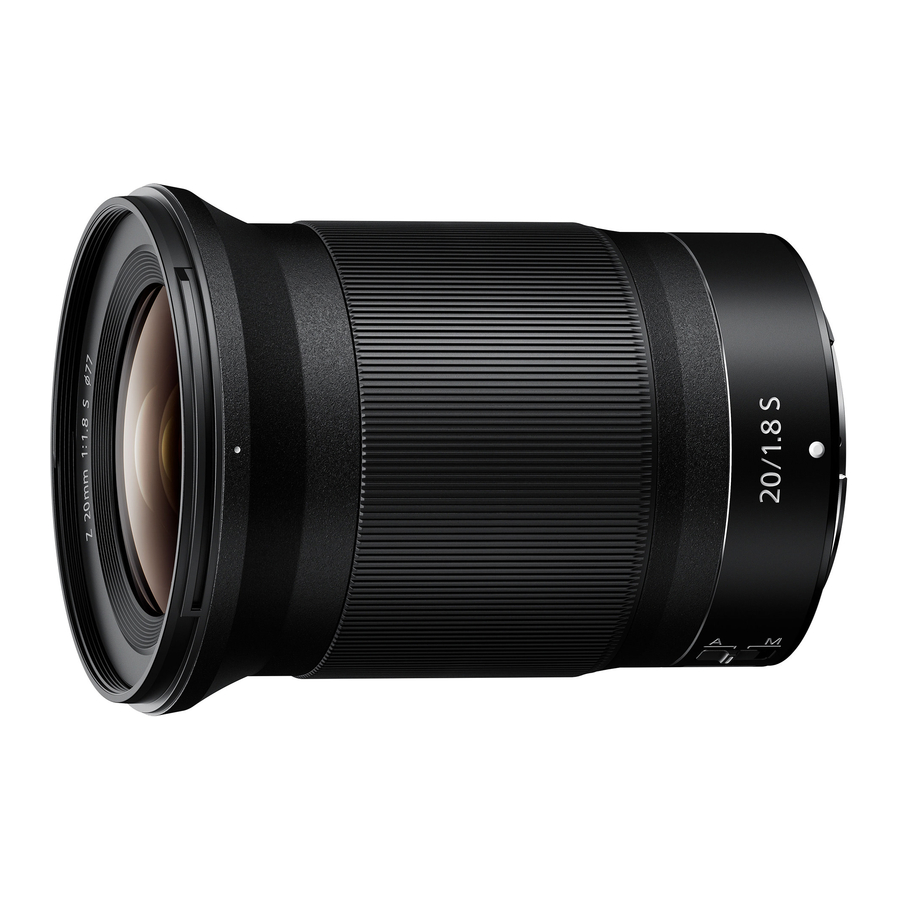

Nikon NIKKOR Z 20mm f/1.8 S - Camera Lens Manual and Review Video

Using the Lens

Before using this product, please read these instructions carefully. You will also need to consult the camera manual.

• This lens is intended exclusively for use with mirrorless cameras featuring a Nikon Z mount.

Parts of the Lens: Names and Functions
Refer to the diagram on the left edge of this sheet.

1	Lens hood mounting mark	Use when attaching the lens hood.	See
2	Control ring	Autofocus mode selected: In autofocus mode, rotate the ring to adjust a setting such as Focus (M/A) or Aperture assigned using the camera. For more information, see the description of Custom controls/Custom control assignment/Custom controls (shooting) in the camera manual.	—
		Manual focus mode selected: Rotate the ring to focus.	—
3	Lens mounting mark	Use when mounting the lens on the camera.	See
4	Rubber lens-mount gasket	—	—
5	CPU contacts	Used to transfer data to and from the camera.	—
6	Focus-mode switch	Choose A for autofocus, M for manual focus. Note that regardless of the setting chosen, focus must be adjusted manually when manual focus mode is selected using camera controls.	—
7	Lens hood	Lens hoods block stray light that would otherwise cause flare or ghosting. They also serve to protect the lens.
8	Lens hood lock mark	Use when attaching the lens hood.	See
9	Lens hood alignment mark
10	Lens cap (front cap)	—	—
11	Lens cap (rear cap)	—	—

1. Attachment and Removal
   Attaching the Lens
   1. Turn the camera off, remove the body cap, and detach the rear lens cap.
   2. Position the lens on the camera body, keeping the mounting mark on the lens aligned with the mounting mark on the camera body, and then rotate the lens counterclockwise until it clicks into place.
      Removing the Lens
   3. Turn the camera off.
   4. Press and hold the lens release button while turning the lens clockwise.
2. Attaching and Removing the Lens Hood
   Align the lens hood mounting mark with the lens hood alignment mark and then rotate the hood until the mounting mark is aligned with the lens hood lock mark .
   To remove the hood, reverse the above steps.

   When attaching or removing the hood, hold it near the lens hood alignment mark and avoid gripping the front of the hood too tightly. The hood can be reversed and mounted on the lens when not in use.

When Shooting Using Cameras with Built-in Flash
Shadows will be visible in images when using the camera's built-in flash because the light emitted from the flash may be obstructed by the lens.

When the Lens Is Attached
The focus position may change if you turn the camera off and then on again after focusing. If you have focused on a pre-selected location while waiting for your subject to appear, we recommend that you do not turn the camera off until the picture is taken.

Precautions for Use

• Do not pick up or hold the lens or camera using only the lens hood.
• Keep the CPU contacts clean.
• Should the rubber lens-mount gasket be damaged, cease use immediately and take the lens to a Nikon-authorized service center for repair.
• Replace the lens caps when the lens is not in use.
• To protect the interior of the lens, store it out of direct sunlight.
• Do not leave the lens in humid locations or in locations in which it may be exposed to moisture. Rusting of the internal mechanism can cause irreparable damage.
• Do not leave the lens next to open flames or in other extremely hot locations. Extreme heat could damage or warp exterior parts made from reinforced plastic.
• Rapid changes in temperature may cause damaging condensation inside and outside the lens. Before taking the lens from a warm to a cold environment or vice versa, place it in a bag or plastic case to slow the change in temperature.
• We recommend that you place the lens in its case to protect it from scratches during transport.

Lens Care

• Removing dust is normally sufficient to clean the glass surfaces of the lens.
• Smudges, fingerprints, and other oily stains can be removed from the lens surface using a soft, clean cotton cloth or lens cleaning tissue lightly dampened with a small amount of ethanol or lens cleaner. Wipe gently from the center outwards in a circular motion, taking care not to leave smears or touch the lens with your fingers.
• Never use organic solvents such as paint thinner or benzene to clean the lens.
• Neutral Color (NC) filters (available separately) and the like can be used to protect the front lens element.
• If the lens will not be used for an extended period, store it in a cool, dry location to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphor moth balls.

Accessories

Supplied Accessories

• LC-77B Lens Cap (front cap)
• LF-N1 Lens Cap (rear cap)
• HB-95 Lens Hood
• CL-C1 Lens Case

Using the Lens Case

• The case is intended to protect the lens from scratches, not from falls or other physical shocks.
• The case is not water resistant.
• The material used in the case may fade, bleed, stretch, shrink, or change color when rubbed or wet.
• Remove dust with a soft brush.
• Water and stains can be removed from the surface with a soft, dry cloth. Do not use alcohol, benzene, thinner, or other volatile chemicals.
• Do not store in locations exposed to direct sunlight or high temperatures or humidity.
• Do not use the case to clean the monitor or lens elements.
• Be careful that the lens does not fall from the case during transport.
  Material: Polyester

Compatible Accessories
77 mm screw-on filters
Filters

• Use only one filter at a time.
• Remove the lens hood before attaching filters or rotating circular polarizing filters.
