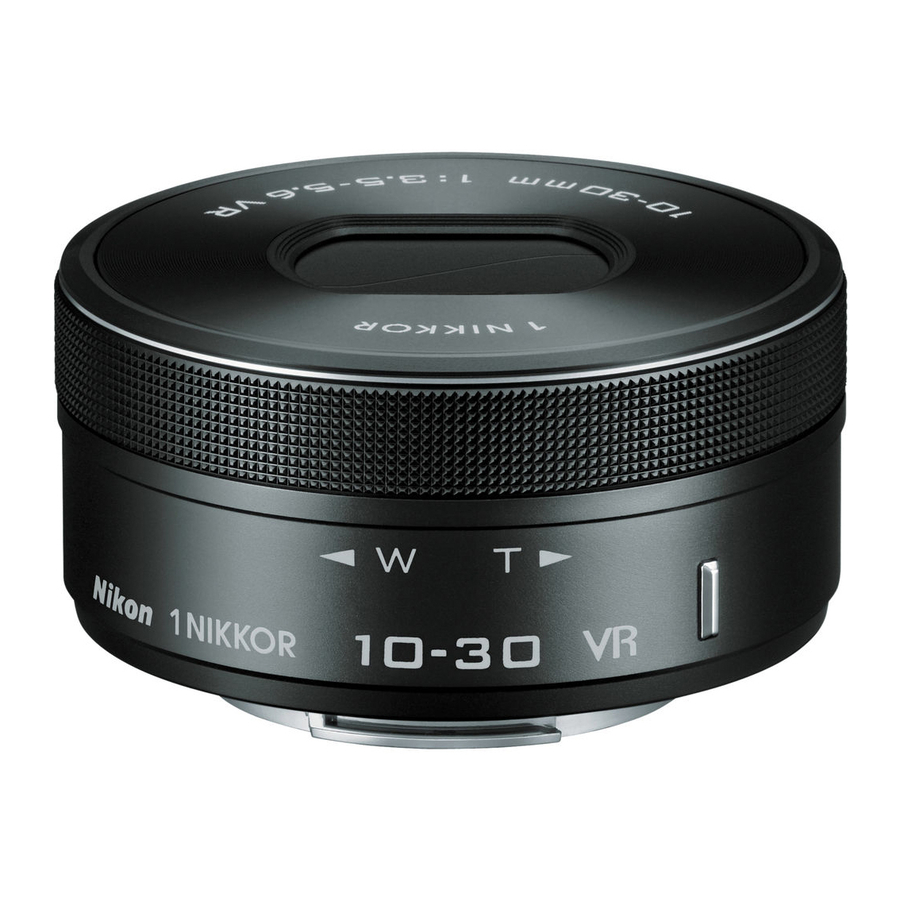

Nikon 1 NIKKOR VR - 10-30mm f/3.5-5.6 PD-ZOOM Manual

Overview

Figure 1

Figure 2

Figure 3

Before using this product, please carefully read both these instructions and the camera manual.

Note:
1 NIKKOR lenses are exclusively for Nikon 1 interchangeable lens format digital cameras. The angle of view is equivalent to a 35 mm format lens with a focal length about 2.7 × longer.

For Your Safety

Do not disassemble. Touching the internal parts of the camera or lens could result in injury. In the event of malfunction, the product should be repaired only by a qualifi ed technician. Should the product break open as the result of a fall or other accident, remove the camera battery and/or disconnect the AC adapter and then take the product to a Nikon-authorized service center for inspection. Turn the camera off immediately in the event of malfunction. Should you notice smoke or an unusual smell coming from the equipment, immediately unplug the AC adapter and remove the camera battery, taking care to avoid burns. Continued operation could result in fi re or injury. After removing the battery, take the equipment to a Nikon authorized service center for inspection. Do not use in the presence of fl ammable gas. Operating electronic equipment in the presence of fl ammable gas could result in explosion or fi re. Do not look at the sun through the lens or the camera viewfi nder. Viewing the sun or other bright light source through the lens or viewfi nder could cause permanent visual impairment. Keep out of reach of children. Failure to observe this precaution could result in injury. Observe the following precautions when handling the lens and camera: Keep the lens and camera dry. Failure to observe this precaution could result in damage to the product, fi re, or electric shock. Do not handle the lens or camera with wet hands. Failure to observe this precaution could result in electric shock. Keep the sun well out of the frame when shooting backlit subjects. Sunlight focused into the camera when the sun is in or close to the frame could cause a fi re. If the lens will not be used for an extended period, be sure that the cover is closed or that the lens is stored out of direct sunlight. If left in direct sunlight, the lens could focus the sun's rays onto fl ammable objects, causing fire. Do not carry tripods with a lens or camera attached. You could trip or accidentally strike others, resulting in injury. Do not leave the product where it will be exposed to extremely high temperatures, such as in an enclosed automobile or in direct sunlight. Failure to observe this precaution could cause damage or fi re.

Notice for customers in Canada
CAN ICES-3 B / NMB-3 B

Parts of the Lens

(Figure 1)

1. Lens cover
2. Zoom ring
3. Lens mounting mark
4. CPU contacts

Attachment and Removal

See the camera manual. Be sure to turn the camera off before attaching or removing the lens, and be sure that the lens is retracted and the cover closed before removal (Figure 2).

Using the Lens

This retractable lens features power extension/retraction and electric power drive zoom. When the camera is turned on, the lens cover opens and the lens extends automatically (Figure 3); when the camera is turned off, the lens cover closes and the lens retracts automatically (Figure 2). Zoom is controlled by rotating the zoom ring.

Using the Flash

Vignetting (shadows created where the lens obscures the fl ash) or loss of peripheral illumination may occur at some focus or shooting distances in photographs taken with a fl ash.

Other Settings

Use the camera to:

• Adjust aperture
• Control focus
• Choose a vibration reduction mode (NORMAL/ACTIVE/OFF). For information on the optical vibration reduction modes supported by the camera, see the camera manual.

Lens Care

• Keep the CPU contacts clean.
• Use a blower to remove dust and lint from the lens surfaces. To remove smudges and fi ngerprints, apply a small amount of ethanol or lens cleaner to a soft, clean cotton cloth or lens-cleaning tissue and clean from the center outwards using a circular motion, taking care not to leave smears or touch the glass with your fi ngers.
• Never use organic solvents such as paint thinner or benzene to clean the lens.
• When the lens is not in use, attach the rear cap and ensure that the lens is retracted and the cover closed.
• If the lens will not be used for an extended period, store it in a cool, dry location to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphor moth balls.
• Keep the lens dry. Rusting of the internal mechanism can cause irreparable damage.
• Leaving the lens in extremely hot locations could damage or warp parts made from reinforced plastic.
• Do not touch the lens cover. Failure to observe this precaution could result in product malfunction.

Supplied Accessories

• Rear Lens Cap LF-N1000

Compatible Accessories

• Semi-soft Case CL-N101

Specifications

• Type: 1 mount lens
• Focal length: 10–30 mm
• Maximum aperture: f/3.5–5.6
• Lens construction: 9 elements in 7 groups (including 4 aspherical lens elements, 1 ED lens element, and HRI lens elements)
• Angle of view: 77°–29° 40'
• Vibration reduction: Lens shift using voice coil motors (VCMs)
• Minimum focus distance: 0.2 m (0.7 ft) from focal plane at all zoom positions
• Diaphragm blades: 7 (rounded diaphragm opening) • Diaphragm: Fully automatic • Aperture range:
• 10 mm focal length: f/3.5–f/16
• 30 mm focal length: f/5.6–f/16
• Dimensions: Approx. 58 mm diameter × 28 mm (distance from camera lens mount fl ange when lens is retracted)
• Weight: Approx. 85 g (3.0 oz)

Nikon reserves the right to change the specifi cations of the hardware described in this manual at any time and without prior notice.
