- Page 1 Fiido D11 User Manual SHENZHEN QLHX TECHNOLOGY CO., LTD. No. 60, Dawei area 1, Longxin Community, Baolong street, Longgang District, Shenzhen Made in China https://www.fiido.com email：support01@fiido.com...
- Page 2 Fiido Electric Bicycle Catalogue 1．Safety information 2．Bike diagrams 3．Installation instructions 4．Folding instructions 5．Specifications...
- Page 3 1．Note This manual includes important safety, performance and service information. Please make sure you have read the following warnings before you use our product for the first time. a) If you lend your electric bicycle to other people, please let the user read this manual, it could be helpful to decrease the risk of accident. b) Please wear a suitable and safe helmet when riding, please wear clothes with fluorescent and reflective stripes when you ride at night.

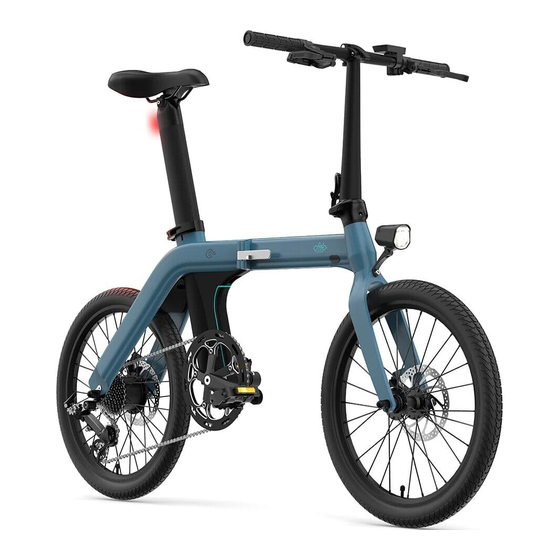

- Page 4 2． Bike diagrams 1.Removable battery 5.Valve 9.Chain 13.Handle bar 17.Brake disc 2.Quick release 6.Folding system 10.Chain wheel 14.Stem 3.Brake disc 7.Charging port 11.Pedal 15.Folding system 4.Hub motor 8.Controller box 12.Crank 16.Headlight...
- Page 5 １ 1.Brake power off system 10.Speed 4.Power on/off button 7.Power off brake 2.Light/horn button 11.Electric assist gear 5.Power adjustment 8.Throttle 3.Horn 12.Odometer 6.Thumb shifter 9.Battery Level (Note: When not used for 10 minutes, the bike is shut down automatically when the bike is stationary.) 13.Battery charging port 14.On/Off...
- Page 6 3．Installation instructions 1. Unfold the D11 bike frame to straightened position and tighten the frame folding handle and safety clasp. 2. Unfold the handle bar tube to the upper position, lock the raised tube into position, and tighten the safety clasp. Adjust the T-handle bar into riding position 3.
- Page 7 Step 2.Open up the lock at the base of the steering tube, then gently fold down the tube and handle bar. Step 3. Open up the lock at in the centre of the bike frame, and then fold the D11 in half.
- Page 8 5．Specifications Name Specification Electric Bike System FIIDO System Electric Motorcycle Support Power Assist System Support Max Load weight 120kg Maximum Speed 25km/h Maximum Range Power assisted model up to 80-100KM Battery High quality lion battery 36V 11.6Ah Battery adaptation DC 42V 2A...
