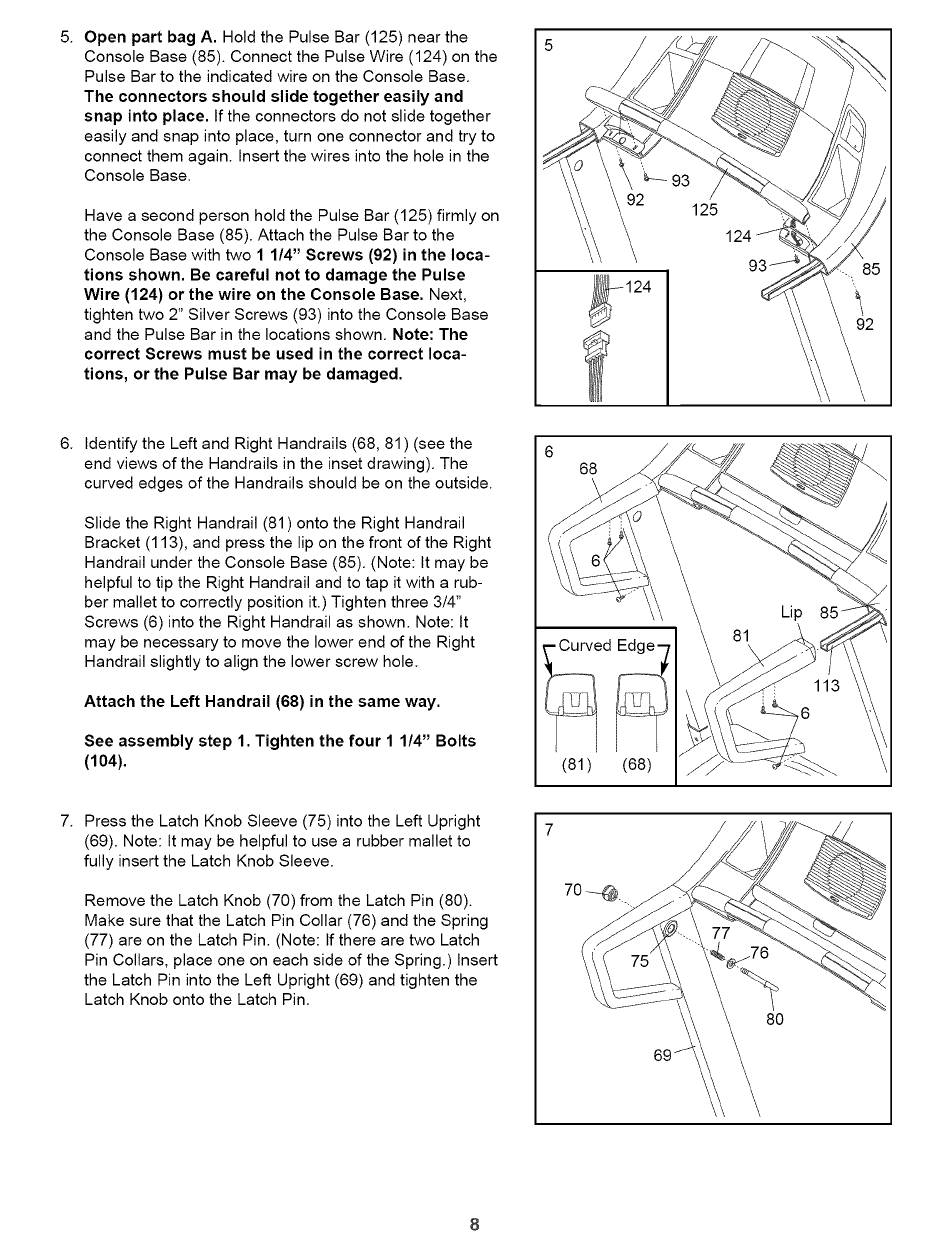

5. Openpart bagA. HoldthePulseBar(125)nearthe
Console Base(85).Connect thePulse Wire(124)onthe
Pulse Barto theindicated w ireontheConsole Base.
Theconnectors shouldslide togethereasilyand
snapinto place.If theconnectors do notslidetogether
easilyandsnapintoplace, t urnoneconnector andtryto
connect t hemagain.Insert t hewiresintotheholeinthe
Console Base.
Have a second person holdthePulseBar(125) f irmlyon
theConsole Base(85).Attach the Pulse Bartothe
Console Basewithtwo1 1/4"Screws(92)in the loca-
tions shown.Becarefulnot to damagethe Pulse
Wire(124)orthe wireon the ConsoleBase.Next,
tighten two2"SilverScrews (93)intotheConsole Base
andthePulse Barinthelocations s hown. N ote:The
correctScrewsmustbeusedin the correctloca-
tions, or the PulseBarmaybe damaged.
92
125
6. Identify the LeftandRightHandrails ( 68,81)(seethe
endviews of theHandrails i ntheinset d rawing). The
curved edges oftheHandrails s hould beontheoutside.
Slidethe RightHandrail (81)ontotheRightHandrail
Bracket (113), a ndpresstheliponthefrontofthe Right
Handrail under theConsole Base(85).(Note: I t maybe
helpful t o tiptheRightHandrail andtotapit witha rub-
bermallet t ocorrectly position it.)Tighten three3/4"
Screws (6)intotheRightHandrail asshown. N ote: t t
maybenecessary t o movethelower endofthe Right
Handrail slightly toalignthelowerscrewhole.
Attach the Left Handrail (68) in the same way.
See assembly step 1. Tighten the four I 1/4" Bolts
(104).
6
68
- Curved Edge
(81) (68)
7. Press the Latch Knob Sleeve (75) into the Left Upright
(69). Note: It may be helpful to use a rubber mallet to
fully insert the Latch Knob Sleeve.
Remove the Latch Knob (70) from the Latch Pin (80).
Make sure that the Latch Pin Collar (76) and the Spring
(77) are on the Latch Pin. (Note: If there are two Latch
Pin Collars, place one on each side of the Spring.) Insert
the Latch Pin into the Left Upright (69) and tighten the
Latch Knob onto the Latch Pin.
80
