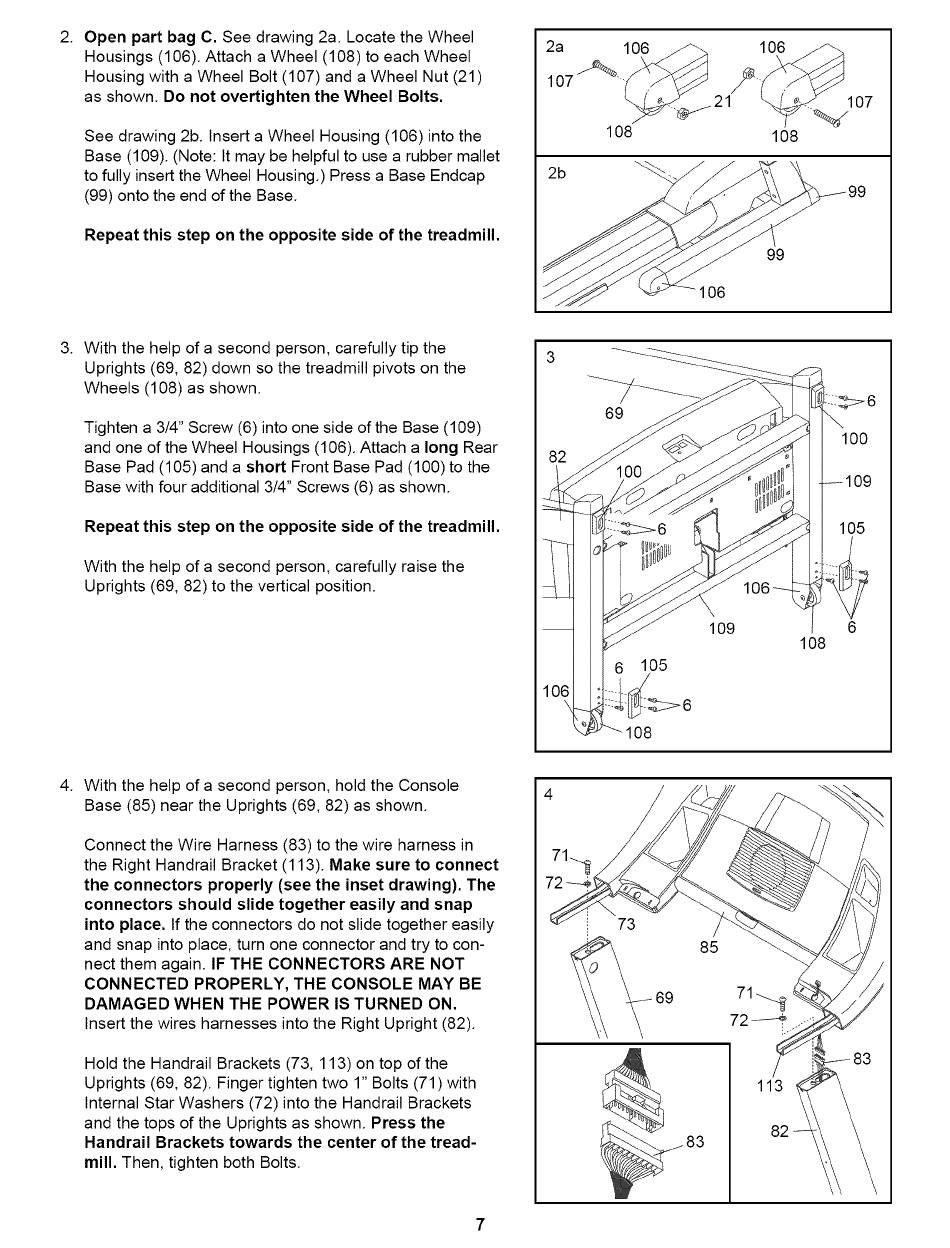

2. Openpart bagC.Seedrawing 2a.Locate theWheel
Housings ( 106). A ttacha Wheel ( 108)toeachWheel
Housing w itha Wheel B olt(107)anda Wheel N ut(21)
as shown. D onot overtighten the WheelBolts.
Seedrawing 2b.Insert a Wheel H ousing (106)intothe
Base(109). ( Note: I tmaybehelpful tousea rubber m allet
tofullyinsert t heWheel H ousing.) Press a BaseEndcap
(99)ontotheendoftheBase.
Repeat this step on the opposite side of the treadmill.
108
2b _.
106
106
108
99
107
3. With the help of a second person, carefully tip the
Uprights (69, 82) down so the treadmill pivots on the
Wheels (108) as shown.
Tighten a 3/4" Screw (6) into one side of the Base (109)
and one of the Wheel Housings (106). Attach a long Rear
Base Pad (105) and a short Front Base Pad (100) to the
Base with four additional 3/4" Screws (6) as shown.
Repeat this step on the opposite side of the treadmill.
With the help of a second person, carefully raise the
Uprights (69, 82) to the vertical position.
69
105
I08
109
106
100
105
6
108
4. With the help of a second person, hold the Console
Base (85) near the Uprights (69, 82) as shown.
Connect the Wire Harness (83) to the wire harness in
the Right Handrail Bracket (113). Make sure to connect
the connectors properly (see the inset drawing). The
connectors should slide together easily and snap
into place. If the connectors do not slide together easily
and snap into place, turn one connector and try to con-
nect them again. IF THE CONNECTORS ARE NOT
CONNECTED PROPERLY, THE CONSOLE MAY BE
DAMAGED WHEN THE POWER IS TURNED ON.
Insert the wires harnesses into the Right Upright (82).
Hold the Handrail Brackets (73, 113) on top of the
Uprights (69, 82). Finger tighten two 1" Bolts (71) with
Internal Star Washers (72) into the Handrail Brackets
and the tops of the Uprights as shown. Press the
Handrail Brackets towards the center of the tread-
mill. Then, tighten both Bolts.
4
73
113
82
