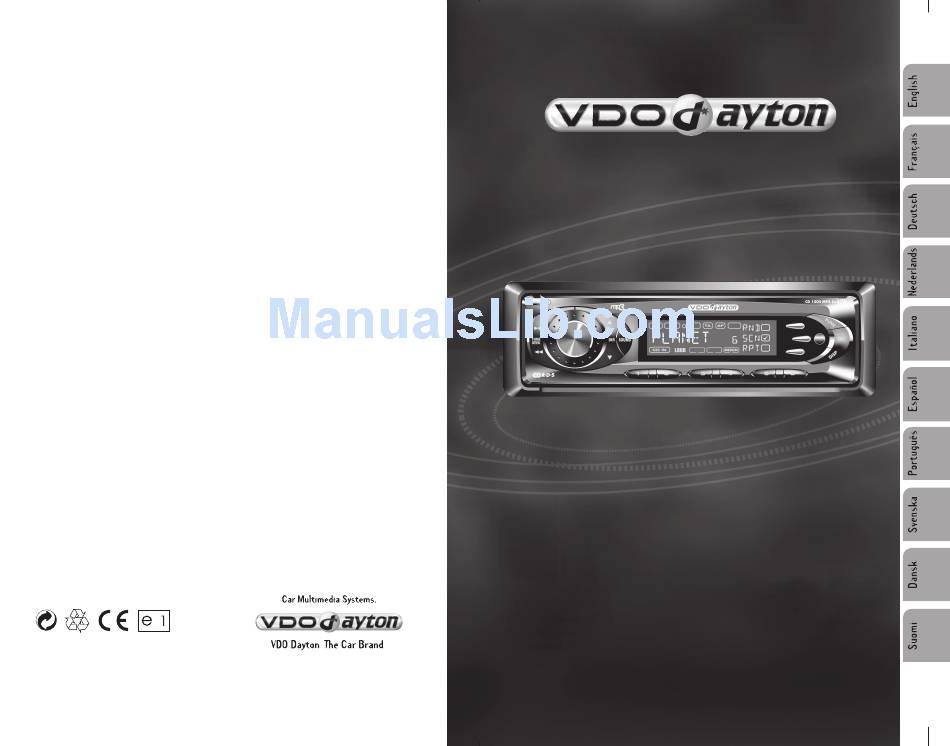

- Page 1 CD 1404 MP3 CD 1504 MP3 User manual Mode d’emploi Bedienungsanleitung Gebruiksaanwijzing Istruzioni d’uso Instrucciones de manejo Modo de emprego Bruksanvisning Betjeningsvejledning Käyttöohje www.vdodayton.com...
-
Page 4: Table Of Contents
If this happen, let the unit settles to the car BEFORE YOU START... ambient temperature before it sets back to Thank you for purchase this product which normal operation. has been designed and manufactured to the highest standards and subjected to rigorous INSTALLATION testing. -
Page 5: Using The Detached Panel
DIN FRONT-MOUNT (Method A) Installation of the unit Remove the outer rim around the front panel and the side springs. Select a 1. Metal Sleeve position where the screw holes of the Install the metal sleeve in the mounting bracket and the screw holes of dashboard. - Page 6 Softkey function selection mode OPERATION Short press FUNCTION selection button (23) on desired mode can change the displaying from F1 to F2. Main Softkey functions : Tuner CD / MP3 Label function Label function Label function Band Random play F1- Key 1 Frequency Scan Track scan F1- Key 2...
-
Page 7: General Operation
GENERAL OPERATION FLAT CLASSIC ROCK DSP OFF ON / OFF Switch on the unit by pressing button (3) Activating the DSP overrides the prior when system is on, press POWER selected Bass/Treble settings. button (3) to turn off the unit. B/. -
Page 8: Radio Operation
RADIO OPERATION RDS (RADIO DATA SYSTEM) OPERATION The RDS data are the PI, PS, TP, PTY, TA BAND SELECTION and AF data. At tuner mode, press softkey button F1 (7) shortly to select the desired band. PI: Program Identification Code The reception band will change in the Code for identifying program following order:... - Page 9 Long press on TA button F1 (9) allows Preset number PTY MUSIC group ON/OFF selection of TA LOCAL / TA POP M, ROCK M DISTANT mode. EASY M, LIGHT M TA LOCAL will only allow traffic CLASSICS, OTHER M announcement from strong station to come JAZZ, COUNTRY through.
-
Page 10: Cd Operation
d) MASK DPI or MASK ALL - MASK DPI mode: PLAY TRACKS IN RANDOM Masked only the AF which has different During CD operation, press softkey F1 button (7 ) to play all tracks on CD in - MASK ALL mode: random order. - Page 11 Notes on MP3 - connect white socket to left channel. - The unit cannot read an MP3 file that has Go to SETUP mode, turn ON the Aux-In a file extension other than “MP3”. Select the SRC button (12) to Aux-In. - The unit can play up to maximum 250 tracks and support maximum 50 Telephone mute...
-
Page 12: Maintenance
1. Avoid making fingerprint on the disc MAINTENANCE when handling it. The following suggestions help you care for the product so that you can enjoy it for 2. Put the disc back in the box immediately years. after eject. This is to protect the disc from damage and dust. -
Page 13: Specification
SPECIFICATION GENERAL Power Supply Requirements : DC 12 Volts, Negative Ground Chassis Dimensions : 178 (W) x 165 (D) x 50 (H) Tone Controls - Bass (at 100 Hz) : + 10 dB/ –10 dB - Treble (at 10 KHz) : + 10 dB/ –10 dB Maximum Output Power : 4 x 40 W (CD1404MP3/ CD1504MP3) -
Page 14: Trouble Shooting
TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom Cause Solution No power. The car ignition is not on. If the power supply is properly connected to the car accessory terminal, switch the ignition key to “ACC”.
