WARNING
Please read the manual supplied carefully. Switch off the power before starting
the installation. Be extremely careful and follow the instructions exactly.

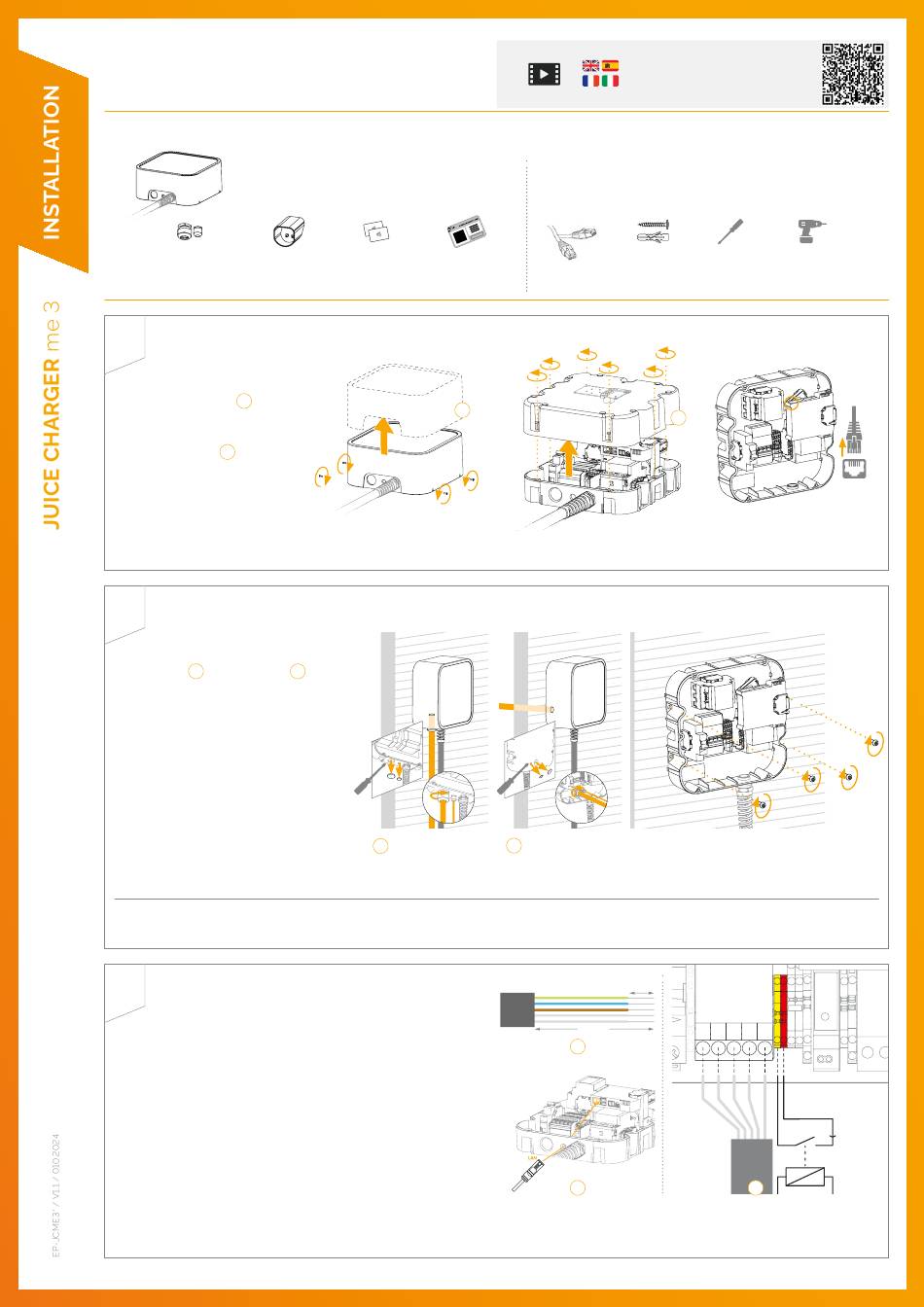

Product overview
Charging station
Plug holder
Cable glands
(incl. screws
(1× large, 1× small)
and dowels)
1
Open
1
Loosen the four screws on
the side of the cover
and lift
1
off the cover.
2
Loosen the six screws on
the inner housing
2
and lift
the upper part.
3
Unplug the Ethernet cable
connected to the cover from
the JUICE CHARGE CON-
TROLLER and remove the
cover completely.
2
Preparation and assembly
1
Decide whether you want to sur-
face-mount
or flush-mount
1
charging station.
2
Select the relevant cable glands for the
selected variant.
3
Determine the mounting height and drill
the holes using the drilling template (on the
back of these instructions).
4
Attach the charging station to a
stable wall with sufficient load-bearing
capacity or the separately available pedes-
tal. Use suitable wall plugs and screws for
mounting (no countersunk screws). Tighten
the screws well, but not too tightly (max.
3 Nm).
Important: The mounting surface should cover the entire rear of the appliance. Recommended installation height: 130-140 cm. Recommend-
ed height for accessibility: 80-95 cm.
3
Connection
1
Strip each wire so that 13-15 mm of copper is exposed (Figure 1).
2
Connect the LAN cable as shown in Figure 2.
3
Feed the supply cable through the cable gland into the inner
housing and connect it to the spring-loaded terminal in accordance
with the locally applicable standards.
4
Tighten the cable gland with a torque of 9 Nm.
5
If you want to set up load shedding, refer to Figure 3 and Chapter
18 in the manual supplied.
* We recommend connecting the station to the Internet via LAN for stability reasons. If you still want to connect the station to the Internet via WLAN, you can download the update tool on your laptop at juice.world/support/
jcme3. open the programme and click on advanced settings at the bottom right. Then connect your laptop to the JUICE CHARGE CONTROLLER using a micro USB. If the USB connection is established and your laptop
has an active internet connection, both dots in the top right-hand corner will be green. Then click on Configure network and enter the access data for your WLAN network under WLAN. Make sure that you have entered
everything correctly and then click Next. Repeat this for all stations that you want to connect to the Wi-Fi.
Owner &
2 × RFID cards *
Warranty Card
1
the
2
9 Nm
1
Surface-mounted variant
*
Take a look at our installation video:
+
juice.world/support/jcme3
For the installation you need
Ethernet or
Screws
LAN cable
and dowels
2
9 Nm
2
Flush-mounted
variant
13–15 mm
150 mm
1
2
* Connected to the charging station ex works.
Screwdriver
Drilling machine
Cables
connect
L1 L2 L3
N
PE
Floating contact for
load shedding
(optional)
max. 2,5mA
3
