WARNING
Please read the manual supplied carefully. Switch off the power before starting
the installation. Be extremely and follow the instructions exactly.

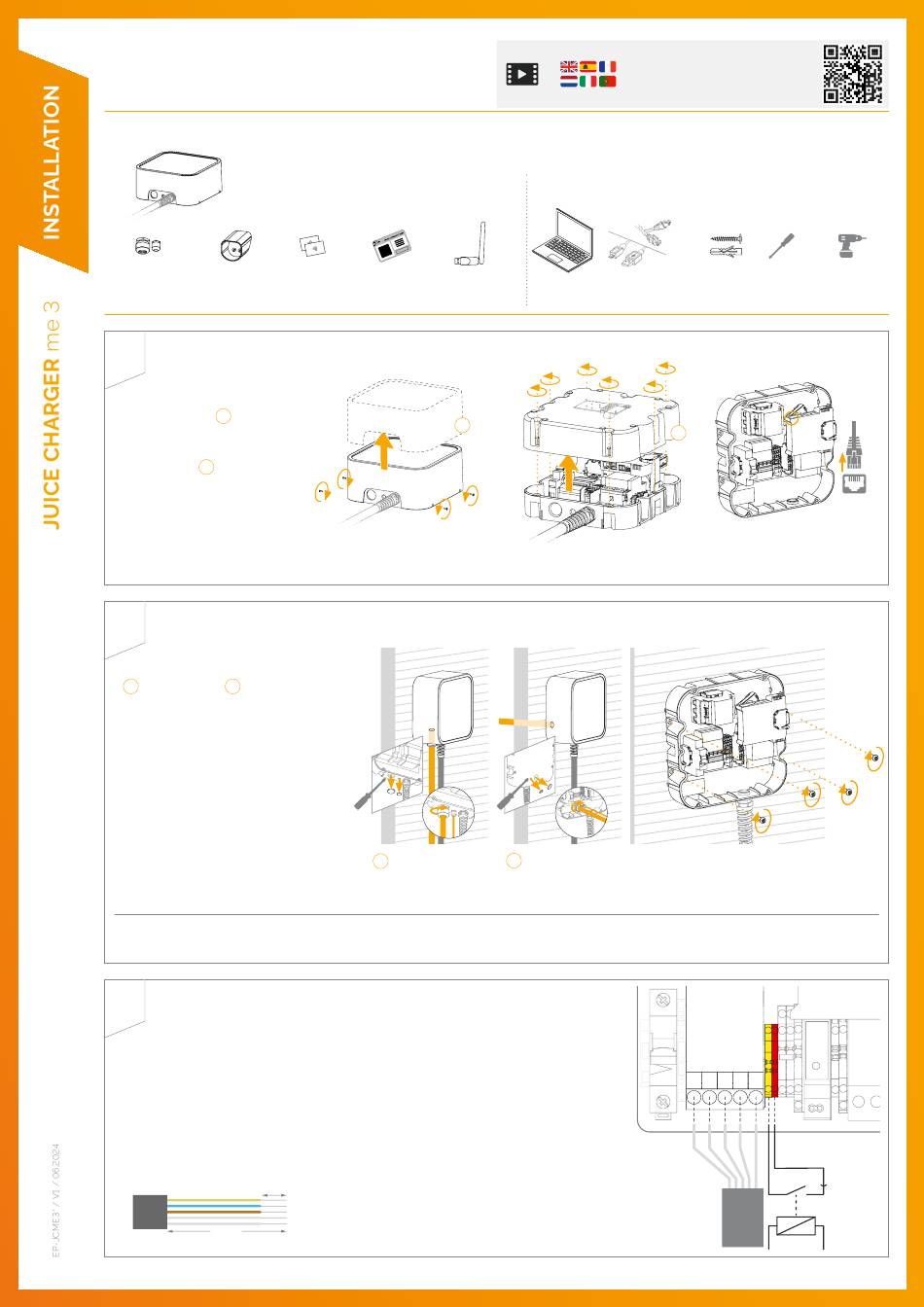

Product overview
Charging station
Plug holder
Cable glands
(incl. screws
2 × RFID cards *
(1× large, 1× small)
and dowels)
1
Open
1
Loosen the four screws on the
side of the cover
1
and lift off
the cover.
2
Loosen the six screws on the
inner housing
and lift the
2
upper part.
3
Unplug the Ethernet cable
connected to the cover from
the JUICE CHARGE
CONTROLLER and remove
the cover completely.
2
Preparation and assembly
1
Decide whether you want to surface-mount
1
or flush-mount
2
the charging station.
2
Punch out the relevant cable bushings for
the selected variant.
3
Determine the mounting height and drill
the holes using the drilling template (on the
back of these instructions).
4
Attach the charging station to a
stable wall with sufficient load-bearing
capacity or the separately available pedes-
tal. Use suitable wall plugs and screws for
mounting (no countersunk screws). Tighten
the screws well, but not too tightly (max.
3 Nm).
Important: The mounting surface should cover the entire rear of the appliance. Recommended installation height: 130-140 cm. Recommend-
ed height for accessibility: 80-95 cm.
3
Connection
1
Strip each wire so that 13-15 mm of copper is exposed.
2
Feed the supply cable through the cable gland into the inner housing and connect
it to the spring-loaded terminal in accordance with the locally applicable stand-
ards.
3
Tighten the cable gland with a torque of 9 Nm.
4
If you want to set up load shedding, refer to the illustration and chapter 18 in the
manual supplied.
13–15 mm
150 mm
For the installation you need
Owner &
Warranty Card
WiFi dongle **
1
9 Nm
2
1
Surface-mounted variant
Flush-mounted variant
Take a look at our installation video:
+
juice.world/support/jcme3
** Depending on the version, already installed in the station.
Micro USB cable
Screws
Laptop
or LAN cable
and dowels
2
9 Nm
Cables
connect
L1 L2 L3
* Connected to the charging station ex works.
Drilling
Screwdriver
machine
N
PE
Floating contact for
load shedding
(optional)
max. 2,5mA
