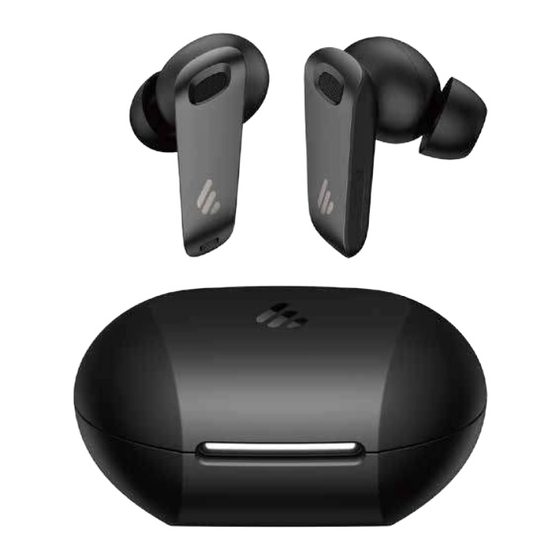

EDIFIER NeoBuds Plus Manual

NeoBuds Plus
True Wireless Earbuds with Active Noise Cancellation
EN 1. Power ON/OFF
Open or close the case to power on/off.
2. First pairing
1. Once powered on, the earbuds will auto-enter Bluetooth pairing.
2. Select "EDIFIER NeoBuds Plus" from your device list to connect.
3. Pairing for new device
1. Power on and then press and hold the button on the case for about 3s.
LEDs will be lit one by one from left to right in a circulating pattern.
2. Select "EDIFIER NeoBuds Plus" from your device list to connect.
Note: For subsequent use, the headphones will automatically connect to the device used last time.
4. Multipoint connection
①
②
③
Bluetooth
EDIFIER NeoBuds Plus
1. Pair device A with the earbuds and don't take the earbuds out.
2. Re-enter Bluetooth pairing and select "EDIFIER NeoBuds Plus" in device
B settings to connect.
3. Select "EDIFIER NeoBuds Plus" in device A settings to connect manually
5. Charging
Input: 5V 200mA(Earbuds) 5V
Note:
1. Make sure the USB port is completely dry before charging.
2. Make sure the contact surface is clean before charging with a
wireless charger.
6. Controls
Call
●
Press Area
Music
●
Press Area
Note
1. Default sound control: High noise cancellation / Ambient sound / Noise cancellation off.
2. "—" Press and hold.
7. Reset
1. Place the earbuds in the case and keep it open.
2. Press the button on the case 3 times to re-enter the left & right
connection and clear the pairing records. LEDs will be lit one by
one from sides to center in a circulating pattern and then will blink
twice if successful.
Model: EDF200165
Manual
Indicator light
3s
3s
A
or
x1
x1
x2
x1
x2
x3
－
Bluetooth
EDIFIER NeoBuds Plus
Bluetooth
EDIFIER NeoBuds Plus
Bluetooth
EDIFIER NeoBuds Plus
1A(Charging case)
x1
x1
x2
x1
x2
x3
－
A
B
Press Area
Press Area
x3
