VK101

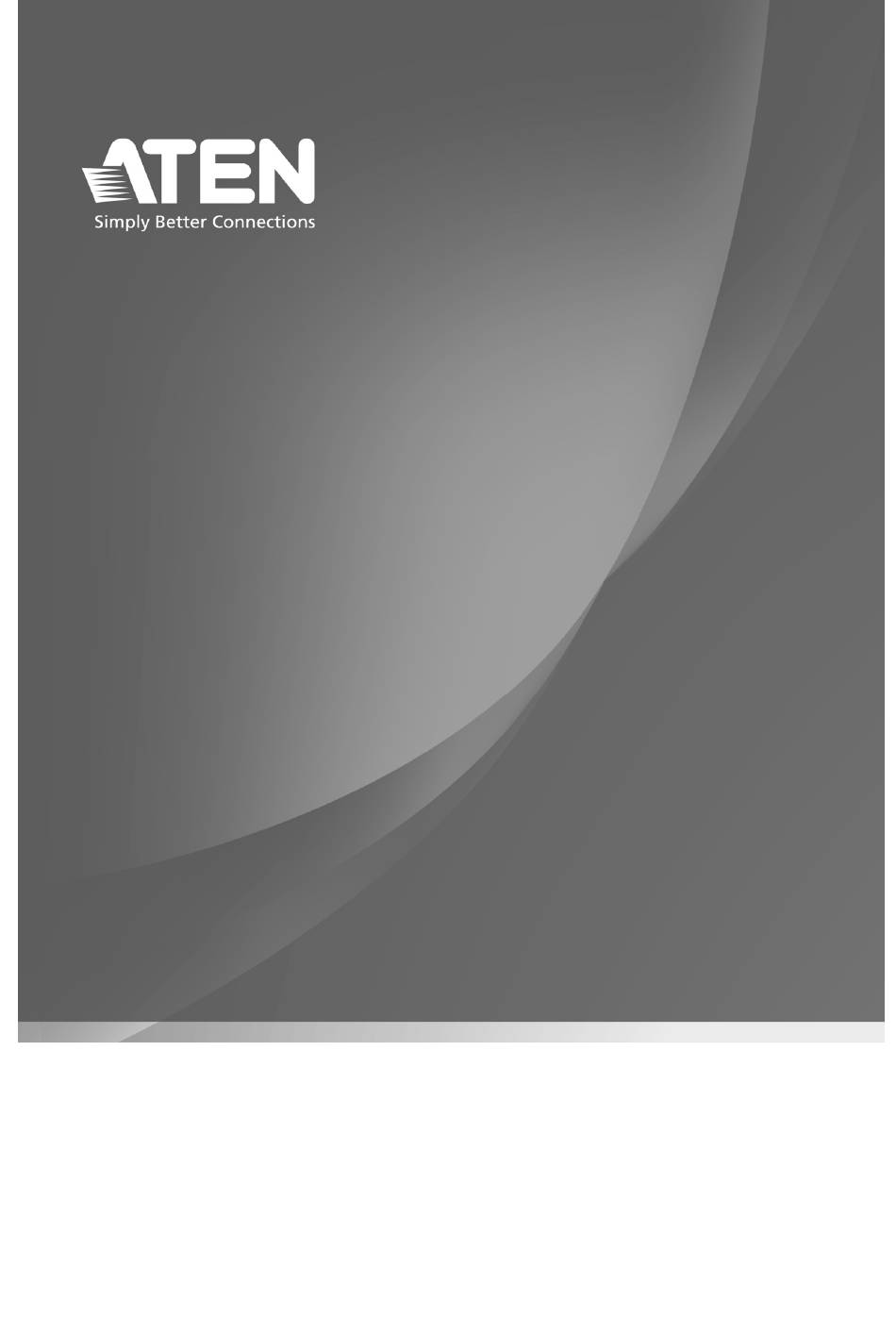

Tabletop Kit (US, 1-Gang)
Quick Start Guide
© Copyright 2024 ATEN ® International Co. Ltd.
ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All
rights reserved. All other trademarks are the property of their respective owners.
Released: 11/2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the VK101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATEN VK101

Summary of Contents for ATEN VK101

  • Page 1 Tabletop Kit (US, 1-Gang) Quick Start Guide © Copyright 2024 ATEN ® International Co. Ltd. ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other trademarks are the property of their respective owners. Released: 11/2024...
  • Page 2 To reduce th he environme ental impact o f our product ATEN docum mentation and d software can n be found on nline at http://ww ww.aten.com m/download/ Technical S Support www.aten.co om/support VK101 Pro oduct Page...
  • Page 3 1. Applicable Models This tabletop kit is applicable to the following ATEN products:  ATEN Control Pad (VK0100)  ATEN Keypad (VK108US)  ATEN Contact Closure Remote Pad (VPK104)  ATEN Touch Panel (VK320)  ATEN HDMI HDBaseT-Lite Transmitter (VE1801AUST)
  • Page 4 2. Hardware Overview Front View front knockout M3x12 screw holes Side View rear knockout seal...
  • Page 5 Bottom View wall-mount hook holes M4x18 screw holes bottom knockout...
  • Page 6 3. Mounting a Control Pad, Keypad, or Contact Closure Remote Pad Note: The term, target device, is used in this section to refer to Control Pad, Keypad, and Contact Closure Remote Pad. Desktop Mount Place the enclosure on a desk where a hole is punched out or space is reserved to provide a path for wires.
  • Page 7 With the faceplate removed, fold the wires into the enclosure and then secure the target device to the enclosure with two M3x12 screws. Attach the faceplate by pressing it onto the target device until it locks in place.
  • Page 8 2 wall- -mount hook ho oles (as indica ated, wi ith the A ATEN log go facing down nward). Drill the e holes a and secu self-p prepared d screws s to the wall.
  • Page 9 Hang enclosure onto the wall or secure the enclosure with the four M4 x 18 screws provided. On the target device, assemble the buttons and connect the required cables to the target device. Note: For wiring information of the target device, refer to the corresponding user manual.
  • Page 10 4. Mounting an ATEN Touch panel (VK320) Desktop Mount Place the enclosure on a desk where a hole is punched out or space is reserved to provide a path for wires. Optionally secure the enclosure to the desk through the indicated holes with the four M4x18 screws provided.
  • Page 11 Fold the wires into the enclosure and then: (a) Align the Touch Panel onto the mounting plate. (b) Slide the Touch Panel until it locks onto the mounting plate, as shown on the right. Secure the Touch Panel to the mounting plate with the screw removed at step 3.
  • Page 12 4 wa all-moun nt holes indica ated, wit th the A ATEN log go facing down nward). D Drill the e marked d locatio ons, and t hen put 4 ancho...
  • Page 13 Hang the enclosure onto the wall or secure the enclosure with the four M4 x 18 screws provided. Remove the mounting plate from the Touch Panel and secure it onto the enclosure with the two M3x5 screws provided. Connect the cables to the Touch Panel. Note: For wiring information, refer to the VK320 Quick Start Guide.
  • Page 14 5. Mounting an ATEN HDMI HDBaseT-Lite Transmitter (VE1801AUST) Desktop Mount Place the enclosure on a desk where a hole is punched out or space is reserved to provide a path for wires. Optionally secure the enclosure to the desk through the indicated holes with the four M4x18 screws provided.
  • Page 15 With the faceplate removed, fold the wires into the enclosure and then secure the transmitter to the enclosure with two M3x12 screws. Attach the faceplate by pressing it onto the transmitter until it locks in place.
  • Page 16 2 wall- -mount hook ho oles (as indica ated, wit th the A ATEN log go facing down nward). D Drill the e holes a and secu self-p prepared d screws s to the wall.
  • Page 17 Hang the enclosure onto the wall or secure the enclosure with the four M4 x 18 screws provided. Connect the cables to the transmitter. Note: For wiring information of the transmitter, refer to the VE1801AUST User Manual. With the faceplate removed, fold the wires into the enclosure and then...
