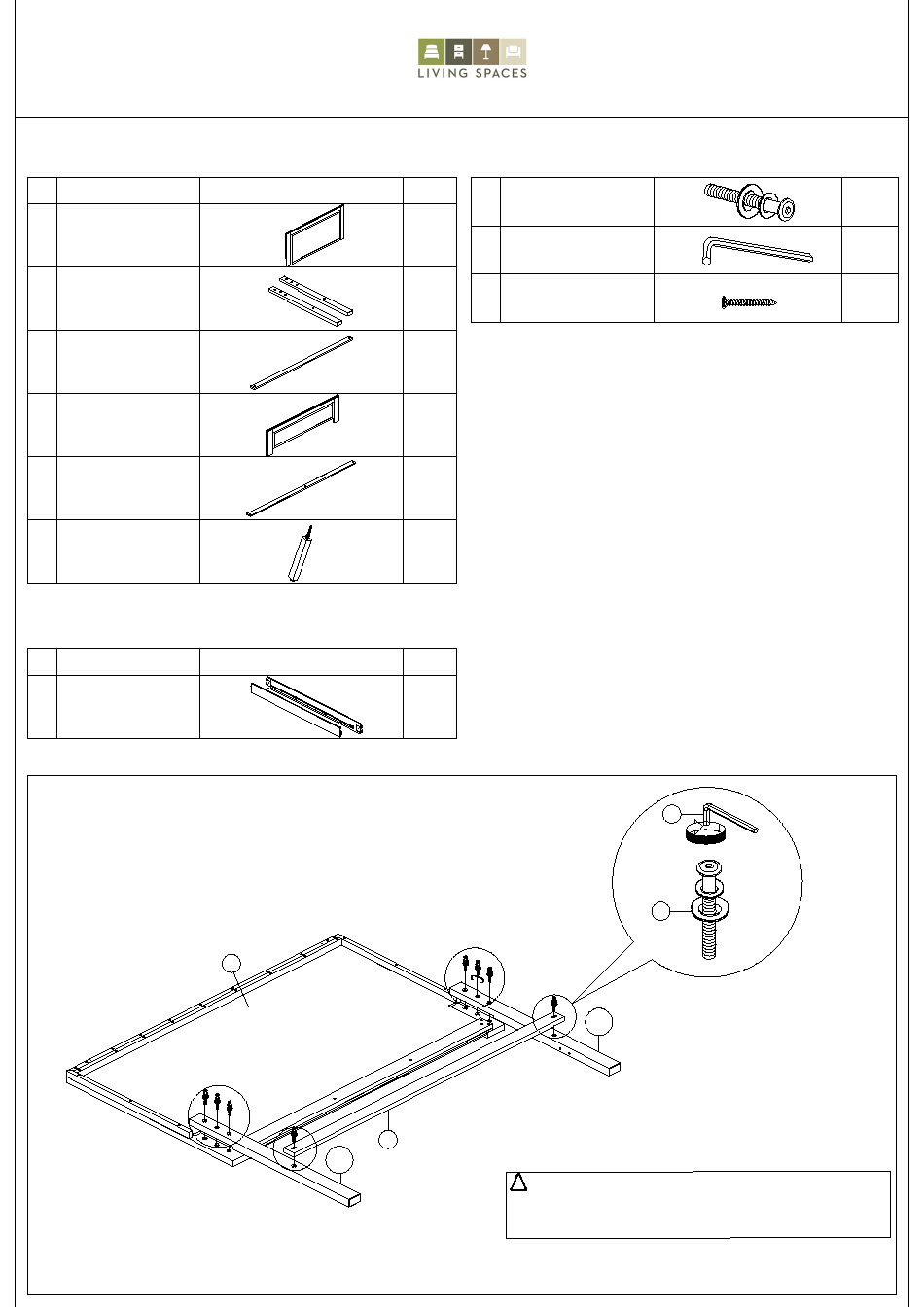

ASSEMBLY INSTRUCTION
INSTRUCCIONES
BOX OF HEADBOARD/ FOOTBOARD
NO PART DESC
A
HEADBOARD
B
L/R HEADBOARD LEG
C
STRETCHER
D
FOOTBOARD
E
SLAT
F
SUPPORT LEG
BOX OF RAIL
NO PART DESC
G
SIDE RAIL
THE HARDWARE IS LOCATED IN THE PACKING ITEMS
STEP 1/ PASO 1
BOX 1
-------
BOX 2
-------
A
C
B-R
NOTE : MUST TIGHTEN SCREWS PERIODICALLY WITH USE SCREWS
WILL BECOME LOOSE.CHECK TIGHTNESS OF ALL SCREWS EVERY 6-8 WEEKS
Q'TY
1
(Ø1/4''-20 x 1-1/2'' )
BLOT
1PC/
PIEZA
ALLEN WRENCH
2
2PCS/
CSK SCREW (#4 x 1*3/16'')
PIEZAS
3
1PC/
PIEZA
1PC/
PIEZA
4PCS/
PIEZAS
4PCS/
PIEZAS
Q'TY
2PCS/
PIEZAS
!
NOTE : DURING ASSEMBLY, DO NOT FULLY TIGHTEN
BACK VIEW
ANY HARDWARE UNTIL THE COMPLETE
UNIT HAS BEEN ASSEMBLED.
B1700 QUEEN BED
B1700 CAMA QUEEN
BOX 1
HARDWARE LIST
2
1
B-L
8PCS/
PIEZAS
1PC/
PIEZA
8PCS/
PIEZAS
PAGE 1 OF 2
