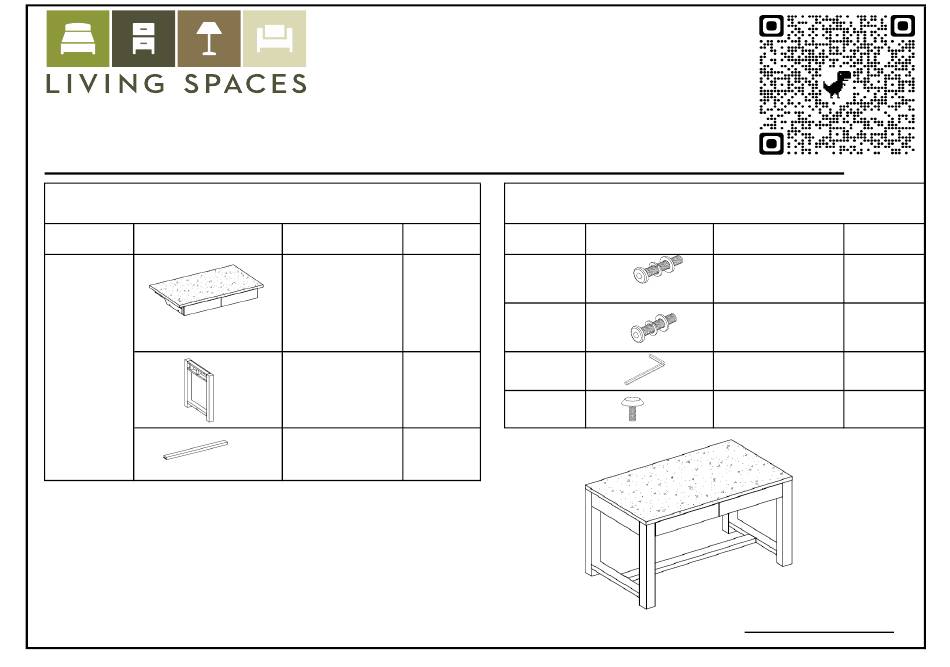

ASSEMBLY INSTRUCTIONS

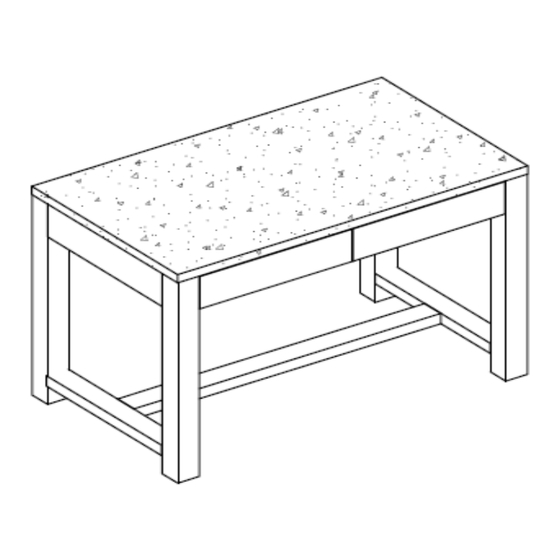

Titan Kitchen Island
ITEM No.: 51031255
(BOX 1)
Box of Table Top / Leaf/ Top Support/ Stretcher
SKU#
51031255
DESCRIPTION
QUANTITY
Table Top
1
Leg
2
Stretcher
1
(BOX 1)
Table Top / Leaf/ Top Support/ Stretcher Hardware List
SKU#
Z1
Z3
Z4
Z2
Z3
Z4
Z5
Z6
DESCRIPTION
QUANTITY
Allen Bolt: Ø 8 x 60mm
Sping Washer: Ø 8 x 12 x 2mm
10
Washer: Ø 8 x 19 x 2mm
Allen Bolt: Ø 8 x 70mm
Sping Washer: Ø 8 x 12 x 2mm
2
Washer: Ø 8 x 19 x 2mm
Allen Key
1
Ø4 x 59mm
Adjustable Floor Glide
(Pre-installed at the bottom of the
4
legs)
COMPLETED ASSEMBLY
