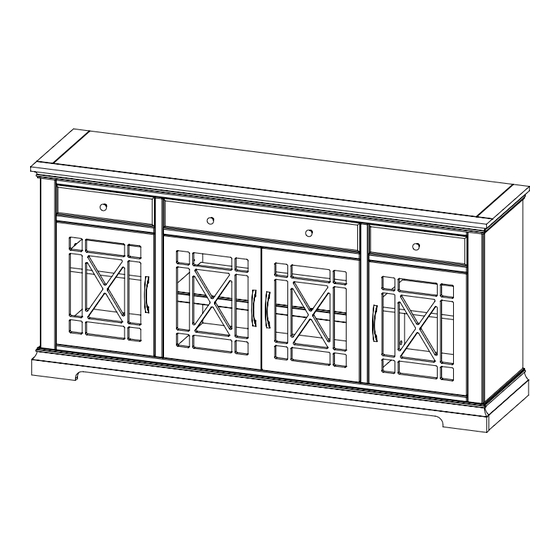

TV CONSOLE
Important: Be sure to check all packing material carefully for small parts which may come
loose inside carton during shipment. separate, identify and count all parts and metal
hardware.
Compare with parts list and hardware ilustrations to be sure all parts are present. if any
part(s) are missing or damage, contact your dealers customer services deparment. for
efficient and fast service, please indicate the model number and the parst needed.
ATTENTION: Some lettered parts listed on the instruction sheets may not be
in the parts bag, they may already be assembled.
TOOLS REQUIRED
(Not included)
Phillips Screwdriver
HARDWARE:
Knob pull
HBJ-02780-08
Part No.
(4 Pcs) INSTALLED
ASSEMBLY INSTRUCTIONS
MODEL No. LS-ANN49-23
Pull
HBJ-03490-08
Part No.
(4 Pcs) INSTALLED
BOLT CH. TRUSS 8/32 X 7/8
Part No. HCPP-078A
(12 Pcs) INSTALLED
Anti-tip braket
HB-488
Part No.
(1 Pc)
Page 1 of 3
