000690843.03
Pushing device
Assembly instructions
R20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Empulse R20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sunrise Medical Empulse R20

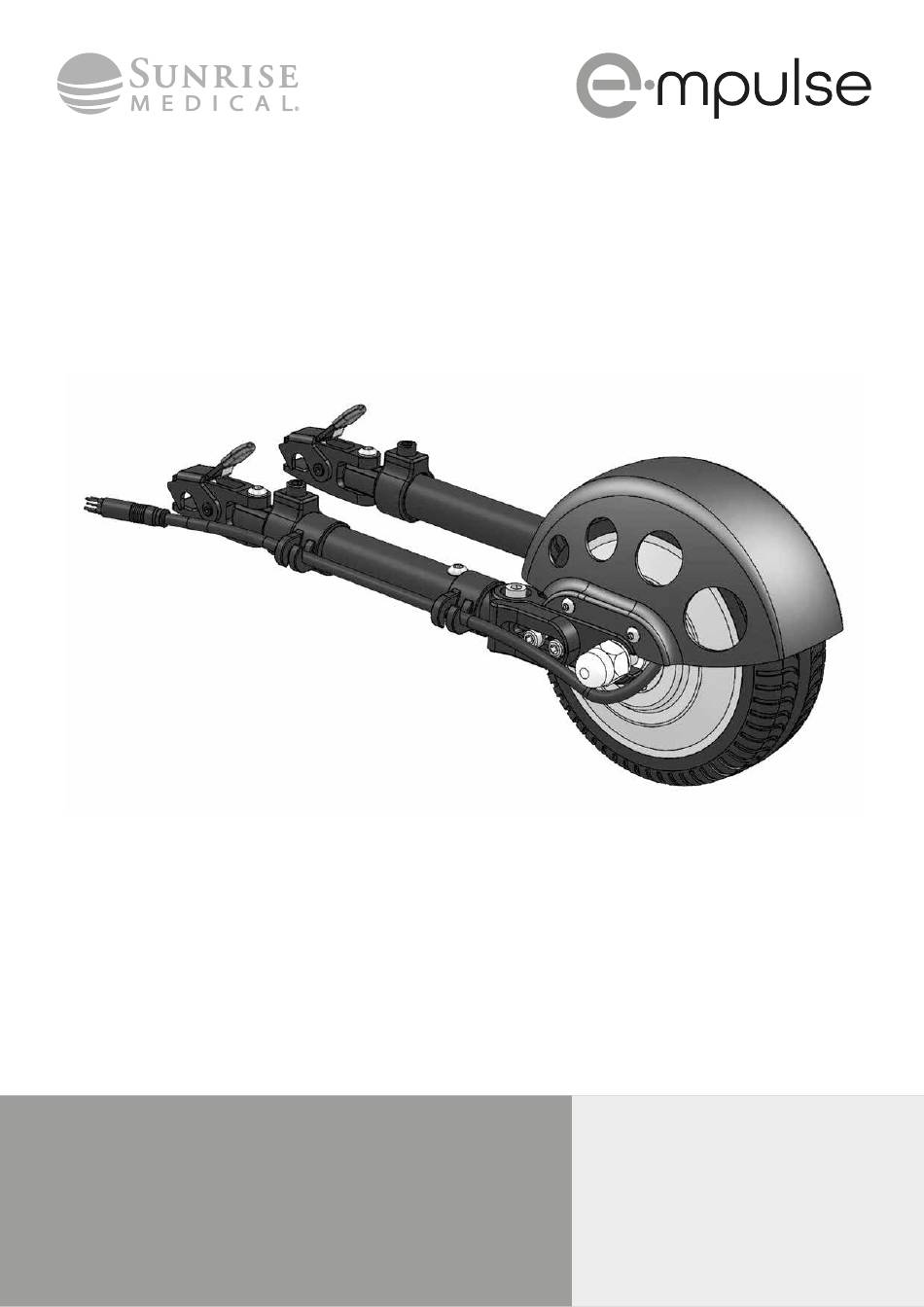

  • Page 1 000690843.03 Pushing device Assembly instructions...
  • Page 2 Components of the pushing device We at SUNRISE MEDICAL have been awarded the ISO-9001 certificate, which affirms the quality of our products at every stage, from R & D to production. This products meet the requirements in accordance with...
  • Page 3: Table Of Contents

    Torque ................5 reliable partner in your daily life. For Sunrise Medical, it is very important that we have a Fitting the wheel unit ............ 6 good relationship with our customers. We like to keep you up-to-date about new and current developments at Fitting the back pack ..........
  • Page 4: Delivery

    LI-ION 36V/5.8Ah battery for wheelchair (in the back pack) Battery bracket, 2 keys (in the back pack) Motor controller 36V / 15A (in the back pack) Docking clamps (1 clamp on the Ibis) Charger 36 V 1.35 A Empulse R20 Rev.A...
  • Page 5: Torque

    The screws used are fitted with threadlock at the factory and after fitting, cannot be re-used. After that they should be replaced or alternatively re-secured with threadlock to medium tightness (Loctite 243). WARNING: Secured nuts may only be used once. Empulse R20 Rev.A...
  • Page 6: Fitting The Wheel Unit

    Screw version Clamp version Clamp version for the Ibis (requires an existing hole in the (will be clamped to the lower frame (will be clamped to the centre of the frame tube) tube) lower frame tube) Empulse R20 Rev.A...
  • Page 7 (D) are positioned in the recess of the bar (A). (Torque setting: 3 Nm) Make this attachment on both sides in the same way. After attaching the clamps, these should be at an angle of 90° to the floor (Fig. 2). FIG. 1 FIG. 2 BACK FRONT FIG. 3 BACK FRONT Empulse R20 Rev.A...
  • Page 8 To do this use a reference point from which you can measure (e.g. from the axle plate of the wheelchair to the clamp). if necessary undo the screws (3) a little and move both clamps (B-C) so that they are at the same level. Then re-tighten the screws (3) gently. FIG. 1 FIG. 2 BACK FRONT BACK FRONT Empulse R20 Rev.A...
  • Page 9 (1). Only tighten the screws (1) gently, so that the clamp (A) can still be rotated and moved. Now adjust the clamp so that it is exactly central and the bar (B) is vertical to the floor. Now tighten the screws (torque setting: 5 Nm). BACK FRONT Empulse R20 Rev.A...
  • Page 10 Undo the screws (11) and (17) on both sides so that the jaws (G) and the telescopic tube (K) can be adjusted. Fitting the pushing aid Undo the right and left parts by pressing the release button (M) on the lever – and position this over the docking pin (D). Empulse R20 Rev.A...
  • Page 11 First of all, adjust the stop jaws (G). Push the jaws (G) right and left forward until they are up against the hinge (figure) and then tighten the screws (11) on both sides (torque setting: 3 Nm). Attention: The jaws must be positioned in the breaks in the interlocking teeth! FIG. 1 FIG. 2 Empulse R20 Rev.A...
  • Page 12 (E) such that the distance to the lock (L) is as small as possible. The pushing device should now be fitted in the centre of the wheelchair and should be firm and rigid. Empulse R20 Rev.A...
  • Page 13: Fitting The Back Pack

    Position the strap round the Pull the strap through and fold of the tube. When doing this round the tube so that the tube and pull through the loop backwards the Velcro is facing outwards Velcro parts fit together Empulse R20 Rev.A...
  • Page 14 Connect the four corners of the back pack with the buckle (T1) of the retaining straps. Adjust the straps (T2) to the required width for your wheelchair. Any surplus strap can be fixed using the retaining clips (T3). Empulse R20 Rev.A...
  • Page 15: Fitting The Control Unit

    Now tighten the screws (torque setting: 3 Nm) and push the pushing handle (A) back on. Then fix the display bracket (C) using the self-tapping screws (2) on the handle. ATTENTION! – The pushing handle must be firmly fitted and must not come off the tube. Empulse R20 Rev.A...
  • Page 16 Once you have found the ideal position, screw the screws back in. 2. By undoing the screw (23), you can change the angle of the display (V). Once you have found the ideal position, screw the unit back on. Empulse R20 Rev.A...
  • Page 17: Wiring

    36 V / max. 15 A MOTOR 6” with tyres A (blue) BATTERY 36 V 1.5 V (red) GND (black) 2. GND (black) 36 V, brushless 3. HC (yellow) 4. HH (green) 5. HA (blue) MOTOR CABLE Empulse R20 Rev.A...
  • Page 18 Empulse R20 Rev.A...
  • Page 19 Empulse R20 Rev.A...
  • Page 20 Bezplatná linka 800 900 809 F: +31 (0)30 – 60 55 880 E: info@sunrisemedical.nl Sunrise Medical ApS www.SunriseMedical.nl Park Allé 289 G DK-2605 Brøndby Sunrise Medical HCM B.V. Tlf. 70 22 43 49 Vossenbeemd 104 Email: info@sunrisemedical.dk 5705 CL Helmond www.SunriseMedical.dk The Netherlands T: +31 (0)492 593 888 Sunrise Medical Pty.
