Nidec DT-311D-EU Operation Manual

DT-311D Line Powered Digital Stroboscope
Operation Manual

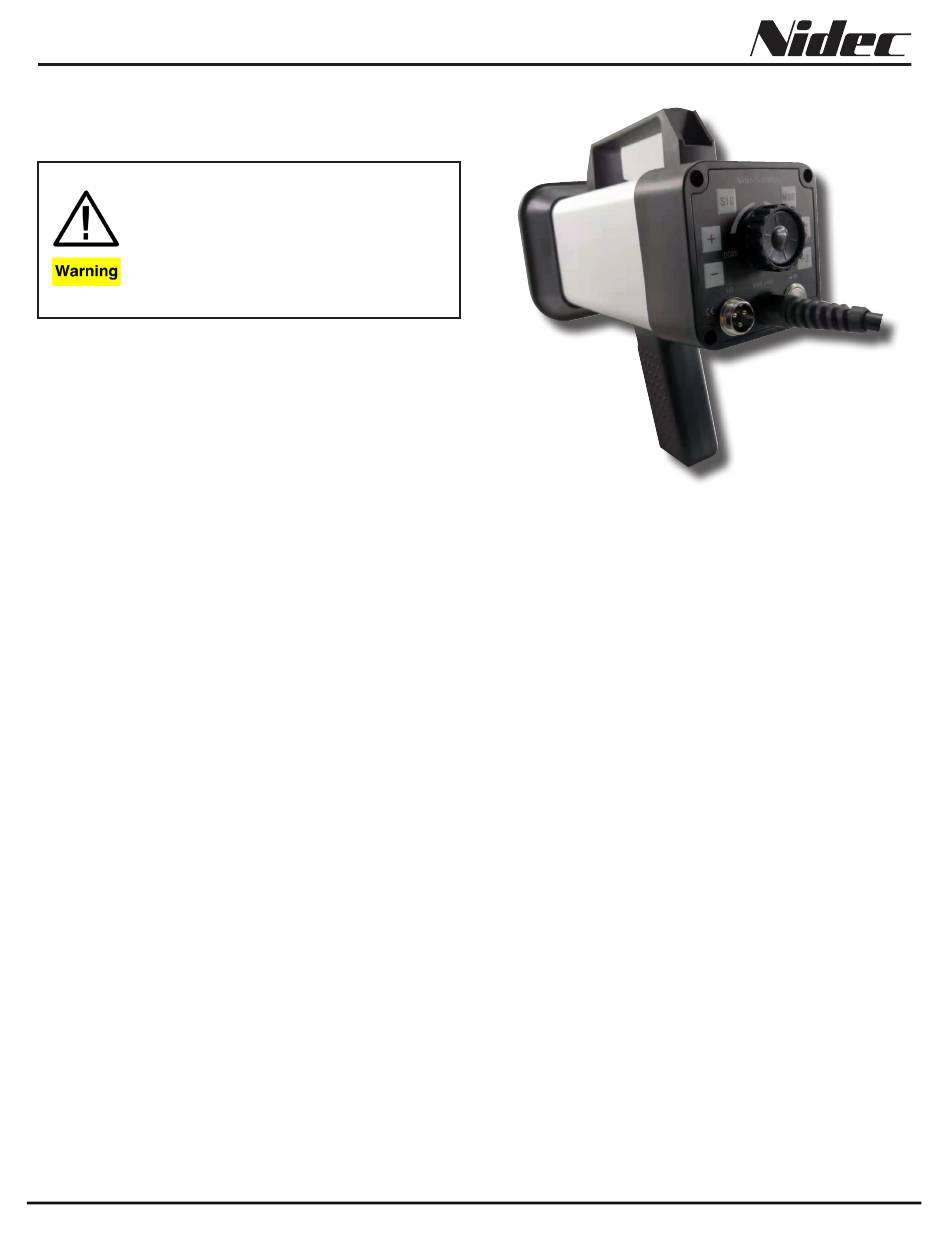

Don't look directly into the light Source. This may result in eye injury.
Don't use or store in the following environments: Direct sunlight, con-
densation, dust or caustic.
Do not alter, or modify. Such action may cause damage and void war-
ranty.
Operate with 0-35°C (32-95°F), 35-85% RH. Use outside of this range
may alter the unit's performance.
The DT-311D is a portable, highly stable, industrial-quality strobo-
scope for non-contact inspection and observation of moving parts
by providing the user the illusion of stopped or slowed down equip-
ment movement. Constructed with a rugged, metal enclosure, the
DT-311D's withstand harsh industrial usage. The universal pow-
er range (85-240 VAC) allows one model to be utilized on various
power voltages in a multitude of countries. The included top and
bottom handles aid in portability and usage flexibility. The control
adjustment settings allow the flash rate to be readily altered by the
user to visually inspect rotating or reciprocating machinery such as
gear teeth, rotors, shafts, rewinders, printing presses, etc. all with-
out stopping production. These features make the DT-311D ideal for
quality inspection and preventive maintenance of automated motion
equipment.
SEALS USA, Inc.
Instruments Division
SPECIFICATIONS
Flashing Range: 60-12,000 fpm (flashes per minute)
Accuracy: ±0.01% F.S.
Resolution: 0.1 from 60-6,000; 1 from 6,001-12,000
Display: 5 digits 0.4" (10 mm) height
Flashtube Power/Life: Xenon ≤ 45W / 50,000,000
Flash Duration: 10-30 μs automatically adjusts with flash rate
External Trigger Input: 5 V dc ~ 12 V dc pulse signal input
(high level trigger) from sensor
Sensor Power Supply: 12 V dc up to 50 mA
Lux Rating: 8" (20 cm) Distance = 1550 lx @ 1500 fpm, 2350 lx
@ 6000 fpm with 15.5" (400 mm) irradiation diameter.
20" (50 cm) Distance = 650 lx @ 1500 fpm , 580 lx @ 6000 fpm
with 23.5" (600 mm) irradiation diameter
Sensor Power Supply: 5-12 VDC up to 50 mA
Battery Life: 1.5 to 2 hours depending on settings
Time to Charge Battery: 5 hours to full charge
Power Requirement: 85-240 VAC 50/60 Hz
Operating temperature: 32° – 104°F (0 – 40°C)
Dimensions: 8.3 x 4.7 x 4.7" (210 x 120 x 120 mm)
Product Weight: 2.2 lb (1.0 kg)
Package Weight: 2.6 lb (1.2 kg)
Warranty: 1 Year
Certification: CE, RoHS
Included Accessories: Top & bottom handles, 9.8' (3 m) power
cable, 3 pin female M16 theaded connector
Tel: (630)924-7138 Email: support@seals-usa.com
