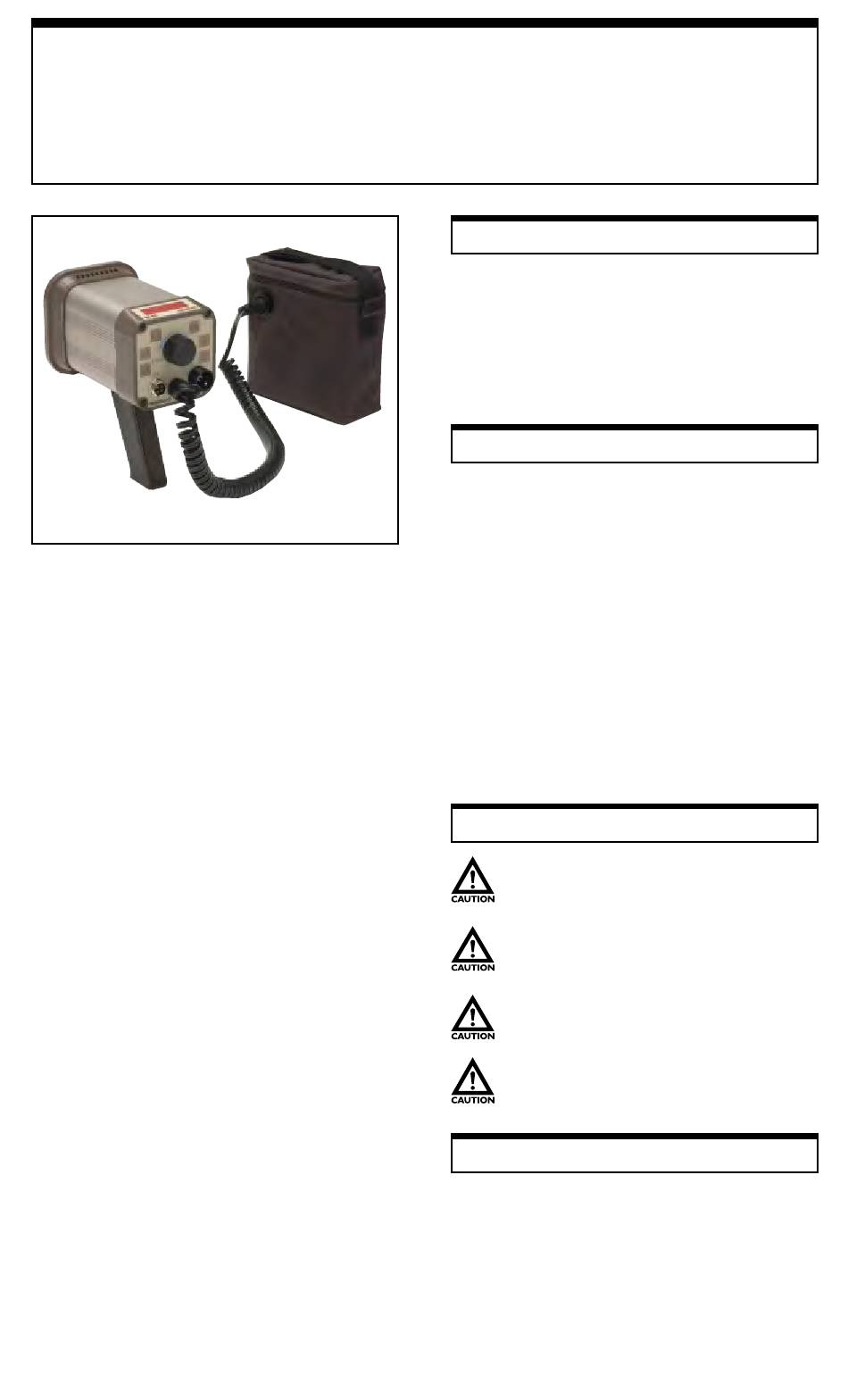

DT-315AEB Stroboscope
Instruction Manual
Congratulations on your purchase of a Shimpo DT-315AEB
stroboscope/digital tachometer. We trust you will enjoy many
years of professional results from your Shimpo product.
Please read the entire instruction manual thoroughly before
initial set-up and operation; the information contained herein
will aid you in operating your Shimpo stroboscope safely and
with excellent results.
If you have any questions regarding our product(s), call your
local Shimpo representative or contact Shimpo Instruments
directly for assistance.
Find Quality Products Online at:
GlobalTestSupply
www.
Inspection/Standard Accessories
If upon delivery shipping damage is detected, do not operate the
unit. Notify shipping carrier immediately for damage claim
instructions. Refer to nameplate and record serial number for future
reference. Items included with the DT-315AEB are:
• (1) Handle
• (1) Flash tube removing tool
• (1) External battery pack in carrying bag with shoulder
strap
Features and Benefits
Shimpo's DT-315AEB stroboscope/digital tachometer
incorporates the latest microprocessor technology for visual
inspection applications:
• Aluminum construction provides exceptional durability
• High polish and focused reflector eliminates "blind"
viewing areas
• External trigger allows unit to be automatically
synchronized with equipment
• Continuous duty cycle eliminates need to shut down for
cooling
• Phase shift allows visual analysis of rotating/reciprocating
objects
• High accuracy ( ±0.01% of reading ) is ideal for QC
inspection and process control
• Synchronous output enables strobe to drive other strobes
• Flash timer control conserves flash tube life
Important Safety Instructions
Do not operate or store instrument in the following places:
explosive areas; near water, oil, dust, or chemicals; areas
where temperature is above 104°F (40°C).
Do not look at the emitted light for long periods
of time; it can be harmful to the eyes.
Do not disassemble or repair unit while in
operation.
Do not charge battery pack for more than 15 - 16
hours.
Set-up
The DT-315AEB may be operated handheld or else mounted on
a tripod for added convenience.
To mount the strobe on a tripod (or any other mounting surface),
.com
use screw ¼ -20unc, length 8mm or shorter for the tripod screw
hole on the bottom.
sales@GlobalTestSupply.com
Advertisement
Related Manuals for Nidec Shimpo DT-315AEB-230V-NIST
Summary of Contents for Nidec Shimpo DT-315AEB-230V-NIST
- Page 1 DT-315AEB Stroboscope Instruction Manual Inspection/Standard Accessories If upon delivery shipping damage is detected, do not operate the unit. Notify shipping carrier immediately for damage claim instructions. Refer to nameplate and record serial number for future reference. Items included with the DT-315AEB are: •...
- Page 2 Display Panel Operation True RPM Measurement Shimpo stroboscopes are DUAL function instruments that give the operator the illusion of “stopped motion” where in actuality the equipment under observation is in a moving state. By adjusting the flash rate, equipment in motion appears to be standing still.
- Page 3 Operation(continued) External Triggering Mode Memory To operate the stroboscope in external triggering mode: The following parameters are set at the factory: 1. Connect external trigger or sensor wires according to • Decimal point: autorange connector pin designation: • Internal timer: continuous 9.3 - 13.4 VDC (40 mA) for powering sensor •...
- Page 4 Troubleshooting FPM reading is displayed but unit is not flashing: Stroboscope is in internal trigger mode, no flash: • Flash tube may need to be replaced (see "Flash Tube • Check flash tube. Replace if necessary Replacement" section) • Check for damaged wiring and/or loose pin connections Stroboscope is in external trigger mode, no flash: •...
