Installation Manual
Pro1 Technologies
P.O. Box 3377
Springfield, MO 65808-3377
Toll Free: 888-776-1427
Web: www.pro1iaq.com
Hours of Operation: M-F 9AM - 6PM Eastern
Thermostat Application Guide
Description
Gas or Oil Heat
Electric Furnace
Heat Pump (No Aux. or Emergency Heat)
Heat Pump (With Aux. or Emergency Heat)
Multi-Stage Systems
Heat Only Systems
Cool Only Systems
Millivolt
Humidity
Dual Fuel
Table of Contents
Wireless Type Selection
Installation Tips
Thermostat Quick Reference
Private Label Badge
Wireless Communication Tips
Reestablishing Communication
Wiring
Technician Setup Menu
Setting the Humidity
Programming
Specifications
U.S. Registered Trademark. Patents pending
1
Copyright
2022 All Rights Reserved.
Installation Tips
Thermostat Subbase Installation
Horizontal Mount
Vertical Mount
Installation Tip: Electrical Hazard
Failure to disconnect the power before beginning to install this product
can cause electrical shock or equipment damage.
Mercury Notice
All of our products are mercury free. However, if the product you are
replacing contains mercury, dispose of it properly. Your local waste
management authority can give you instructions on recycling and
proper disposal.
3
T755WH
Power Type
Battery Power*
Hardwire (Common Wire)
Yes
Hardwire (Common Wire) with
Yes
Battery Backup
Yes
Yes
Yes
A trained, experienced
Yes
technician must install this
Yes
product.
No
Carefully read these
Yes
instructions. You could damage
Yes
this product or cause a
hazardous condition if you fail
Page
to follow these instructions.
2
3-8
Una version en español de este
9-10
manual se puede descargar en
11
la pagina web de la compañia.
12
13
* If you are using remote
14-18
sensors the thermostat
19-28
must be hardwired.
29
30-38
39
For horizontal mount put one screw on
the left and one screw on the right.
For vertical mount put one screw on
the top and one screw on the bottom.
Wireless Type Selection

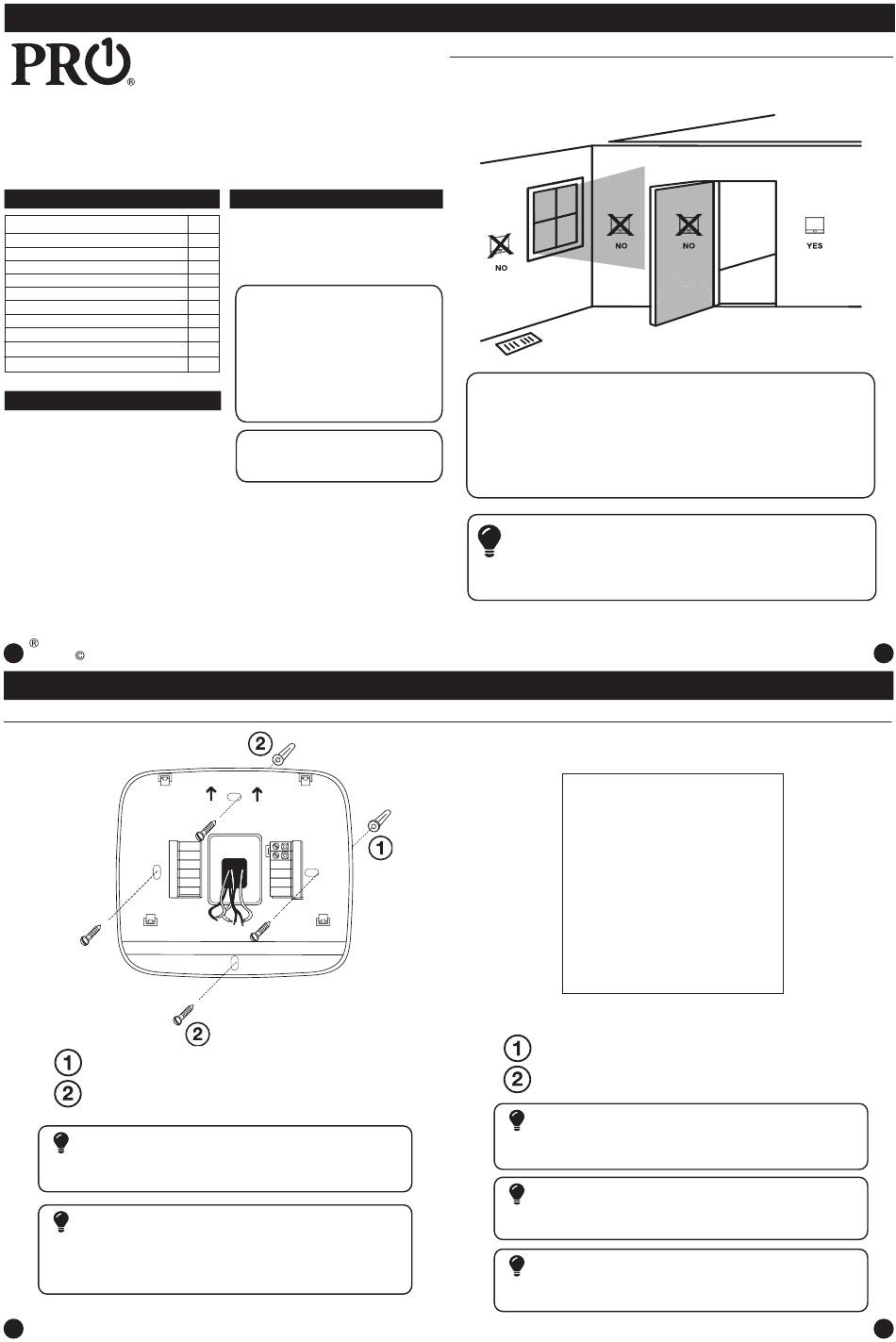

Wall Locations
The thermostat should be installed approximately 4 to 5 feet above the
floor. Select an area with average temperature and good air circulation.
Do not install thermostat in these locations:
• Close to hot or cold air ducts
• That are in direct sunlight
• With an outside wall behind the thermostat
• In areas that do not require conditioning
• Where there are dead spots or drafts (in corners or behind doors)
• Where there might be concealed chimneys or pipes
Installation Tip
Pick an installation location that is easy for the user to access. The temperature
of the location should be representative of the building.
Rev. 2203
Installation Tips
Base Module Subbase installation
Horizontal Mount
Vertical Mount
Wiring Note
Wire the base module's subbase the same way you would wire a
hardwired thermostat subase.
Note:
To connect the base module to the master thermostat, refer to the
directions on page 13 of this manual.
Note:
The base module must be hardwired (C and R terminals connected to
24V power.)
For horizontal mount put one screw on
the left and one screw on the right.
For vertical mount put one screw on
the top and one screw on the bottom.
2
4
