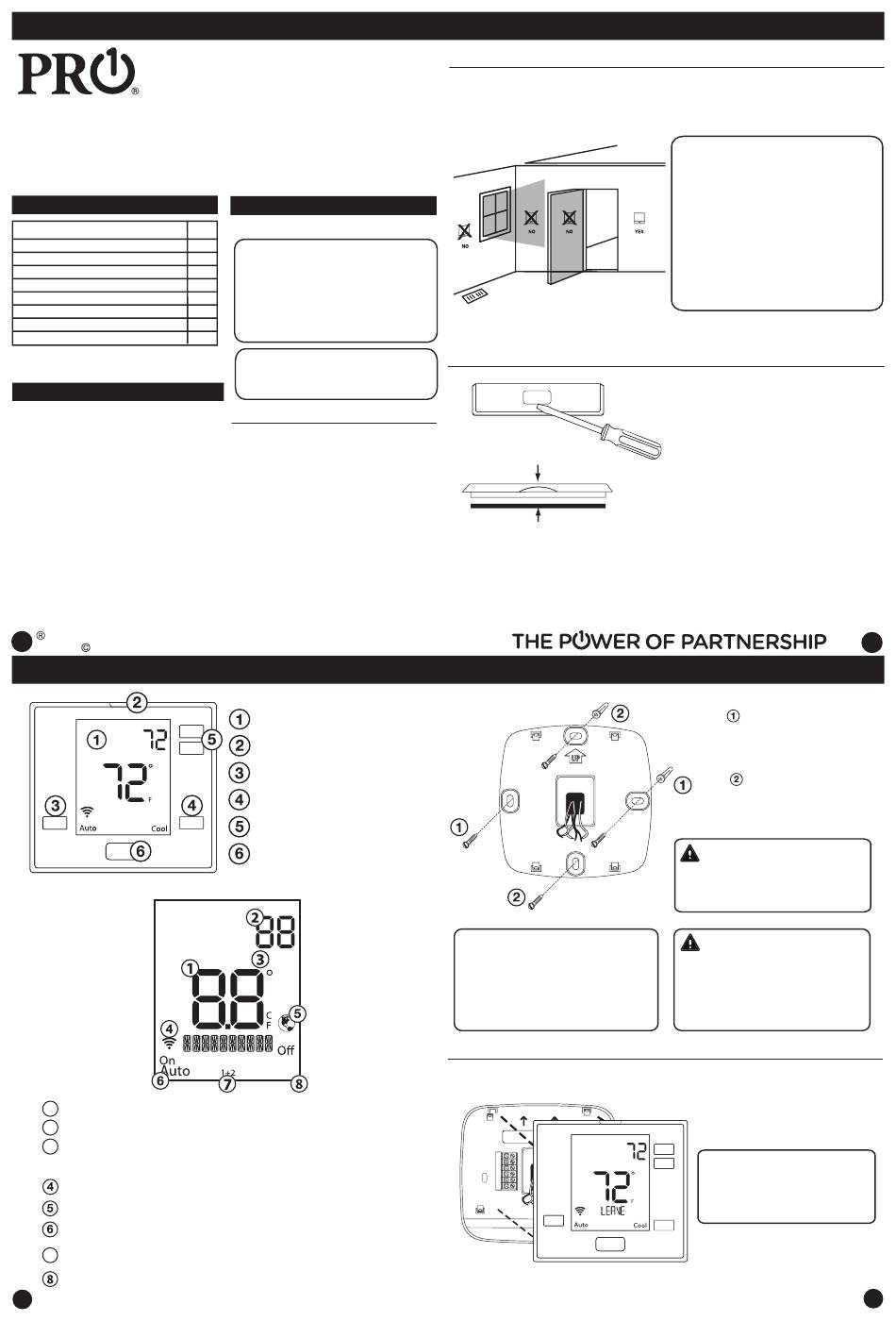

Pro1 Technologies T721i Product Installation Manual

Product Installation Guide
Pro1 Technologies
P.O. Box 3377
Springfield, MO 65808-3377
Toll Free : 888-776-1427
Web: www.pro1iaq.com
Hours of Operation: M-F 9AM - 6PM EST
Thermostat Application Guide
Description
Gas or Oil Heat
Electric Furnace
Heat Pump (No Aux. or Emergency Heat)
Heat Pump (With Aux. or Emergency Heat)
Multi-Stage Systems
Heat Only Systems
Cool Only Systems
Millivolt
Table of Contents
Installation Tips
Thermostat Quick Reference
Subbase Installation
Wiring
Technician Setup
WIFI Setup
Specifications
U.S. Registered Trademark. Patents pending
1
Copyright 2021 All Rights Reserved.
Thermostat Quick Reference
Set At
1 Indicates the current room temperature
2
Setpoint: Displays the selected setpoint temperature.
3
System Operation Indicators:
when the COOL, HEAT, or FAN is on. The compressor delay feature is active if these
are flashing.
WIFI Indicator: Shown when connected to WiFi.
Globe: Globe is displayed if an energy efficient temperature has been selected.
Fan: Indicates the current fan setting.
7
Stages: +1 will appear in the display when the first stage of heat or cool is
on. +2 will appear for the second stage of heat.
System: Indicates current system mode setting.
3
T721i
Power Type
Hardwire (24V Common Wire)
Yes
A trained, experienced
Yes
technician must install this product.
Yes
Carefully read these
Yes
instructions. You could damage this
Yes
product or cause a
Yes
hazardous condition if you fail to
Yes
follow these instructions.
No
Una version en espanol de este
manual se puede descargar en la
pagina web de la compania.
Page
2
WIFI
3
4
Frequency Range............2.4 Ghz ISM radio band
WIFI Module...............................Supporting 802.11
5-6
B/G/N Standards
7-8
9-11
12
LCD Display
Glow in the dark light button
Fan Button
System Button
Temperature Setpoint Buttons
Private Label Badge
Set At
COOL ON
HEAT ON
FAN ON
Em.Heat
STAGES
AutoCool
The COOL ON, HEAT ON or FAN ON will display
Installation Tips
Wall Installation
The thermostat should be installed approximately 4 to 5 feet above the floor.
Select an area with average temperature and good air circulation. Pick an
installation location that is easy for the user to access. The temperature of the
location should be representative of the building.
Removing The Private Label Badge
Use the bevel on lower ridge
Magnet in door
Rev. 2135
Subbase Installation
NOTE:
To ensure a solid fit between
the thermostat and subbase:
1. Mount subbase on a flat wall.
2. Use provided screws.
3. Ensure drywall anchors are flush with wall.
4. Push wires into wall.
Mount Thermostat
Do not install
thermostat in locations:
• Close to hot or cold air ducts
• That are in direct sunlight
• With an outside wall behind the
thermostat
• In areas that do not require
conditioning
• Where there are dead spots or
drafts (in corners or behind doors)
• Where there might be concealed
chimneys or pipes
Gently slide a screwdriver into the
bottom edge of the badge. Gently
turn the screwdriver counter
clockwise. The badge is held on by
a magnet in the well of the battery
door. The badge should pry off easily.
DO NOT USE FORCE.
All of our thermostats use the same
universal magnetic badge. Visit the
company website to learn more about
our free private label program.
Horizontal Mount
For horizontal mount put one
screw on the left and one screw
on the right.
Vertical Mount
For vertical mount put one
screw on the top and one screw
on the bottom.
Electrical Hazard
Failure to disconnect the power before
beginning to install this product can cause
electrical shock or equipment damage.
Mercury Notice
All of our products are mercury free.
However, if the product you are replacing
contains mercury, dispose of it properly.
Your local waste management authority
can give you instructions on recycling and
proper disposal.
Set At
Align the 4 tabs on the subbase
with corresponding slots on the
back of the thermostat, then push
gently until the thermostat snaps
in place.
2
4
