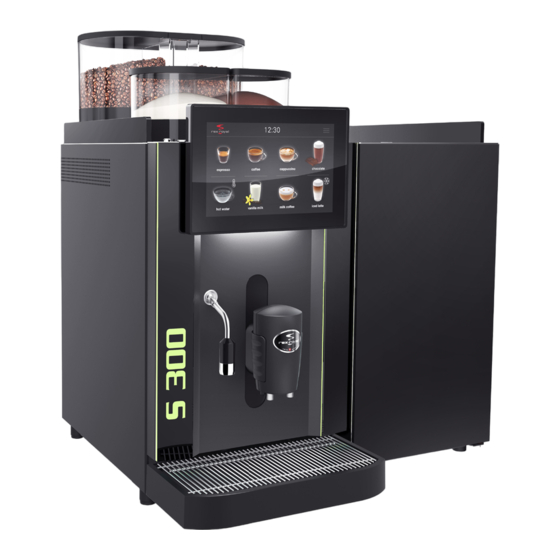

- Page 1 Tech Manual Customizing Agent Coffee © get your personal touchscreen... Rex-Royal S1 Rex-Royal S2 Rex-Royal S300 (2016-2018)* Rex-Royal S300 (2020-2022) Rex-Royal S500 (2018-2022) EN | Edition 01/2023 *only with 10" touchscreen...
- Page 2 Reservation of intellectual property This document and its entire contents are protected by copyright and are the intellectual property of Rex-Royal AG. The document must not be passed on to third parties and is only allowed to be used for the intended purpose. It must be...
-
Page 3: Table Of Contents
Table of Contents General information Introduction Software version Factory settings Overview of the options USB flash drive Formatting Folder structure USB interface Programming Data transfer Backing up data from the coffee machine on the USB flash drive Loading data from the USB flash drive to the coffee machine Machine programming Machine settings Product recipes... - Page 4 Factory settings In order to delete user-defined data and graphics again, and to reset the Rex-Royal coffee machine to its original status, simply download the current software version from Rex-Royal. For this, you need to select “New Installation” in the update menu.
- Page 5 There are two different display sizes. Please note the different screen resolutions (pixels). 7" 10" Overview of the options Operated Self-service Self-service mode Display mode mode mode with cup selection Loading own machine data Loading own product recipes Starting screen Logo (symbol on the upper screen edge) Additional customer service information...
-
Page 6: General Information
General information USB flash drive Formatting A USB flash drive must always be formatted with “FAT32” first. Unfortunately, not all USB flash drives commercially available work. Therefore, we recommend using the following USB flash drive: SanDisk® Ultra Flair™ USB 3.0 Flash Drive USB flash drives can be ordered from us: Art.no. -
Page 7: Usb Interface
USB interface Open the front door of coffee machine and insert the USB flash drive into the interface provided for this purpose. If a different project was loaded on the coffee machine before, the coffee ma- chine must be reset to factory settings before the new project can be loaded. see chapter: Factory settings... -
Page 8: Data Transfer
Programming Data transfer Backing up data from the coffee machine on the USB flash drive All user-defined settings and graphics of the coffee machine can be saved on a USB flash drive. Follow the steps below: 1 Log onto the coffee machine to get to the Service Menu. (Technician code) 2 Select Machine maintenance. - Page 9 Loading data from the USB flash drive to the coffee machine The data that has been saved as a backup on the USB flash drive (see previous page) can be copied to another Rex-Royal coffee machine of the same type and the same factory preset (parameter 9.04).
-
Page 10: Machine Programming
Programmierung Machine programming Machine settings The backup (data backup) contains the “MachineConfig.csv” configuration file for the machine settings. All parameters in this table can be customised. Save the CSV file in the following folder structure: Custom\ProjectAA*\Machine\MachineConfig.csv *Folder name selectable CSV files can be edited with MS Excel, among other programs. MachineConfig.csv Parameter Selection (value) -
Page 11: Product Recipes
Product recipes The backup (data backup) contains the “RecipeConfig.csv” configuration file for the product recipes. All parameters in this table can be customised. Save the CSV file in the following folder structure: Custom\ProjectAA*\Machine\RecipeConfig.csv *Folder name selectable CSV files can be edited with MS Excel, among other programs. RecipeConfig.csv Recipe Id Standard... - Page 12 Programming Additional customer service information You can create your own text on the machine info page. Example: "Service number: +41 0800 000 000" The text always appears at the end of the table. ServiceInfo.html Place a user-defined text file in the following folder structure: Custom\ProjectAA*\Config *Folder name selectable The text file must meet the following criteria:...
-
Page 13: Logo
Graphics Logo The Rex-Royal logo appears in the upper left corner of the standard screen of the coffee machine. LOGO_L1.png (Rex-Royal) LOGO_L1.png (customised image) The Rex-Royal logo can be replaced by your own image. Place your own logo in the following folder structure:... -
Page 14: Screen Saver
If the active time is longer than or equal to the interval, the screen saver remains perma- nently active until the touchscreen is touched. ProductShow.mp4 (original Rex-Royal) The original Rex-Royal video can be replaced by your own images. Place the images in the following folder structure: Custom\ProjectAA*\ScreenSaver... -
Page 15: Product Dispensing Screens
If a product is selected in self-service mode, an advertising video will be displayed while the product is dispensed. The self-service mode can be activated in the machine settings (parameter 17.10). P_ADV00.mp4 (original Rex-Royal) The original Rex-Royal video can be replaced by your own images or videos. Place the files in the following folder structure: Custom\ProjectAA*\ProductAdvert *Folder name selectable You can load your own advertising images or advertising videos. -
Page 16: Product Images
Graphics Product images The original Rex-Royal product images can be replaced by your own images. Depending on the number of products on the touch screen, the “Product Icons” must be provided in a low resolution (S) or high resolution (LA). -
Page 17: Starting Screen
When starting up, the entire display will show an image briefly. This image can be customised. SplashScreen.png (original Rex-Royal S500) The original Rex-Royal startup screen can be replaced by your own image. Place the file in the following folder structure:... -
Page 18: Expanded Product Selection
Expanded product selection Cup selection Depending on programming, the customer may choose up to 3 cup sizes for the desired product. S_AC.png | M_AC.png | L_AC.png (original Rex-Royal) Place the files in the following folder structure: Custom\ProjectAA*\Icons *Folder name selectable... -
Page 19: Milk Type
Milk type Depending on programming, the customer can choose from up to 2 different milk types. Expanded product selection/operated mode (original Rex-Royal) Selection graphics in the operated mode Place the files in the following folder structure: Custom\ProjectAA*\Icons *Folder name selectable... -
Page 20: Payment Systems
If a credit card terminal is connected, the notification screen TX0221XX.png will appear after the product selection. This image can be customised. TX0221XX.png (original Rex-Royal) This screen can display various credit card providers that are accepted by the credit card terminal. (e.g. VISA, Master- card etc.) -
Page 21: Selection Screen
Credit: 0,00 PayRefused_EN.png PaySelect_EN.png (original Rex-Royal) The original Rex-Royal images for means of payment should be replaced by your own to show the list of accepted cards and coins. Place the images in the following folder structure: Custom\ProjectAA*\PictMsg\TEXTXXEN** *Folder name selectable ** Language folder (EN = English) -
Page 22: Do-It-Yourself
(product selection) is displayed again. Menu 17.09 defines the interval after which a new image is shown. ProductShow.mp4 (original Rex-Royal) The original Rex-Royal video can be replaced by your own images or videos. Place the files in the following folder structure: Professional tip:... -
Page 23: Advertising Pictures
(Menu 17.10). P_ADV00.mp4 (original Rex-Royal) The original Rex-Royal video can be replaced by your own images or videos. Place the files in the following folder structure: Professional tip: The folders are also allowed to... -
Page 24: Loading Graphics Onto Coffee Machine
Do it your-self Options for users Loading graphics onto coffee machine The customised media stored on the USB flash drive can be loaded onto the coffee machine. Follow the steps below: 1 Insert the USB flash drive into the coffee machine. The “Update Pictures” menu appears on the touchscreen. 2 Confirm with the green button (A) to go to the next step. - Page 25 Notes...
- Page 26 Even more options Customise your coffee machine Not only the operating unit can be customised. There is any number of options for customising Rex-Royal coffee machines. We will gladly help you if you have any further wishes. Side wall examples...
- Page 28 Rex-Royal AG | Swiss Coffee Machines | Industriestrasse 34 | CH-8108 Daellikon / Zuerich T: +41 44 847 57 57 | info@rex-royal.ch | www.rex-royal.ch Art.no. 173940...
