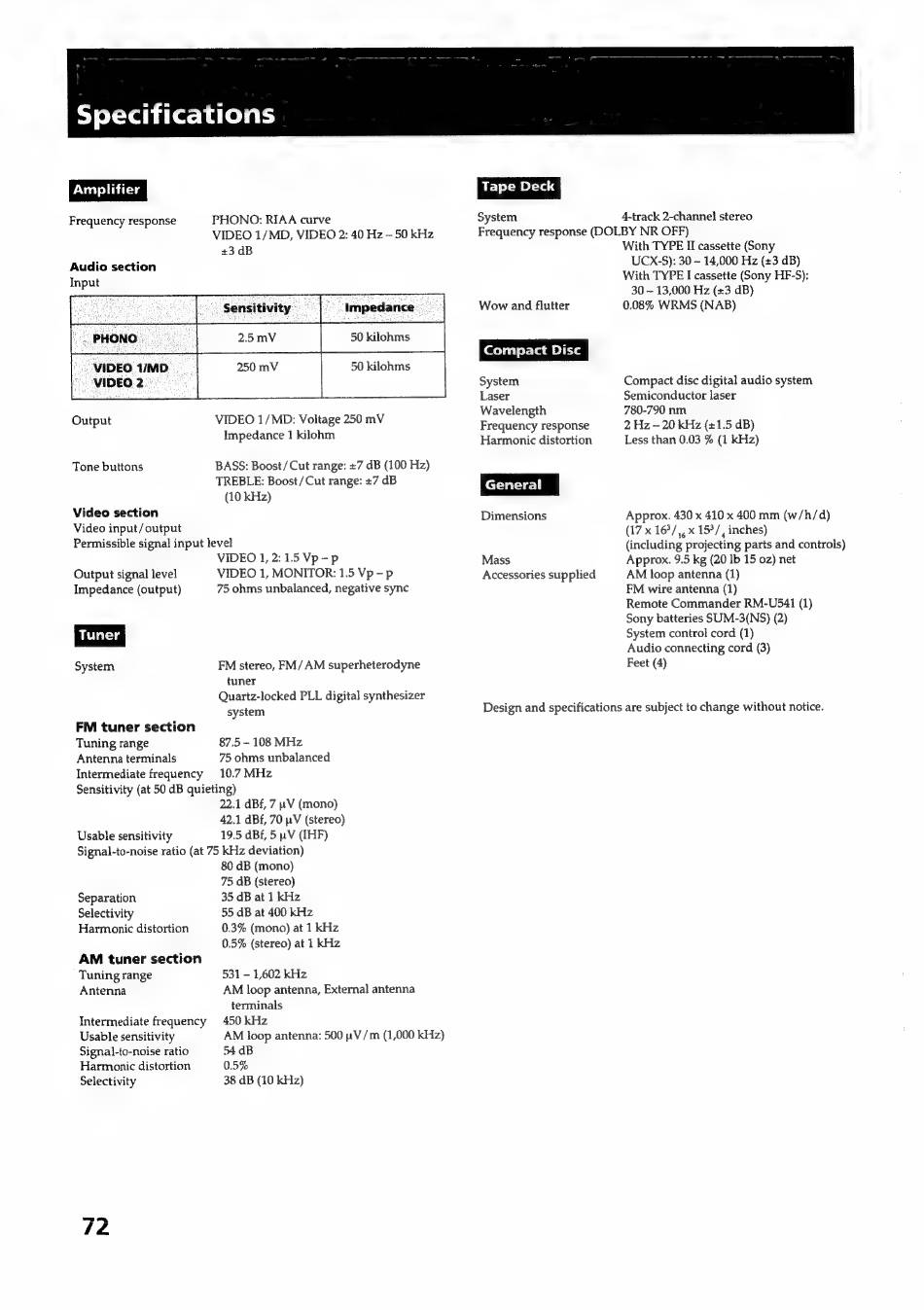

Specifications
Frequency response PHONO: RIAA curve
VIDEO 1/MD, VIDEO 2: 40 Hz — 50 kHz
+3 dB
Audio section
50 kilohms
50 kilohms
Output VIDEO 1/MD: Voltage 250 mV
Impedance 1 kilohm
Tone buttons BASS: Boost/Cut range: +7 dB (100 Hz)
TREBLE: Boost/Cut range: +7 dB
(10 kHz)
Video section
Video input/output
Permissible signal input level
VIDEO 1, 2:1.5 Vp-p
VIDEO 1, MONITOR: 1.5 Vp - p
75 ohms unbalanced, negative sync
Output signal level
Impedance (output)
System FM stereo, FM/AM superheterodyne
tuner
Quartz-locked PLL digital synthesizer
system
FM tuner section
Tuning range 87.5 - 108 MHz
Antenna terminals 75 ohms unbalanced
Intermediate frequency 10.7 MHz
Sensitivity (at 50 dB quieting)
22.1 dBf, 7 pV (mono)
42.1 dBf, 70 pV (stereo)
Usable sensitivity 19.5 dBf, 5 wV (IHF)
Signal-to-noise ratio (at 75 kHz deviation)
80 dB (mono)
75 GB (stereo)
Separation 35 dB at 1 kHz
Selectivity 55 dB at 400 kHz
Harmonic distortion 0.3% (mono) at 1 kHz
0.5% (stereo) at 1 kHz
AM tuner section
Tuning range 531 ~ 1,602 kHz
Antenna AM loop antenna, External antenna
terminals
Intermediate frequency 450 kHz
Usable sensitivity AM loop antenna: 500 1 V/m (1,000 kHz)
Signal-to-noise ratio 54 dB
Harmonic distortion 0.5%
Selectivity 38 dB (10 kHz)
72
Tape Deck
System 4-track 2-channel stereo
Frequency response (DOLBY NR OFF)
Wow and flutter
System
Laser
Wavelength
Frequency response
Harmonic distortion
Dimensions
Mass
Accessories supplied
With TYPE II cassette (Sony
UCX-S): 30 ~ 14,000 Hz (+3 dB)
With TYPE I cassette (Sony HF-S):
30 ~ 13,000 Hz (+3 dB)
0.08% WRMS (NAB)
Compact disc digital audio system
Semiconductor laser
780-790 nm
2. Hz — 20 kHz (+1.5 dB)
Less than 0.03 % (1 kHz)
Approx. 430 x 410 x 400 mm (w/h/d)
(17 x 16°/,, x 15°/, inches)
(including projecting parts and controls)
Approx. 9.5 kg (20 Ib 15 oz) net
AM loop antenna (1)
FM wire antenna (1)
Remote Commander RM-U541 (1)
Sony batteries SUM-3(NS) (2)
System control cord (1)
Audio connecting cord (3)
Feet (4)
Design and specifications are subject to change without notice.
