Teac MD-H500i Service Manual

CH —EIJ °°E@°@o
= Senate )
7 as
| © oo

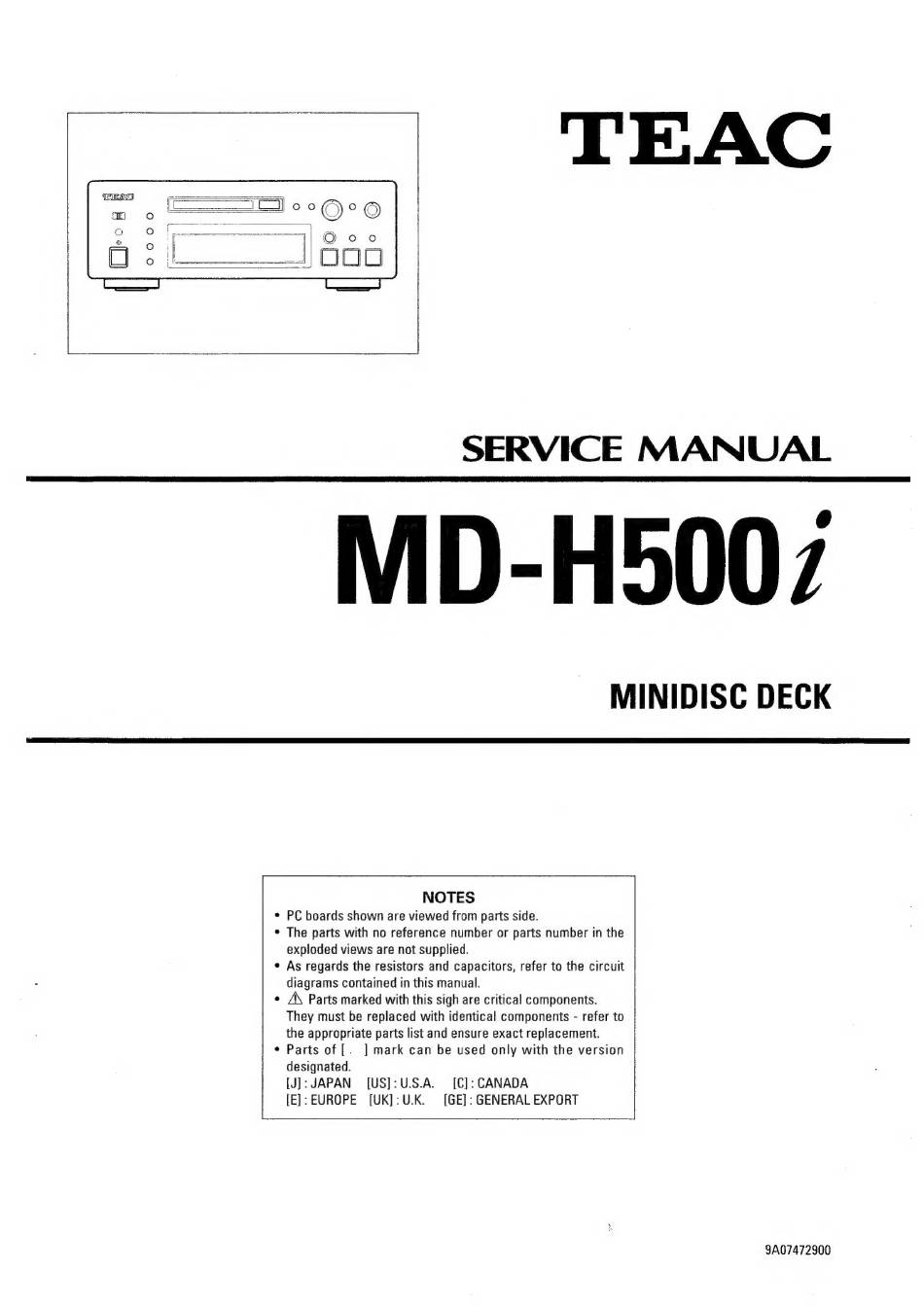

SERVICE MANUAL
MD-H5007
MINIDISC DECK
NOTES
¢ PC boards shown are viewed from parts side.
© The parts with no reference number or parts number in the
exploded views are not supplied.
* As regards the resistors and capacitors, refer to the circuit
diagrams contained in this manual.
¢ A\ Parts marked with this sigh are critical components.
They must be replaced with identical components - refer to
the appropriate parts list and ensure exact replacement.
¢ Parts of [. ] mark can be used only with the version
designated.
[J]: JAPAN [US]:U.S.A. [C]: CANADA
[E]: EUROPE [UK]:U.K. [GE]: GENERAL EXPORT
9A07472900
