NOTES
PC board shown are viewed from parts side.
The parts with no reference number or no parts number
in the exploded views are not supplied.
As regards the resistors and capacitors, refer to the
circuit diagrams contained in this manual.
Parts marked with this sign are safety critical
!
components. they must be replaced with identical
components - refer to the appropriate parts list and
ensure exact replacement.
Parts of [ ] mark can be used only with the version
designated.
[UK] - [UK]; [EUR]-Europe

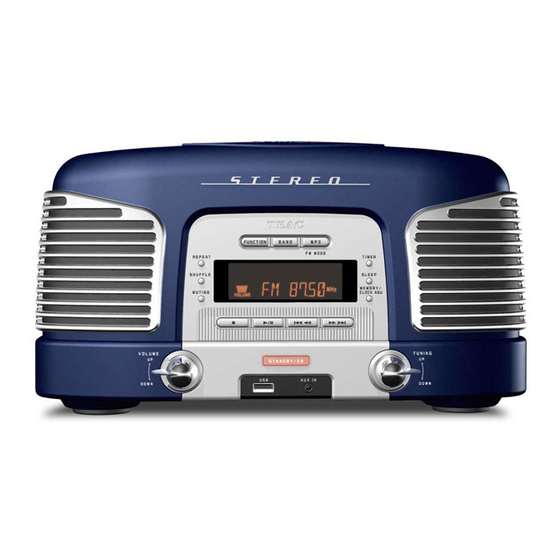

SL-D910
AM/FM STEREO DIGITAL
RADIO WITH CD PLAYER
1 SAFETY INFORMATION
2 SPECIFICATIONS
3 ADJUSTMENT AND CHECK
4 EXPLODED VIEW AND PARTS LIST
5 PC BOARDS AND PARTS LIST
6 WIRING DIAGRAM
7 INCLUDED ACCESSORIES
CONTENTS
. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . .
. . . .. . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . .
. . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
3
4
7
19
29
31
Advertisement
Table of Contents
Related Manuals for Teac SL-D910
Summary of Contents for Teac SL-D910
- Page 1 SL-D910 AM/FM STEREO DIGITAL RADIO WITH CD PLAYER NOTES CONTENTS 1 SAFETY INFORMATION ............
-
Page 2: Safety Information
SL-D910 1 SAFETY INFORMATION Optical pickup : Type : KSM-213CDM Manufacturer : SANY CORPORATION OF HONG KONG LIMITED Laser output : Less than 0.5mW on the objective lens Wavelength : 760-800nm... -
Page 4: Tuner Section
SL-D910 3 ADJUSTMENTS AND CHECKS 3-1 TUNER SECTION Use a screwdriver with a plastic or ceramic grip for all adjustment. 3-1-1 AM adjustment 1. Set the function switch to the TUNER position. 2. Set the BAND switch to the AM position. -
Page 5: Radio Alignment
SL-D910 3-2-1. RADIO ALIGNMENT MEASURING SG SETTING TUNER ITEM ADJUSTMENTS POINTS. SETTING Audio Modulation Frequency Output RESULT 1620KHz L402 AM OSC coil VT 8.8-9.2V 1.VOLTAGE adjustment 522KHz Check 2.IFT Maximun output 1KHz 450KHz 76dBuV 603KHz L401 AM IFT coil adjustment level 3.ANT Coil... - Page 6 SL-D910 3-2-2. FM TUNER MEASURING SG SETTING TUNER ITEM ADJUSTMENTS POINTS. SETTING Audio Modulation Frequency Output RESULT 108MHz Check VT 7 +/-0.5V 1.VOLTAGE 87.5MHz Check Maximun output 2.ANT Coil 1KHz 22.5kHz 90.1MHz 76dBuV 90.1MHz Check level Maximun output 3.adjustment 1KHz 22.5kHz...
-
Page 7: Explode View
SL-D910 4 EXPLODED VIEWS AND PARTS LIST EXPLODE VIEW-1... - Page 8 SL-D910 EXPLODED VIEW-1 PARTS LIST REF.NO TEAC PARTS NO. PARTS NO. DESCRIPTION REMARKS 024-43010033-R SCREW 3×10MM PWA BLACK HD 061-0LT10800-R SPEAKER 2" 8 OHM 15~20W 035-SD900082-R R/L SPEAKER EVA WASHER 021-23014033-R SCREW 3×14MM BT BLACK HD 010-SD900300-R LEFT SPEAKER COVER...
- Page 9 SL-D910 EXPLODE VIEW-2...
- Page 10 SL-D910 EXPLODED VIEW-2 PARTS LIST REF.NO TEAC PARTS NO. PARTS NO. DESCRIPTION REMARKS 006-90MU0005-R CD DOOR (RED) 006-90MU0004-R CD DOOR (WHITE) 006-90MU0002-R CD DOOR (SILVER) 006-90MU0003-R CD DOOR (BLACK) 006-90MU0000-R CD DOOR (MOSS GREEN) 006-90MU0001-R CD DOOR (NAVY BLUE) 052-SLD90000-R...
- Page 11 SL-D910 EXPLODE VIEW-3...
- Page 12 SL-D910 EXPLODED VIEW-3 PARTS LIST REF.NO TEAC PARTS NO. PARTS NO. DESCRIPTION REMARKS 001-910EYR00-R BACK PANEL (RED) EUR-Y/UK-Y 001-910ENR00-R BACK PANEL (RED) EUR-N/HK-N/CCC-N 001-910EYW00-R BACK PANEL (WHITE) EUR-Y/UK-Y 001-910ENW00-R BACK PANEL (WHITE) EUR-N/HK-N/CCC-N 001-910EYB00-R BACK PANEL (BLACK) EUR-Y/UK-Y 001-910ENB00-R BACK PANEL (BLACK) EUR-N/HK-N/CCC-N...
- Page 13 SL-D910 EXPLODE VIEW-4...
- Page 14 SL-D910 EXPLODED VIEW-4 PARTS LIST REF.NO TEAC PARTS NO. PARTS NO. DESCRIPTION REMARKS 004-SD900100-R VOLUME KNOB 004-SD900200-R TUNER KNOB 007-SD900100-R LCD DISPLAY WINDOW 001-D9100300-R CONTROL PANEL 012-02120612-R PVC WASHER 12× 6.1×T0.2MM 009-28000000-R TUNER/VOLUME SW. LEVER 031-28000010-R VOLUME SPRING 010-SD900800-R TUNER SPRING COVER...
- Page 15 SL-D910 EXPLODE VIEW-5...
- Page 16 SL-D910 EXPLODED VIEW-5 PARTS LIST REF.NO TEAC PARTS NO. PARTS NO. DESCRIPTION REMARKS 001-SD900000-R FRONT PANEL (RED) 001-90MU0002-R FRONT PANEL (WHITE) 001-SD900003-R FRONT PANEL (BLACK) 001-D90S0000-R FRONT PANEL (SILVER) 001-90MU0000-R FRONT PANEL (MOSS GREEN) 001-D90MU001-R FRONT PANEL (NAVY BLUE) 051-SLD90002-R...
- Page 17 SL-D910 EXPLODE VIEW-6...
- Page 18 SL-D910 EXPLODED VIEW-6 PARTS LIST REF.NO TEAC PARTS NO. PARTS NO. DESCRIPTION REMARKS 015-D9100100-R HANDSET PVC SHEET 003-90MU0000-R HANDSET TOP CAB (RED) 003-90MU0001-R HANDSET TOP CAB (WHITE) 003-90MU0002-R HANDSET TOP CAB (BLACK) 003-90MU0003-R HANDSET TOP CAB (SILVER) 003-90MU0004-R HANDSET TOP CAB (MOSS GREEN)
-
Page 19: Pc Boards And Parts List
SL-D910 5 PC BOARDS AND PARTS LIST MAIN PCB ASSY REF.NO TEAC PARTS NO. PARTS NO. DESCRIPTION REMARKS 100-D9101010-R MAIN PCB ASS'Y 062-SD910001-R MAIN PCB 94V-0 REV:01 241MM×108MM C9,C12 072-30470251-R E/C CAP 4700UF/25V M (H≤30MM） 072-30100161-R E/C CAP 1000UF/16V M ( 10×12MM) - Page 21 SL-D910 TUNER PCB ASSY REF.NO TEAC PARTS NO. PARTS NO. DESCRIPTION REMARKS 100-D9101040-R TUNER PCB ASS'Y 062-SD910003-R TUNER PCB 94V-0 REV:00 100MM×94MM CN401 082-20700100-R CONNECTOR 7PIN P=2.0MM CN402 082-10240100-R CONNECTOR 2PIN P=2.5MM D401,402,403, 077-00414801-R DIODE F4148 D404,405,406, D407,408 IC401 075-TA209901-R...
- Page 22 SL-D910 TUNER PCB...
-
Page 23: Control Pcb Assy
SL-D910 CD PCB ASSY REF.NO TEAC PARTS NO. PARTS NO. DESCRIPTION REMARKS 100-D9101030-R CD PCB ASS'Y 062-SD910002-R CD PCB FR-4 PLY=1.0MM REV:00 132MM×112MM CN201 082-20600100-R CONNECTOR 6PIN P=2.0MM CN202 082-21600305-R FPC CONNECTOR 16PIN P=1.0MM CN203,204 082-20400100-R CONNECTOR 4PIN P=2.0MM CN205 082-20600200-R CONNECTOR 6PIN P=2.0MM (BROWN) - Page 24 SL-D910 CD PCB CONTROL PCB...
- Page 25 SL-D910 BASS PCB ASSY REF.NO TEAC PARTS NO. PARTS NO. DESCRIPTION REMARKS 100-90MU1050-R BASS VR PCB ASS'Y 062-SD910005-R BASS PCB 94-HB REV:00 082-10300100-R CONNECTOR 3PIN P=2.0MM 069-SD901000-R VR:50KB+C <RA0901N0XOA-VA1-B503-T1-FA125B070> SNOOZE PCB ASSY REF.NO TEAC PARTS NO. PARTS NO. DESCRIPTION REMARKS...
- Page 26 SL-D910 BASS VR PCB SNOOZE PCB PHONE JACK PCB CD SWITCH PCB AUX JACK PCB...
- Page 27 SL-D910 USB JACK PCB ASSY REF.NO TEAC PARTS NO. PARTS NO. DESCRIPTION REMARKS 100-90MU1110-R USB JACK PCB ASS'Y 062-90MP3007-R USB JACK PCB 94-HB REV:00 052-SRL50010-R HORIZONTAL FERRITE CORE 055-90MP3000-R USB JACK USB A DIP180 REMOTE CONTROL PCB ASSY REF.NO TEAC PARTS NO.
- Page 28 SL-D910 USB JACK PCB REMOTE CONTROL PCB...
- Page 30 SL-D910 CD PCB...
-
Page 31: Included Accessories
SL-D910 7 INCLUDED ACCESSORIES INCLUDED ACCESSORIES REF.NO TEAC PARTS NO. PARTS NO. DESCRIPTION REMARKS 046-SD910010-R INSTRUCTION BOOK-E/F/G/N 046-SD910020-R INSTRUCTION BOOK-I /S REMOTO CONTROL(WHITE) REMOTO CONTROL(BLACK) REMOTO CONTROL(RED) REMOTO CONTROL(SILVER) REMOTO CONTROL(M-GREEN) REMOTO CONTROL(N-BLUE) WARRANTY CARD... - Page 32 SL-D910...
- Page 33 MAIN PCB SL-D910 AM/FM STEREO DIGITAL RADIO WITH CD PLAYER...
- Page 34 CD PCB SL-D910 AM/FM STEREO DIGITAL RADIO WITH CD PLAYER...
- Page 35 TUNER PCB SL-D910 AM/FM STEREO DIGITAL RADIO WITH CD PLAYER...
- Page 36 SL-910 REMOTE COTROL PCB SL-910 FRONT COTROL PCB SL-D910 AM/FM STEREO DIGITAL RADIO WITH CD PLAYER...
