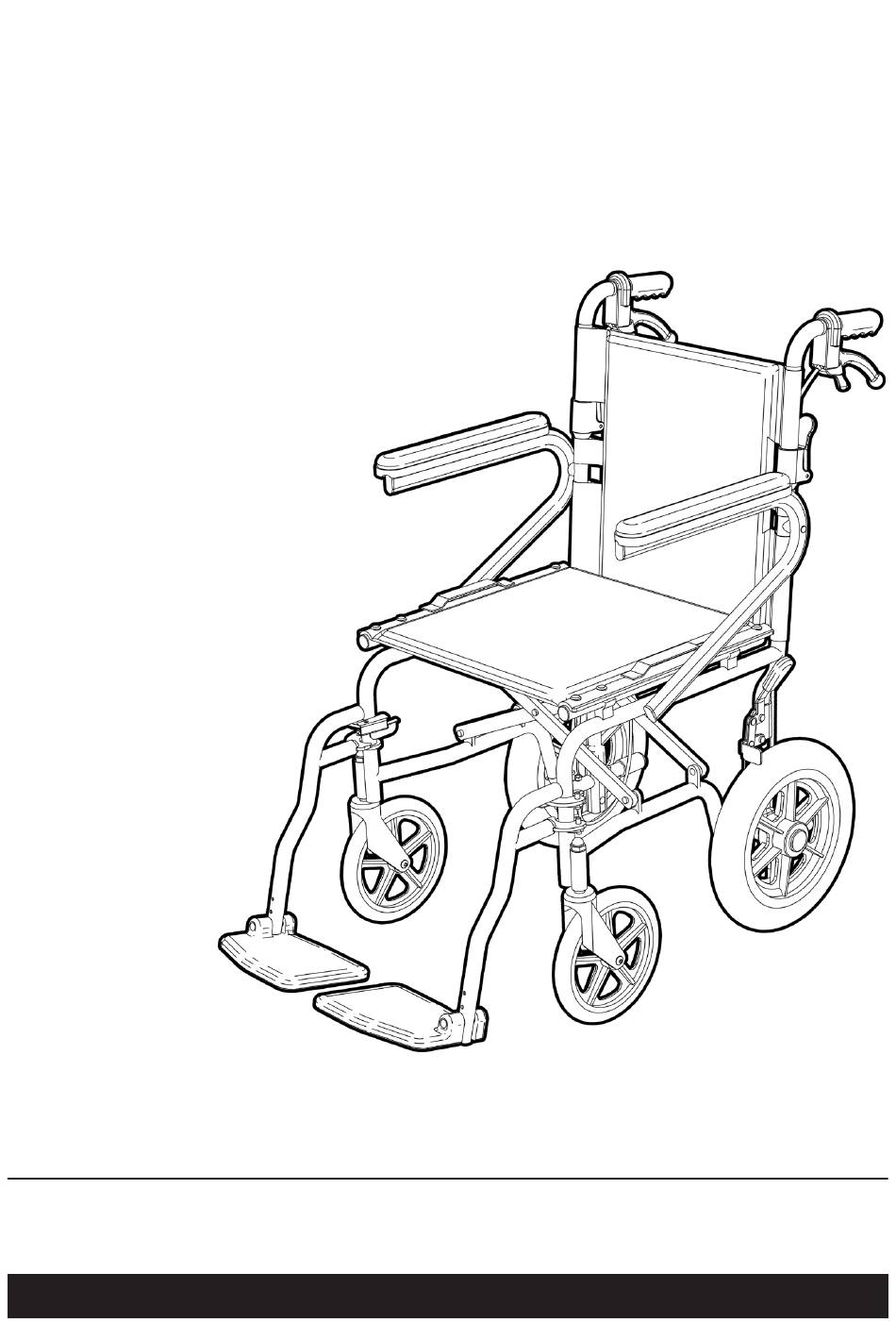

- Page 1 REDGUM brand A S S I S T E D L I V I N G P R O D U C T S OPAL TRANSIT WHEELCHAIR RG311Y18 RG311B18 Edition 2 USER MANUAL Please read and keep these instructions redgumbrandmobility.com.au...
- Page 2 REDGUM Brand owns the copyright to this Opal Transit Wheelchair user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of REDGUM Brand. REDGUM Brand strives to provide the highest quality products possible.
- Page 3 OPERATION - UNFOLDING / FOLDING BACKREST OPERATION - FIT / REMOVE SWING AWAY FOOTRESTS OPERATION - FOOTREST OPERATION - BRAKES USAGE GUIDELINES - SAFETY PRECAUTIONS PRODUCT CARE - INSPECTIONS / CLEANING WARRANTY REDGUM BRAND PRODUCT RANGE redgumbrandmobility.com.au ASK FOR THE BRAND...
-
Page 4: Intended Use
INTRODUCTION Thank you for purchasing this REDGUM Brand product. If you have any issues or questions about the OPAL Transit Wheelchair please contact your supplier or REDGUM Brand direct: T: +61 8 9248 4180 E: orders@for-de.com.au A: 1 Business Way, Malaga, Western Australia 6090 INTENDED USE This product has limitations and should be used in accordance to these guidelines. -
Page 5: Product Overview
Footrest: 175mm (W) x 150mm (D) x 450 / 430 / 410mm (H - from seat) Wheels: Ø200mm (8”) front swivel wheels / Ø300mm (12”) rear wheels Product Weight: 10kg Maximum Weight Loading: 136kg Please contact REDGUM Brand if you would like any further information on the OPAL Transit Wheelchair. redgumbrandmobility.com.au ASK FOR THE BRAND... - Page 6 ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS Ensure you have been supplied with the following parts: 1 x WHEELCHAIR 1 x RIGHT SWING AWAY FOOTREST 1 x LEFT SWING AWAY FOOTREST Tools supplied: 1 x SPANNER 2 x ALLEN KEY IMPORTANT NOTE Remove all the protective wrapping and check all the parts.
- Page 7 OPERATION - UNFOLDING / FOLDING WHEELCHAIR The OPAL Transit Wheelchair comes folded and requires unfolding prior to use. Please follow these steps: 1. Pull OUT on both of the armrests at the same time to open out the wheelchair. 2. Push down on the outside edges of seat to ensure wheelchair has been fully unfolded.
-
Page 8: Operation
OPERATION - UNFOLDING / FOLDING BACKREST The OPAL Transit Wheelchair comes with the folded backrest and requires unfolding prior to use. Please follow these steps: 1. Place your hand on the armrest. 2. Rotate up each backrest handle until it locks into position. - Page 9 OPERATION - FIT / REMOVE SWING AWAY FOOTRESTS The OPAL Transit Wheelchair comes with removable adjustable height swing up footrests. Please follow these steps to locate the swing away footrests onto the wheelchair: 1. Position the swing away at 90° to the wheelchair as shown.
- Page 10 OPERATION - FOOTREST The OPAL Transit Wheelchair comes with adjustable height swing up footplates. Both the footplates should be in the up position when the wheelchair is unoccupied. Rotate the footplates down once the occupant is sitting in the wheelchair. IMPORTANT NOTE: Ensure the footplates are in the up position when folding the...
- Page 11 OPERATION - BRAKES The OPAL Transit Wheelchair comes with attendant operated hand brakes located on the push handles and rear wheels. To ENGAGE BRAKE: PARTIALLY pull up on lever. (Brake will disengage when lever is released) To ENGAGE PARK BRAKE: FULLY pull up on lever until a loud ‘CLICK’...
- Page 12 If you have any issues or questions about the OPAL Transit Wheelchair please contact your supplier or REDGUM Brand direct. redgumbrandmobility.com.au ASK FOR THE BRAND redgumbrand.com.au...
-
Page 13: Product Care
Abrasive cleaners or abrasive cleaning pads could damage the wheelchair and should not be used. If you have any questions about the cleaning of the OPAL Transit Wheelchair please contact your supplier or REDGUM Brand direct. redgumbrandmobility.com.au ASK FOR THE BRAND... -
Page 14: Warranty
WARRANTY REDGUM Brand OPAL Transit Wheelchair is covered by a 12 month warranty from the date of purchase. During the guarantee period, if the company is satisfied there is a genuine fault, we will repair or replace the product at our earliest convenience. There may be freight charges if product needs to be returned to your place of purchase. - Page 15 Electric Beds High Low King Single Bed Portable / Fixed Aluminium Ramps Large range of spare parts for all REDGUM brand products Contact your supplier or REDGUM Brand direct for further information: T: +61 8 9248 4180 E: orders@for-de.com.au A: 1 Business Way, Malaga, Western Australia 6090 redgumbrandmobility.com.au...
- Page 16 DISTRIBUTOR: REDGUM brand A S S I S T E D L I V I N G P R O D U C T S Proudly Australian Owned and Operated redgumbrandmobility.com.au ASK FOR THE BRAND redgumbrand.com.au...
