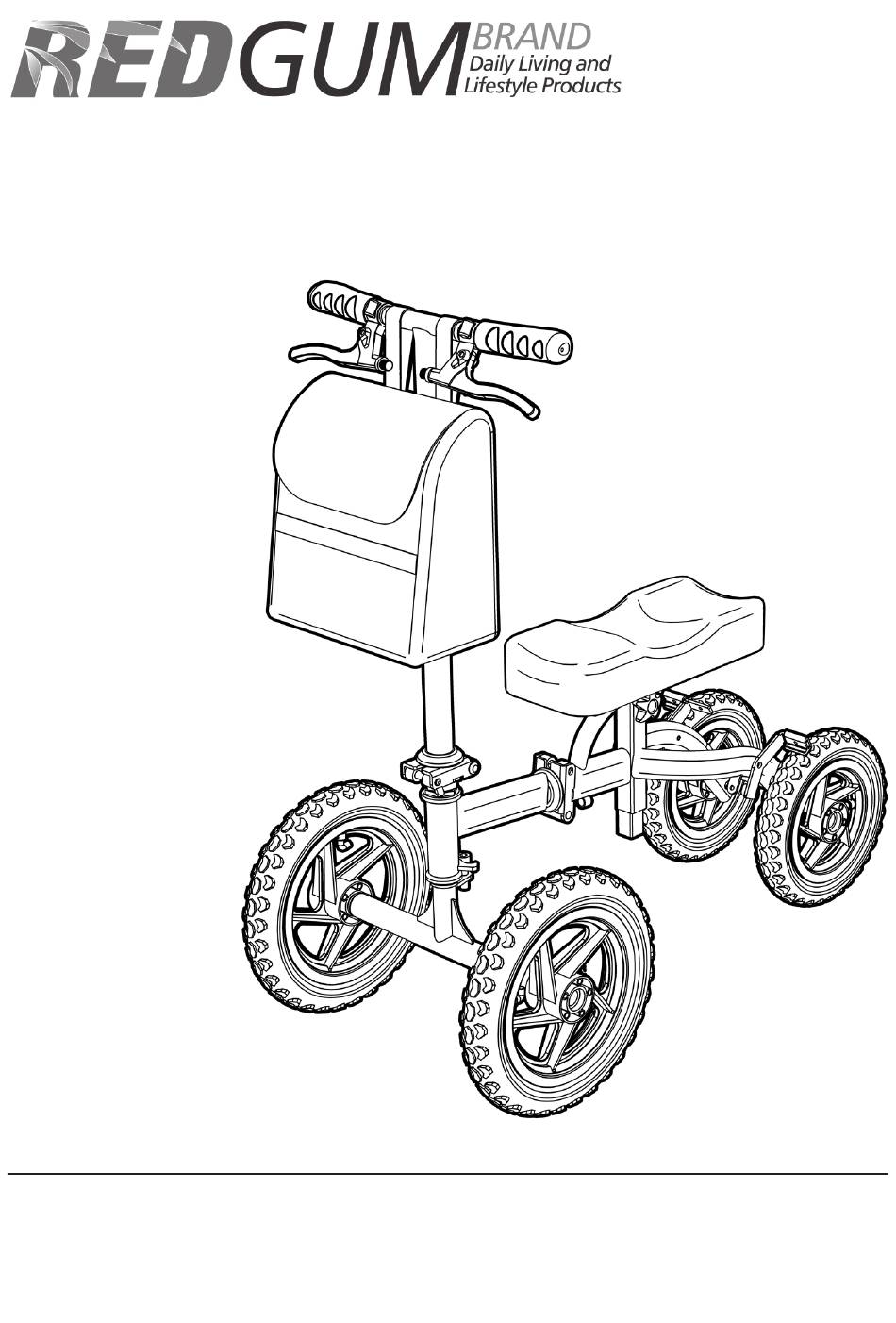

- Page 1 KNEE WALKER RG25KW Edition 3 USER MANUAL Please read and keep these instructions redgumbrand.com.au...
- Page 2 REDGUM Brand owns the copyright to the Knee Walker user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of REDGUM Brand. REDGUM Brand strives to provide the highest quality products possible.
-
Page 3: Table Of Contents
ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS ASSEMBLY - STEERING COLUMN ASSEMBLY - FRAME ASSEMBLY - HANDLEBAR ASSEMBLY - KNEEPAD ASSEMBLY - CARRY BAG USAGE GUIDELINES - DO’s + DON’Ts PRODUCT CARE - INSPECTIONS / CLEANING WARRANTY REDGUM BRAND PRODUCT RANGE redgumbrand.com.au... - Page 4 INTRODUCTION Thank you for purchasing this quality REDGUM Brand product. If you have any issues or questions about the Knee Walker please contact your retailer. INTENDED USE This product has limitations and should be used in accordance to these guidelines.
-
Page 5: Product Overview
PRODUCT OVERVIEW FEATURES Easy to assemble - NO tools required Adjustable height padded contoured kneepad Height adjustable handlebars Anti slide hand grips Left + Right hand dual locking brake system Large wheels for excellent mobility + stability Strong lightweight construction Folds down for storage and transport Removable carry bag with reflective strip Carry bag has external bottle / phone holder... -
Page 6: Assembly - Unpack And Inspect Supplied Parts
ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS Ensure you have been supplied with the following parts: PARTS: 1 x Kneepad 1 x Handlebar Note: Brake Cables not shown for clarity 2 x Adjustment Knob 1 x Frame 1 x Carry Bag 1 x Tyre Inflator (not shown) IMPORTANT NOTE... -
Page 7: Assembly - Steering Column
ASSEMBLY - STEERING COLUMN The main frame of the knee walker requires assembly prior to use. To set up the steering column as required, please follow these steps: 1. Rotate up the steering column on the front frame until the two mounting plates come together. - Page 8 ASSEMBLY - FRAME To set up the main frame as required, please follow these steps: 1. Rotate up the rear part of frame over until the two mounting plates come together. 2. Rotate the quick release lever up and over onto the top mounting plate. 3.
-
Page 9: Assembly - Handlebar
ASSEMBLY - HANDLEBAR The handlebar requires location into the steering column: Note: 1. Ensure the front of the handlebar is facing toward front of knee walker. Brake Cables not shown for clarity 2. Insert tube on handlebar into steering column. 3. -
Page 10: Assembly - Kneepad
ASSEMBLY - KNEEPAD The kneepad requires location into the frame: 1. Insert tube on kneepad into upright on rear frame. 2. Line up holes at required height setting and insert adjustment knob into hole. 3. Screw in adjustment knob to lock kneepad in position. -
Page 11: Assembly - Carry Bag
ASSEMBLY - CARRY BAG The Knee Walker comes with a carry bag. To fit the carry bag to the handlebar: 1. Undo the 3 velcro straps. 2. Postion carry bag onto handlebar as shown. 3. Wrap straps around handlebar to hold in place. (Top 2 straps onto horizontal tube - either side of upright Bottom strap onto vertical tube) Top straps... -
Page 12: Usage Guidelines - Do's + Don'ts
USAGE GUIDELINES - DO’s + DON’TS Please follow these guidelines to get the optimal benefit from your Knee Walker. Failure to follow these guidelines may result in damage to the Knee Walker and put the user at risk. 136kg Maximum User Weight. Do not lean too far to the side or backward causing the wheels to leave the ground. -
Page 13: Product Care
PRODUCT CARE - INSPECTIONS / CLEANING INSPECTIONS We suggest that you check your Knee Walker visually periodically for signs of damage or wear prior to use. Overall check that no components are loose or worn. Regularly check air pressure in tyres (2.0 pa). Withdraw the Knee Walker immediately if you suspect damage or any other fault. -
Page 14: Warranty
WARRANTY REDGUM Brand RG25KW - Knee Walker is covered by a 12 Month Warranty from the date of purchase. If the product has any manufacturing faults during this period contact the place of purchase for assessment. Failures as a result of ACCIDENTAL MISUSE, MODIFICATION OR WEAR AND TEAR ARE NOT COVERED BY THIS WARRANTY. -
Page 15: Redgum Brand Product Range
Toilet products Cushions: Air / Foam Electric Lift Chairs Electric Beds Portable / Fixed Aluminium Ramps Exercisers Personal Alarms REDGUM Brand stock a large range of Spare Parts for all REDGUM brand products. Please contact your retailer for further information. redgumbrand.com.au... - Page 16 DISTRIBUTOR: Proudly Australian Owned and Operated redgumbrand.com.au...
