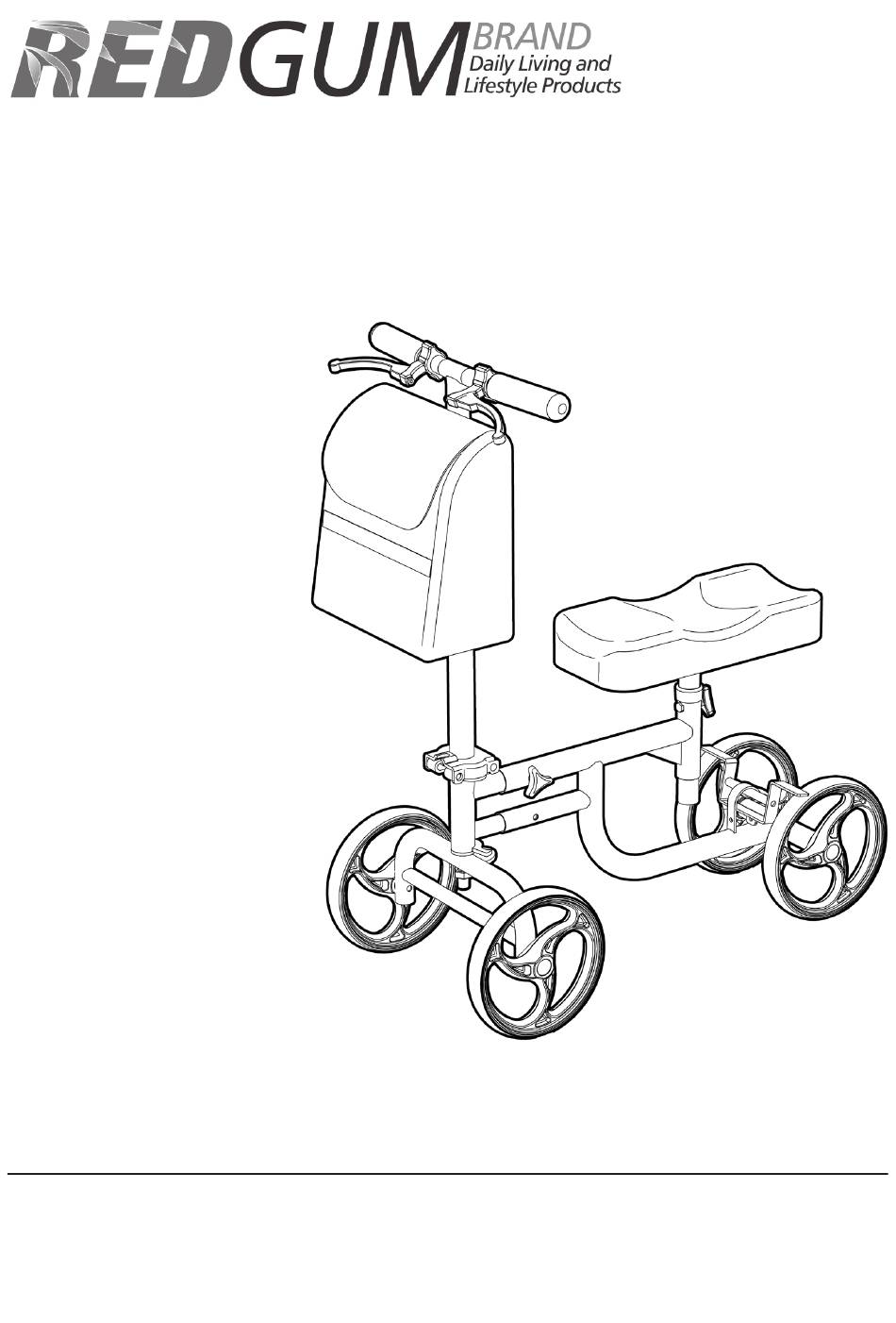

KNEE WALKER
RG20KW
June 2019
USER MANUAL
Please read and keep these instructions
redgumbrand.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the RG20KW and is the answer not in the manual?

Questions and answers

Related Manuals for REDGUM Brand RG20KW

Summary of Contents for REDGUM Brand RG20KW

  • Page 1 KNEE WALKER RG20KW June 2019 USER MANUAL Please read and keep these instructions redgumbrand.com.au...
  • Page 2 REDGUM Brand owns the copyright to the Knee Walker user manual. Any information contained in this user manual shall not be photocopied, reproduced or translated into any other languages without the prior written consent of REDGUM Brand. REDGUM Brand strives to provide the highest quality products possible.

  • Page 3: Table Of Contents

    ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS ASSEMBLY - STEERING COLUMN ASSEMBLY - FRAME ASSEMBLY - HANDLEBAR ASSEMBLY - KNEEPAD ASSEMBLY - CARRY BAG USAGE GUIDELINES - DO’s + DON’Ts PRODUCT CARE - INSPECTIONS / CLEANING WARRANTY REDGUM BRAND PRODUCT RANGE redgumbrand.com.au...
  • Page 4 INTRODUCTION Thank you for purchasing this quality REDGUM Brand product. If you have any issues or questions about the Knee Walker please contact your supplier or REDGUM Brand direct: T: +61 8 9248 4180 F: +61 8 9248 9452 E: sales@for-de.com.au...
  • Page 5 Handlebar Width: 400mm Handlebar Height: 840 - 1070mm (from floor to top of handlebar) Wheel Diameter: 200mm / 8” Product Weight: 9.6kg Maximum User Weight: 136kg Please contact REDGUM Brand if you would like any further information on your Knee Walker. redgumbrand.com.au...
  • Page 6 ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS Ensure you have been supplied with the following parts: PARTS: 1 x Kneepad 1 x Handlebar Note: Brake Cables 1 x Rear Frame not shown for clarity 1 x Front Frame 3 x Knob 3 x Bolt 1 x Carry Bag IMPORTANT NOTE...
  • Page 7 ASSEMBLY - STEERING COLUMN The main frame of the knee walker requires assembly prior to use. To set up the steering column as required, please follow these steps: 1. Rotate up the steering column on the front frame until the two mounting plates come together.
  • Page 8 ASSEMBLY - FRAME The front and rear frames of the knee walker need to be fixed together: 1. Line up the frames as shown. 2. Insert the tubes on the rear frame into the tubes on the front frame. 3. Depress the press button to allow the frames to continue to locate.

  • Page 9: Assembly - Handlebar

    ASSEMBLY - HANDLEBAR The handlebar requires location into the steering column: 1. Ensure the front of the handlebar is facing toward front of knee walker. 2. Insert tube on handlebar into steering column. 3. Line up holes at required height setting and insert bolt into hole.

  • Page 10: Assembly - Kneepad

    ASSEMBLY - KNEEPAD The kneepad requires location into the rear frame: 1. Insert tube on kneepad into upright on rear frame. 2. Line up holes at required height setting and insert bolt into hole. (Ensure hex head of bolt lines up with hex hole) 3.

  • Page 11: Assembly - Carry Bag

    ASSEMBLY - CARRY BAG The Knee Walker comes with a carry bag. To fit the carry bag to the handlebar: 1. Undo the 3 velcro straps. 2. Postion carry bag onto handlebar as shown. 3. Wrap straps around handlebar to hold in place. (Top 2 straps onto horizontal tube - either side of upright Bottom strap onto vertical tube) Top straps...

  • Page 12: Usage Guidelines - Do's + Don'ts

    USAGE GUIDELINES - DO’s + DON’TS Please follow these guidelines to get the optimal benefit from your Knee Walker. Failure to follow these guidelines may result in damage to the Knee Walker and put the user at risk. 136kg Maximum User Weight. Ensure ALL FOUR WHEELS remain on ground at all times when the Knee Walker is being used.
  • Page 13 PRODUCT CARE - INSPECTIONS / CLEANING INSPECTIONS We suggest that you check your Knee Walker visually periodically for signs of damage or wear prior to use. Overall check that no components are loose or worn. Withdraw the Knee Walker immediately if you suspect damage or any other fault.

  • Page 14: Warranty

    WARRANTY Your REDGUM Brand RG20KW - Knee Walker is covered by a 12 Month Warranty from the date of purchase. If the product has any manufacturing faults during this period contact the place of purchase for assessment. Failures as a result of ACCIDENTAL MISUSE, MODIFICATION OR WEAR AND TEAR ARE NOT COVERED BY THIS WARRANTY.

  • Page 15: Redgum Brand Product Range

    Electric Beds Portable / Fixed Aluminium Ramps Exercisers Personal Alarms REDGUM Brand stock a large range of Spare Parts for all REDGUM brand products. Please contact REDGUM Brand for further information: T: +61 8 9248 4180 F: +61 8 9248 9452 E: sales@for-de.com.au...
  • Page 16 DISTRIBUTOR: Proudly Australian Owned and Operated redgumbrand.com.au...
