Fujitsu QUADERNO 3C Usage Manual
  1. Manuals
  2. Brands
  3. Fujitsu Manuals
  4. Tablet
  5. QUADERNO 3C
  6. Usage manual
Fujitsu QUADERNO 3C Usage Manual

Fujitsu QUADERNO 3C Usage Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
B5FL-2101-01 Z0
Usage Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the QUADERNO 3C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fujitsu QUADERNO 3C

Summary of Contents for Fujitsu QUADERNO 3C

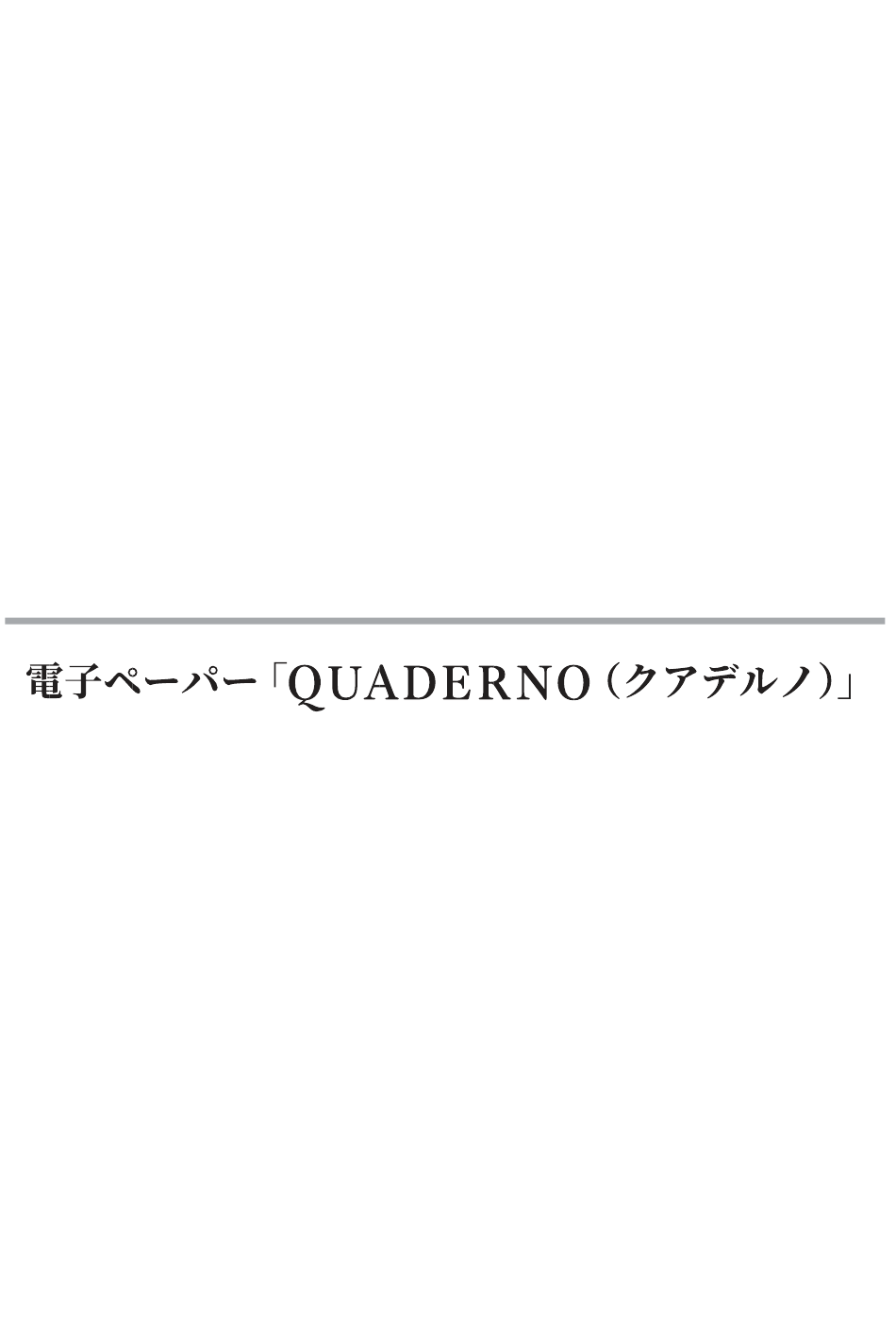

  • Page 1 B5FL-2101-01 Z0 Usage Guide...
  • Page 2 1 Initial Setup ... 2 Names of parts ... Quaderno Stylus Pen 3 Security Lock the screen Unlock the screen with a FeliCa card or compatible device 4 How to check the version Check the Quaderno software version .

  • Page 3: Table Of Contents

    9 Use templates Get the template Import Template table of contents Before You Read This Book ..............7 For safe use .
  • Page 4 Chapter 2How to use Quaderno 1 About basic functions ................Operate with the power button .
  • Page 5 Specify and display a page ..............Display left and right pages in a double-page spread .
  • Page 6 Notes on Updating Update . . . Chapter How to use the QUADERNO PC App 1 QUADERNO PC App Screen . . . 2 Install QUADERNO PC App on your computer . . . 3 Connecting a PC to a Quaderno .
  • Page 7 Updating the contents of a synchronized folder Cancel the sync setting 7 Search in the QUADERNO PC App ............Create memorization points Memorize in memorization mode 12 Make use of notes...

  • Page 8: Troubleshooting

    Search for documents and folders ............Search for documents that have written a specific mark .
  • Page 9 Pressing the Wi-Fi icon in the home menu does not respond . . . The image that was previously displayed on the screen remains faint . . . 2 Trouble with the stylus pen ..I can't operate the stylus pen .
  • Page 10 I can't transfer documents from my computer to Quaderno ........Can't find the Quaderno Recycle Bin on my computer .

  • Page 11: For Safe Use

    For safe use This manual contains important information to ensure safe and correct use of this product. Please read this manual carefully before using this product. In particular, please read and understand the "Safety Precautions" (→ p.12) carefully before using this product. End User License Agreement The "Terms of Use of Software"...

  • Page 12: About Consumables

    About consumables ● Generally, the battery pack will last 300~500 times of charging and discharging (depending on the temperature conditions and the usage environment). ● The replacement lead of the stylus pen needs to be replaced in a timely manner to maintain its performance / function.

  • Page 13: About Overseas Use

    used in industrial, scientific, and medical equipment such as microwave ovens, as well as on factory production lines. 1 Before using this equipment, make sure that there are no private radio stations for mobile identification, specified low-power radio stations, or amateur radio stations operating in the vicinity.
  • Page 14 ■ Symbols in this manual The symbols mentioned in this document have the following meanings: important It describes the precautions when using it and what not to do. Please be sure to read POINT It describes things related to the operation. Please read it if necessary. →...

  • Page 15: Trademarks And Copyrights

    Windows 11 Home Windows 11 Pro Windows 10 Home 64-bit Windows 10 Windows 10 Pro 64-bit Check the name of the target macOS on the app download macOS site. https://www.fmworld.net/digital-paper/support/download/ Microsoft Word Word Microsoft Excel Excel Bluetooth Bluetooth® ■ Warning display In this manual, various pictorial displays are used.

  • Page 16: Safety Precautions

    ScanSnap is a registered trademark or trademark of PFU Co., Ltd. in Japan. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Fujitsu Client Computing Limited is under license. QUADERNO is a registered trademark of Fujitsu Client Computing Limited.
  • Page 17 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●...
  • Page 18 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●...

  • Page 19: Precautions For Use

    ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●...
  • Page 20 ● Do not apply excessive force to the pen tip or pen buttons/switches. Doing so may result in malfunction, malfunction, or wear and tear of the pen tip. ● Do not bend the pen or keep the pen tip pressed against it. Failure to do so may result in malfunction or malfunction.
  • Page 21 in a car with the windows closed, the lens effect of the window glass may further promote overheating, which may cause this product to deform or malfunction, so please be careful. ● Do not install in places with a lot of oil smoke, steam, moisture or dust. ●...
  • Page 22 If the skin is left in contact for a long time, it may cause low-temperature burns. In addition, if it is left in contact for a long time, even over clothing, it can cause low-temperature burns. ■ Supported file formats The application can display data in the following file formats: However, depending on the file size and the format of the data, it may not be possible to display it.
  • Page 23 In this chapter, we'll cover what you need to know when you start using Quaderno. I will explain.

  • Page 24: Initial Setup

    1. Initialization................2. Name of each part . . 3. Security . 21 4. How to check the version . . 5. Transferring Documents . . . 6. Smartphone linkage ..7. In order to restore the Quaderno files . . 8.
  • Page 25 Download it from (https://www.fmworld.net/digital-paper/support/download/) and install it on your computer. Download the app for "FMVDP43C" or "FMVDP53C". Launch the "QUADERNO PC App" installed on your computer. Connect the attached USB cable to the USB 2.0 Type-C connector on the Quaderno and the USB connector on the computer.

  • Page 26: Name Of Each Part

    2. Name of each part Quaderno 1 Strap Hole 2 RESET button If the Quaderno gets stuck during operation, press the RESET button to restart it. 3 USB2.0 Type-C connector It is used when charging, when using the QUADERNO PC App, and when transferring files. Connect to a computer or USB Power Delivery charger with a USB cable.
  • Page 27 Startup completed or charging completed : It will blink 3 times when the power button is pressed. Note 6 NFC/FeliCa port Used to unlock the screen on FeliCa-enabled cards and devices. 7 Home button ( Display the home menu. In the home menu, you can check your Wi-Fi signal status, battery level, and more.
  • Page 28 Quaderno (for a fee), and the data will be erased after initialization. If you wish to initialize the product (for a fee), please contact the "Fujitsu Personal Product Inquiry Desk". We will keep it and initialize it. When entering the lock password, it is invalid to enter it with the [Tab] key and the [Space] key.
  • Page 29 Tap System Settings→ Screen Lock→ and then tap Unlock NFC Card Settings. Enter your lock password and tap OK. 4Tap Register NFC Card, and if you're prompted to turn on NFC, tap Yes. 5 Align the center of the FeliCa card or the (FeliCa mark) of your FeliCa enabled device with the (N mark) on the quaderno for approximately 2 seconds.

  • Page 30: How To Check The Version

    4. How to check the version You can check the version as follows: Check the system software version of the Quaderno system Follow the steps below to check the version of the Quaderno system software (firmware). Quaderno's (Home button) until you feel a "click" and tap "Settings" → "About this device" →...
  • Page 31 5. Transfer documents You can transfer documents between your computer and Quaderno. Transferring documents with the QUADERNO PC App See "Transferring Documents" (→ p. 94). Connect a USB cable to transfer documents (Windows only) If your computer's operating system is Windows, you can transfer documents without using the "QUADERNO PC App"...
  • Page 32 6. Smartphone linkage To transfer documents between your smartphone and Quaderno, install the "QUADERNO Mobile App" on your smartphone. The "QUADERNO Mobile App" can be downloaded for free from Google PlayTM for AndroidTM and the App Store® for iOS. How to install the QUADERNO Mobile App ■...
  • Page 33 QUADERNO Mobile App Help Guide In the upper right corner of the QUADERNO Mobile App, click You can display it by tapping (Menu) and viewing the "Help Guide" from the displayed menu. POINT license agreement will be displayed when you start the "QUADERNO Mobile App" for the first time. Read } The it carefully and tap "Agree".
  • Page 34 8. Take advantage of the scheduling format In order to use the quaderno like a notebook, we have prepared a schedule format. Get the schedule format Please download it to your computer from "Download" on the product information site. Mastering the Schedule Format ■...
  • Page 35 ■ Links The schedule format has the following links to facilitate navigation between pages: Links are marked with a dotted line underneath. Monthly Schedule Page Link to the monthly schedule page for each month Weekly Schedule Page Link to the daily schedule page Link to weekly schedule page Link to the monthly schedule page Note: Formatting is subject to redesign or deletion without prior notice.

  • Page 36: Importing A Template

    Please download it to your computer from "Download" on the product information site. Importing a template ■ Import a template from a computer (Windows) You can connect your computer (Windows) to your Quaderno with a USB cable and import the PDF you want to use as a template.
  • Page 37 This chapter describes the basic operation of the Quaderno.

  • Page 38: Basic Functions

    ..............................38 1. Basic Functions ................................45 2. About Sleep .............................. 46 3. Refresh the screen ..............................46 4. Open the document ................... 51 5. Create, rename, duplicate, move, and delete folders ......................53 6. Rename/Duplicate/Move/Delete Documents ............................57 7. Read the documentation ........................

  • Page 39: Home Menu

    The charging lamp lights up red when charging, and the charging lamp turns off when charging is complete. POINT If the charging lamp flashes red three times, the battery is low. Charge it. ■ Put it in sleep mode With the power on, press the power button ( ) in the toolbar. By putting it in sleep mode, it reduces battery consumption.
  • Page 40 ・ Schedule You can list all documents in the Schedules folder. ・ Create notes Create a new notebook (→ p.69). - Importing from the ScanSnap You can import documents scanned with the optional ScanSnap directly to the Quaderno using a Wi- Fi network (→...

  • Page 41: About The Battery

    ■ Close the home menu Press the Home button until it clicks, or tap anywhere outside the Home menu. About the battery When you press the (home button) until you feel a "click", the battery icon will appear in the upper right corner of the home menu, and you can check the battery level and charge status of the Quaderno.
  • Page 42 Select a different document from the list of recently opened documents or documents in the same folder as the document you are viewing. 3 Search ( Enter text or select handwriting marks to search. 4 History Jump When you navigate from a table of contents, a page designation, or a link in a document, the number of the last open page appears below and you can tap it to go to that page.
  • Page 43 to undo handwriting, highlighting, eraser, and copying, cutting, and pasting handwriting. to undo and redo handwriting, highlighting, eraser, and copying, cut, and paste handwriting. important undo/redo function resets when you move the page. 8 Function settings for the pen tip ( ) to display the Pen Tools panel.
  • Page 44 ■ Hide the toolbar Tap outside the toolbar.

  • Page 45: About Sleep

    2. About sleep When you don't use your Quaderno for a while, you can put it to sleep to reduce power consumption. Sleep is to store the data you are working on in memory and put the Quaderno in a standby state. You can get back to work faster than you can turn it off and on again.

  • Page 46: Refresh The Screen

    When prompted, tap Yes. When the message "You have set this screen to sleep" appears, tap "OK". POINT If you want to set the sleep screen to the sleep screen (standard) or the pre-sleep screen at the time of purchase, click "Sleep Screen Settings" (→ p.79).

  • Page 47: Open From The Document List

    Schedule Sample .pdf … 2021/1 /21 6:09 p.m. Update FUJITSU CLIENT COMPUTING LIMITED / SampleScheduler 1 You can select the types of documents that you want to display in the list. ・ All documents A list of documents in the Quaderno is displayed.
  • Page 48 Tap the folder that contains the document you want to view to open it. Tap the document you want to view. The documentation includes the, in the notebook appears on the left. If it is unread, it will be displayed.

  • Page 49: Switch Between Documents

    ■ Search by folder screen 1 To return to a parent folder, tap the folder name at the top of the screen. 2 You can change the sort order by "Viewed date and time", "Modification date and time", and "Name". 3 You can change the sort order to ascending or descending.
  • Page 50 Quick Access Lists Select a document from the list displayed in "Documents in the same folder". （1） Tap here. （2） "Recently Opened Documents" Tap it. Tap the document you want to view. The documentation includes the, in the notebook appears on the left. If you haven't read it, clickis displayed.

  • Page 51: Create A Folder

    5. Create and rename/duplicate/move/delete folders Create a folder (Home button) until you feel a click, then tap Find in Folder. Display the location where you want to create a new folder. For details on how to open a folder, see "Select and open from a folder" (→ p.38). Create a new folder 4When the "Create a new folder"...
  • Page 52 Enter a name for the folder and tap OK. The folder is duplicated. ■ Move a folder In the menu that appears, tap "Move Folder". An additional move icon appears. Open the location where you want to move the folder. ■...

  • Page 53: Rename/Duplicate/Move/Delete Documents

    6. Rename/Duplicate/Move/Delete Documents Operate from the document screen You can rename, duplicate, or delete it. ■ Rename a document Tap anywhere on the document screen to display the toolbar. In the upper right corner of the screen, click Tap (optional) → Rename Document. When you change the name of the document, tap OK.

  • Page 54: Operate From "Search By Folder

    When the confirmation message appears, tap "Yes". Deleted documents are moved to the Trash folder. POINT The Trash folder cannot store more than 1 GB. If it is more than 1 GB, you will be prompted to confirm that you want to support it. Tap "Yes" to permanently delete it without putting it in the "Trash" folder, or tap "No"...

  • Page 55: Operate From "Search From List

    ■ Delete a document Open the location where you want to move the In the menu that appears, tap document. Delete Document. When a confirmation message appears, tap Yes. Deleted documents are moved to the Trash folder. POINT The Trash folder cannot store more than 1 GB. If it is more than 1 GB, you will be prompted to confirm that you want to support it.
  • Page 56 POINT The Trash folder cannot store more than 1 GB. If it is more than 1 GB, you will be prompted to confirm that you want to support it. Tap "Yes" to permanently delete it without putting it in the "Trash" folder, or tap "No"...

  • Page 57: Read The Documentation

    ■ Work with files and folders in the "Recycle Bin" folder 1Tap the "Trash" folder. The inside of the "Recycle Bin" folder is displayed. 1 To move it out of the Trash folder, tap System Memory. 2 You can change the sort order by "Deletion date and time" and "Name". 3 You can change the sort order to ascending or descending.
  • Page 58 Tap the screen to bring up the toolbar. toolbar Tap the appropriate part of the page position display displayed in the top center. Pagination display If you move a page from a table of contents, a page designation, or a link in a document, you can also use "History Jump"...

  • Page 59: Turn The Page

    Turn the page Swipe the screen to see the following page: If you want to go back to the previous page, swipe in the opposite direction. POINT Swipe from right to left if you set Page Orientation Settings to Open Left, or from left to right if you set Open Right.

  • Page 60: Display A List Of Pages And Switch Between Pages

    In the upper right corner of the document screen, click Tap (Optional) → Page Orientation Settings. Tap "Open Left" to swipe from right to left to turn the page, or tap "Open Right" to turn the page from left to right. Display a list of pages and switch between pages You can search for pages by displaying a list of 16 pages on one screen.

  • Page 61: Display Left And Right Pages In A Double-Page Spread

    Specify and display a page Specify a page to display. Tap anywhere on the document screen to display the toolbar. In the upper right corner of the document screen, click (Optional) → tap Move Page. Enter the page you want to view, then tap OK. Display left and right pages in a double-page spread Displays a single document with two pages at a time in a double-page spread.

  • Page 62: Side-By-Side Documents

    If you select "No Cover", it will be displayed from the first page, and if you select "With Cover", it will be displayed as a spread from the second page. ■ Return to page view Tap 1 (optional) → Single Page View. important When viewing in a double-page spread, you cannot view two documents side by side, create side notes, or add/delete pages from notes.
  • Page 63 If you want to exit zoom mode, tap in the top right corner of the screen The magnification is displayed in the upper left corner of the screen. You can use it as an estimate of how far you want to expand. You can't turn pages while zooming in.
  • Page 64 4.Tap where you want to zoom in, or wrap your finger or pen around the area you want to zoom into.

  • Page 65: Register Your Favorite Documents

    Register your favorite documents You can mark a document as a favorite. When it is marked as a favorite, the icon on the left side of the document is from It will change to . Document List (→ p.38) and (Quick Access List) (→...
  • Page 66 Tap to the left of the document ■ Cancel with "Search from folder" (Home button) until you feel a click, then tap Find in Folder. Displays the location of the document you want to work with. For details on how to open a folder, see "Select and open from a folder" (→ p.38). Tap to the left of the document ■...

  • Page 67: Search Within A Document

    Search You can search for documents and search within documents by text and marks. If you handwrite a specific mark in the Quaderno , you can search for it by that mark. Search within a document ■ Search for text in a document Search for a string in the document you are viewing in Quaderno.

  • Page 68: Search For Documents

    Tap one of the search results. Go to the page you tapped. Exit □ search Tap anywhere outside the search screen. Search for documents Documents moved to the Trash folder cannot be searched. ■ Search by document information, etc. You can search for the file name in the quaderno or the title/author set for the document. (Home button) until you feel a click, then tap Search List.

  • Page 69: Adjust The Position Of The Pen Tip

    "Back to List" in the upper left corner of the screen. 10. Write in a document Adjust the position of the pen tip Set the way you hold the stylus pen to compensate for the misalignment between the position where the pen tip is applied and the position where it is written.

  • Page 70: Handwrite Directly On A Document

    Handwrite directly on a document Use a stylus pen to handwrite directly on the page. Just like when writing with a pencil or ballpoint pen on paper, you can write with your palm firmly on the screen. When you write by hand, what you write will be saved.
  • Page 71 ・: Ballpoint pen You can draw a line with a certain thickness. ・: Fountain pen It supports low pen pressure and can express tome, honey, and harai. ・: Brush pen You can freely draw line widths according to pen pressure. The range of expressions such as sketching also expands.

  • Page 72: Using An Eraser

    4 Change the position of the Pen Tools panelEach time you tap, it moves → left edge→ bottom right edge→, and then top. 5 Close the Pen Tools panel. 6 Eraser settings and when set as an eraser. Tap to set the size of the eraser. The icon of the selected size is marked with a line.
  • Page 73 Any handwriting or highlights you touch with the pen tip will be deleted. Side Button ■ Turn off with the tail switch Press the tail switch of the stylus pen against the screen and touch the handwriting or highlight while switching it on. Handwriting and highlights touched by the tail switch will be deleted.

  • Page 74: Add Highlighting

    Add highlighting The functions of the side button and tail switch can be switched to highlight (→ p. 78). important You can't highlight it if: - Documents scanned (entire pages are image data) - Text embedded as an image ・ Handwritten part in Quaderno - Notes that do not contain text Only text data can be highlighted.

  • Page 75: Copy, Cut, And Paste Handwriting

    (How to hold a stylus pen is an example.) ） Copy, cut, and paste handwriting Handwriting written on the quaderno can be copied/cut/pasted. On the document screen with the handwriting you want to copy or cut, tap anywhere to display the toolbar. Tap (Extended Toolbar button) in the upper left corner of the document screen, and then tap (Select Range).

  • Page 76: View The Write List

    ■ When you want to move the cut handwriting within the same screen Range: Drag the selected handwriting to where you want to move it, then tap Confirm or click Tap an outside location with your pen. important Paste is a one-time operation. After one paste , (Paste) is hidden.

  • Page 77: Use Memorization Mode

    11. Use memorization mode In memorization mode, the The part with the marker and highlight (memorization point) is filled in black (ma green Suku) and can be hidden. This feature is useful when memorizing important words. Create memorization points If you want to use handwritten characters with a stylus pen as memorization points, fill them with a marker after entering your handwriting.
  • Page 78 ) in the toolbar. Memorization mode You will be in memorization mode, and the memorization points will be masked (filled in black) and the letters below will be hidden. Memorization mode (invisible) status indication 3 Tap the memorization point you want to check with the pen to see if you have memorized Tap with your pen over the memorization point you want to check to remove the mask.
  • Page 79 POINT } If you want to switch between masking / unmasking memorization points at once, (visible)/ tap the memorization mode status display (invisible). When only part of the mask is unmasked (visible). In that case, tap it once and tap (invisible), mask everything once, and tap again.
  • Page 80 Open a note Like documents, you open notes from the Document List or Quick Access List. You can also choose to list only notes. (Home button) until you feel a click, then tap Search List. If all documents are displayed, tap All Documents in the upper-left corner of the screen, then select Notes from the menu that appears.
  • Page 81 POINT You can only create one side note per document. If you want to create a side note that is different from the existing one, display the document and the existing side note side by side, and then click Tap (Optional) → Create a new side note for this document.
  • Page 82 13. Transfer documents on your computer (Windows) and Quaderno If you are using macOS, use the "QUADERNO PC App" to transfer documents (→ p. 102). Transfer documents from your computer 1 Connect the included USB cable to the USB 2.0 Type-C connector of the Quaderno and to the USB port of your computer.
  • Page 83 4. When prompted, tap Yes. 2 Connect the supplied USB cable to the USB 2.0 Type-C connector on the Quaderno and to the USB port on your computer. POINT } When connecting/disconnecting the USB cable, unplug and plug it in straight.
  • Page 84 Tap . If the "Note Template" screen is not displayed, do the following: 1. (Home button) until you feel a click, then tap Settings → Device Settings → then Note Templates. 2. Tap to the right of "Select a template to use when creating notes." 3.
  • Page 85 14. Look at the sheet music You can use the Bluetooth foot pedal to turn the pages of a document. Also, when you turn the pages of a document in "facing view", you can change the pagination order to "read ahead", which displays the next page first on one side of the spread.
  • Page 86 4Tap "Bluetooth Settings" → "Add Bluetooth Device to the Unit". 5Select the foot pedal from the "Bluetooth Device List". If the foot pedal you want to connect to is not displayed, tap "Refresh Bluetooth Device List". When you see "Bluetooth pairing complete," tap "OK". Set the pagination order Tap anywhere on the document screen to display the toolbar.

  • Page 87: Change Settings In Quaderno

    15. Change settings in Quaderno (Home button) until you feel a click, tap Settings, and describe the items that appear. wireless ■Wi-Fi Turn the Wi-Fi feature on or off. You can also switch between the icons in the home menu. For details, see "Wi-Fi network status"...
  • Page 88 ■ Start the Wi-Fi access point The Quaderno acts as a Wi-Fi access point and can be connected to a smartphone with the QUADERNO Mobile App installed. When you tap it, the SSID and password of this Quaderno will be displayed, so use the "QUADERNO Mobile App"...
  • Page 89 □ Screen Lock ● Screen lock You can set a lock password of between 4 and 20 alphanumeric characters and symbols to lock the screen of your Quaderno. ● Change lock password Change the Quaderno lock password. ● NFC card settings used for unlockingRegister FeliCa cards, FeliCa compatible mobile phones, smartphones, etc.
  • Page 90 important you start Quaderno for the first time after initialization, be sure to tap "Start/Start". When If you have tapped "Using Setup Tool", tap "Cancel" on the next screen, and then tap "Start". ■ About this device □ device information Displays the amount of available space in the system memory, "Software version", "Device ID", "MAC address", and "Bluetooth address".

  • Page 91: Importing From The Scansnap

    16. Importing from the ScanSnap If you purchase the ScanSnap (sold separately), you can import scanned documents directly to the Quaderno without going through a computer. Depending on the ScanSnap you are using, there are differences in the functions that can be used. For details on the available functions, refer to the ScanSnap support information.
  • Page 92 Load a document into the ScanSnap and prepare it for scanning. Multiple documents that are loaded together become a single document. POINT } Additional documents can be scanned as additional pages of the same document. In that case, load the additional document in step 8 and Tap Continue Scan.
  • Page 93 ② ③ ④ ⑤ ⑥ } Tap (1) to switch the ScanSnap that you are using. For details, see →P.85). "Switching the ScanSnap to be used" ( } Tap (2) to display the image quality setting screen and select the image quality.
  • Page 94 When the inserted document is scanned, this screen is displayed again. POINT } If you are using the ScanSnap iX100, [Continue Scan] is not displayed. When the paper is loaded, the next scan starts automatically. - When you have already scanned the paper you want to create as a single document, tap "Complete Scan". Skip to step 9.

  • Page 95: Updating The Quaderno Console Software

    Tap one depending on the situation. [Import from ScanSnap] is finished, and the screen switches to the [Document list] window. The imported document is saved in the "Received" folder and displayed on the screen. Return to step 7. ■In the window that appears after you tap the connected ScanSnap that you want to switch the ScanSnap that you are using, perform the following operations.
  • Page 96 Please update the software of the Quaderno unit to the latest version. Precautions for updating ● It is recommended to back up before updating, just in case (→ p.96). ● The update may take several tens of minutes. Do it when you have time. ●...
  • Page 97 Let's take a look at how it works.
  • Page 98 1. QUADERNO PC App Screen . . . 2. Install QUADERNO PC App on your computer . . 3. Connecting a PC to a Quaderno. . 4. Transferring Documents . . . 5. Back up . . 6. Synchronizing your computer with your computer. . 7.
  • Page 99 menu You can perform the operation of "QUADERNO PC App". POINT } For macOS, it's at the top of the screen. 2 Connection status with Quaderno, free space / usable space of main unit memory 3 backup You can back up your entire Quaderno data together and import it all together (→ p. 96). 4 Synchronize the destination folder on the sync computer with the source folder of the Quaderno.

  • Page 100: Quaderno Pc App Screen

    :document : Documents to be synchronized :notebook : Notes to be synchronized : Appears in unread documents/notes. :folder : Folder to synchronize • When you right-click, a menu that can be operated according to the situation is displayed. - Double-click a folder name to switch to that folder. POINT The "Recycle Bin"...
  • Page 101 3. Connect your computer to Quaderno If you connect a Quaderno that has already been paired with the "QUADERNO PC App" to a computer, you can transfer documents. For details on pairing, see "Installing the QUADERNO PC App on a Computer" (→ p.90). There are three ways to connect to a computer: connect using the attached USB cable, connect via Wi-Fi, and connect using the Bluetooth function.

  • Page 102: Connect Via Bluetooth

    Connect the Quaderno to the computer with a USB cable. Launch "QUADERNO PC App" on your computer. 4Click "Settings" in "QUADERNO PC App" and set "E-paper Wi-Fi" to "On". Click Add below the list of saved Wi-Fi networks to add the Wi-Fi network to the Wi-Fi network list.
  • Page 103 2. Turn on "Bluetooth" and click "Add Device" under "Devices". ・For Windows 10 (Settings) → click Devices. 2. Turn on Bluetooth, then click Add Bluetooth or other devices. 2. Click on "Bluetooth". 3. Click the name of your Quaderno Bluetooth device. 4.

  • Page 104: Check The Connection Status

    Check the connection status If "Connected" is displayed in the upper left corner of the "QUADERNO PC App" screen, the Quaderno and the computer are connected normally. POINT The 2.4 GHz band used by Bluetooth-enabled devices is a radio band shared and used by various devices. Therefore, we use technology to minimize the impact from devices that use the same radio band, but due to the limitations of the Bluetooth standard, the radio wave situation and multiple When a Bluetooth-enabled device is connected, the communication speed may decrease, the communication range...
  • Page 105 4. Transfer documents Learn how to transfer documents stored on your computer to Quaderno, or how to transfer documents edited on Quaderno to your computer. Transfer documents from your computer Use the "QUADERNO PC App" to transfer documents. Only PDF files can be transferred to Quaderno. Connect your computer to the Quaderno.
  • Page 106 Display the print screen, and select "Print to QUADERNO" from the printer list to print. ■ For macOS DISPLAY THE PRINT SCREEN, CLICK PDF → THEN CLICK PRINT TO QUADERNO. - When you perform a print operation, "QUADERNO PC App" starts. Non-PDF files, such as the home page and the website, are converted to PDF files for transfer.

  • Page 107: Back Up

    5. Back up In case the files stored in the Quaderno are damaged or the files are destroyed, be sure to back up the important records to your computer. To use the backup function of "QUADERNO PC App", you need to connect the computer to Quaderno with a USB cable.
  • Page 108 Click "Backup". 4When the Backup window pops up, select the backup data and click Import Backup. When a confirmation message appears, tap "OK". When the message "Import is complete" is displayed, click "OK". Delete backup data In order to reduce the data capacity of your computer, you can also delete backup data that you no longer need.
  • Page 109 6. Sync your Quaderno with your computer You can use the QUADERNO PC App to synchronize PDF files in a folder between a specific folder on your computer and a specific folder in Quaderno. If you set up synchronization, you can easily share the latest status without having to move files in and out, whether you are using a computer or a quaderno.
  • Page 110 The resulting PDF file is the one that has been modified. If you delete it in one of them, it will no longer exist in both. If you edit the same PDF file on both your computer and Quaderno, the PDF file on your computer will remain with the original file name and the PDF file on your computer will be saved with a...

  • Page 111: Search On The Quaderno Pc App

    Launch "QUADERNO PC App" on your computer. "QUADERNO PC App", select the folder you want to synchronize and click (Set Destination Folder). When the confirmation screen appears, click "Select folder". Select a folder on your computer on the folder selection screen. If the synchronization settings are successful, the icon of the target folder/document/note will change Click Sync.
  • Page 112 If you want to search all documents, click "Document List". If you want to search within a specific folder, click "Folder" and select the folder you want to search. 4Click "File Information", enter a string in the "File name, title, author" field, and click "Search".
  • Page 113 8. Change Quaderno Document/Folder Structure You can use "QUADERNO PC App" to create folders in Quaderno and rename/move/copy/delete folders/documents. Notes on making changes ● If some special characters are used in the folder name or file name, it may not be displayed correctly.
  • Page 114 ■ Delete Select the folder/document and click (Delete). When the confirmation screen appears, click Yes. important If you delete a file or folder in the "QUADERNO PC App", it will not be stored in the "Recycle Bin" folder of Quaderno. 9.
  • Page 115 Connect your computer to the Quaderno. Launch "QUADERNO PC App" on your computer. Double-click the document you want to view. The PDF viewing app on your computer will launch and display the document as read-only. The document will be temporarily stored on your computer, but it will be deleted when you close the QUADERNO PC App.
  • Page 116 Work with multiple quadernos The "QUADERNO PC App" allows you to operate multiple Quadernos. You can pair it with a second or subsequent Quaderno and switch between them, or unpair it from the currently paired Quaderno. important Do not operate during synchronization. POINT can find your Quaderno device ID by following these steps: 1.

  • Page 117: Changing Settings In The Quaderno Pc App

    Unpair Connect the quaderno you want to unpair. Click "Tools" → "E-paper switching" in the menu bar. When a confirmation message appears, click Yes. 4When the "Switch e-paper" window appears, select the Quaderno device ID you want to delete, and then click Click Delete.
  • Page 118 - Upper limit on the number of log files Set a limit on the number of files to save. - Log output range: You can select the output range. The size of the range can be "Important items only" < "Standard items" < "All items". ●...

  • Page 119: Update The Quaderno Pc App

    13. Update the QUADERNO PC App When using this product, please update the "QUADERNO PC App" to the latest version. Precautions for updating ● The update may take several tens of minutes. Do it when you have time. ● If communication security software such as a firewall is installed, communication between "QUADERNO PC App"...
  • Page 120 After this, follow the on-screen instructions. Update manually You can also update the "QUADERNO PC App" manually. (1) Click "Help" and (2) click "Update Software". ① ② After this, follow the on-screen instructions.
  • Page 121 14. Update the Quaderno console software from the QUADERNO PC You can also update the software of the Quaderno console manually from the "QUADERNO PC App". Precautions for updating ● It is recommended to back up before updating, just in case (→ p.96). ●...
  • Page 122 POINT The update may take several tens of minutes. You can also select "Close" and do so when you have time (→p. 109). The message "Do you want to create a backup before updating your console software?" appears. If necessary, click "Backup"...
  • Page 123 This chapter describes what to do when you are in trouble.
  • Page 124 1. Quaderno Troubles . . 2. Trouble with the stylus pen . . 3. Network Problems . . 4. Documentation Troubles . 5. Problems connecting to a computer. . 6. Problems When Scanning from the ScanSnap . . . 122 7.

  • Page 125: The Power Does Not Turn On

    1. Quaderno troubles The power does not turn on ● If the charging lamp flashes red three times when the power button ( ) is pressed, the battery level is low. Use the included USB cable to connect the Quaderno to your computer or USB Power Delivery-compatible charger for charging.
  • Page 126 ● When the computer is in sleep mode, standby mode, or hibernation, the Quaderno may not be charged the battery may be consumed even if it is connected to the computer. Make sure that your computer doesn't go into sleep mode or anything like that. ●...
  • Page 127 ● The screen may be dirty. Gently wipe the screen with a soft cloth. For details, see "Care" (→ p.124). Pressing the Wi-Fi icon in the home menu doesn't respond ● If the battery level of the main unit is 10% or less, the Wi-Fi function will be automatically turned off and cannot be operated.
  • Page 128 1.5mm（1/16in） 1.5mm (1/16in) stylus pen included as standard Follow the steps below to change the lead of the stylus pen. Ramie Stylus Pen (sold separately) Firmly pinch the base of the nib with a wick and pull straight out of the pen. Check the orientation of the replacement nib, scissor it with a wick, and insert it straight into the pen.
  • Page 129 3. Network troubles I can't set up or connect to a Wi-Fi network ● Please refer to "Connecting via Wi-Fi" (→ p.91) to check the settings/connection method. ● If the Quaderno battery is low, you may not be able to connect to the Wi-Fi network. After charging your Quaderno, connect it to a Wi-Fi network.
  • Page 130 Tap Settings→ Wi-Fi Settings→ and then tap the SSIDs you can connect to in the Network List. ● The distance between the quaderno and the wireless router may be too far. Move the Quaderno to a location closer to the wireless router. ●...
  • Page 131 Characters are not displayed ● User-defined characters and special symbols may not be displayed. I can't manipulate the document (I can't use the pen, tap, etc.) ● When the Quaderno is sleeping, the document may be displayed as a sleep screen. Wake up.
  • Page 132 ● Make sure that the correct app is installed on the target OS. Make sure that your computer is the target OS and that the icon on the desktop is "QUADERNO PC App". Please check the target OS in "System requirements of QUADERNO PC App" (→ p.131). ●...
  • Page 133 Please. Please note that resetting may delete the writing, note content, and setting information on the document. Power Button Reset button ● Resident programs such as security software may be temporarily suspended to improve them. POINT For Wi-Fi connection and Bluetooth connection problems, see "Network Troubles" (→ p. 116). I can't transfer documents from my computer to Quaderno ●...
  • Page 134 When you connect to a Quaderno with the "QUADERNO PC App", the time of the Quaderno is automatically reset to the time of the computer. I can't create a backup ● You may not have enough free space for backup. In order to create a backup, please make sure that you have free space (approximately) for both of the following: -Backup storage destination: Free space equal to or greater than the total amount of data to be...
  • Page 135 6. Problems Importing from the ScanSnap You have pressed the "Scan" button on the ScanSnap. ● Must be operated with a quaderno. Tap [Scan] on the [Scan] window to import documents. For details, see "Import" (→ p.82). The error message "The unit's Wi-Fi is turned off" is displayed. ●You may not be able to connect to a Wi-Fi network.

  • Page 136: Saving Log Files

    7. Saving log files You can save the log file of "QUADERNO PC App". Please use it when making inquiries. When you contact the support desk, it may be helpful to solve the problem. Configuring log files You can set whether to save log files, the number of files to be saved, the log size, and the output range in "QUADERNO PC App"...

  • Page 137: Caring For The Pen

    8. Care I will explain the daily care to ensure that you can use this quaderno and pen comfortably. Caring for a quaderno Warni ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● ●...

  • Page 138: What You'll Need

    This section explains how to care for the standard included stylus pen and ramie stylus pen (sold separately). ● When removing dirt from the pen, pay attention to the following points. ・Be careful not to scratch it with nails or rings. ・Use a dry, soft cloth such as an OA cleaning cloth or non-woven fabric to wipe it off gently.
  • Page 139 ・Moisture may cause a malfunction if moisture enters the inside. Be very careful not to spill disinfectant on the quaderno. ・Do not allow disinfectant to enter the inside of the quaderno through gaps such as buttons. ・To clean the connector area, use a dry microfiber cloth to clean it without using disinfectant. ●...
  • Page 140 After cleaning with antiseptics ● Wipe off with a dry microfiber cloth so that no disinfectant remains. ● Remove disposable gloves and wash your hands immediately. Discard used disposable gloves. ● Dry the Quaderno thoroughly before turning it on. About the effects of disinfectants ●...
  • Page 141 1. Quaderno . . 2. Stylus..............130 3. Other specifications ..1. Quaderno The specifications of this product are subject to change without notice for improvement. Thank you for your understanding. Name QUADERNO A4(Gen. 3C) QUADERNO A5(Gen. 3C) Model name FMVDP43CA4 FMVDP53CA5...
  • Page 142 touch panel Capacitive finger input touch panel / electromagnetic induction digitizer compatible (stylus pen) Memory Capacity / Available Space 32 GB / Approx. 22GB or moreNote interface USB2.0 Type-C connector Power Rechargeable battery Built-in lithium-ion rechargeable battery supply Charging When connected to a Approx.
  • Page 143 Note 2: This is a guide to the charging time when using the "Power Off USB Charging Function" of our PCs and tablets. For information on applicable models, please refer to our website (Https://www.fmworld.net/). For the setting method, refer to the instruction manual of the computer. Note 3: Any USB Power Delivery compatible device that can supply 7.5W (5V/1.5A) or more can charge the main unit.

  • Page 144: Stylus Pen

    2. Stylus pen The specifications of this product are subject to change without notice for improvement. Thank you for your understanding. Name Quaderno Stylus Pen Model name FMVSP2 External dimensions Approx. 138.35mm (length) × approx. φ8mm (width) mass Approx. 7.2g...

  • Page 145: Other Specifications

    3. Other Specifications Supported file formats The application can display data in the following file formats: However, depending on the file size and the format of the data, it may not be possible to display it. The file format extension in parentheses is the file format extension.
  • Page 146 Release date: November 2024 The Company shall not be liable for any infringement of the patent rights or other Responsible for issuance: Fujitsu Client Computing rights of any third party. Limited ● All rights reserved. 〒 212-0058 Kanagawa Prefecture Kawasaki City Sachi-ku...
Save PDF
