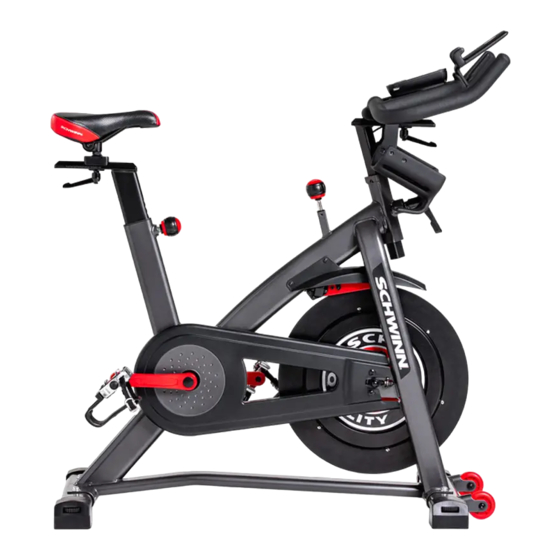

Schwinn IC4: I'm having issues adjusting my resistance
Follow this troubleshooting guide to help resolve resistance issues on the Schwinn IC4 indoor cycling bike.
Some common complaints may include:
Resistance is not registering on the console
Resistance level is not shown on the console
Console does not display resistance
Follow these steps to troubleshoot the issue
Tools you may need:
Phillips head screwdriver
1.
If the display stays at zero but resistance changes can be felt, check the main connection (located in between the
frame of the bike and the rear side of the console). Unplug the connection and reconnect, making sure the two arrows
are lined up (reference 1) [11083.G]. If the display changes but doesn't reach 0 or 100, skip to Step 5.
2.
Check if the main cable is crimped or damaged. Using a Phillips head screwdriver, remove the 4 screws from the back
of the console. Lift the console and inspect the cable. If the cable coming from the console is damaged,
Console [11083.H]. If the cable coming from the frame is damaged,
3.
If the issue persists, check the Resistance Sensor. Using a Phillips head screwdriver, remove the 4 screws attaching the
fender to the frame above the flywheel (reference 2).
about:blank
Schwinn IC4:  I'm having issues adjusting my resistance

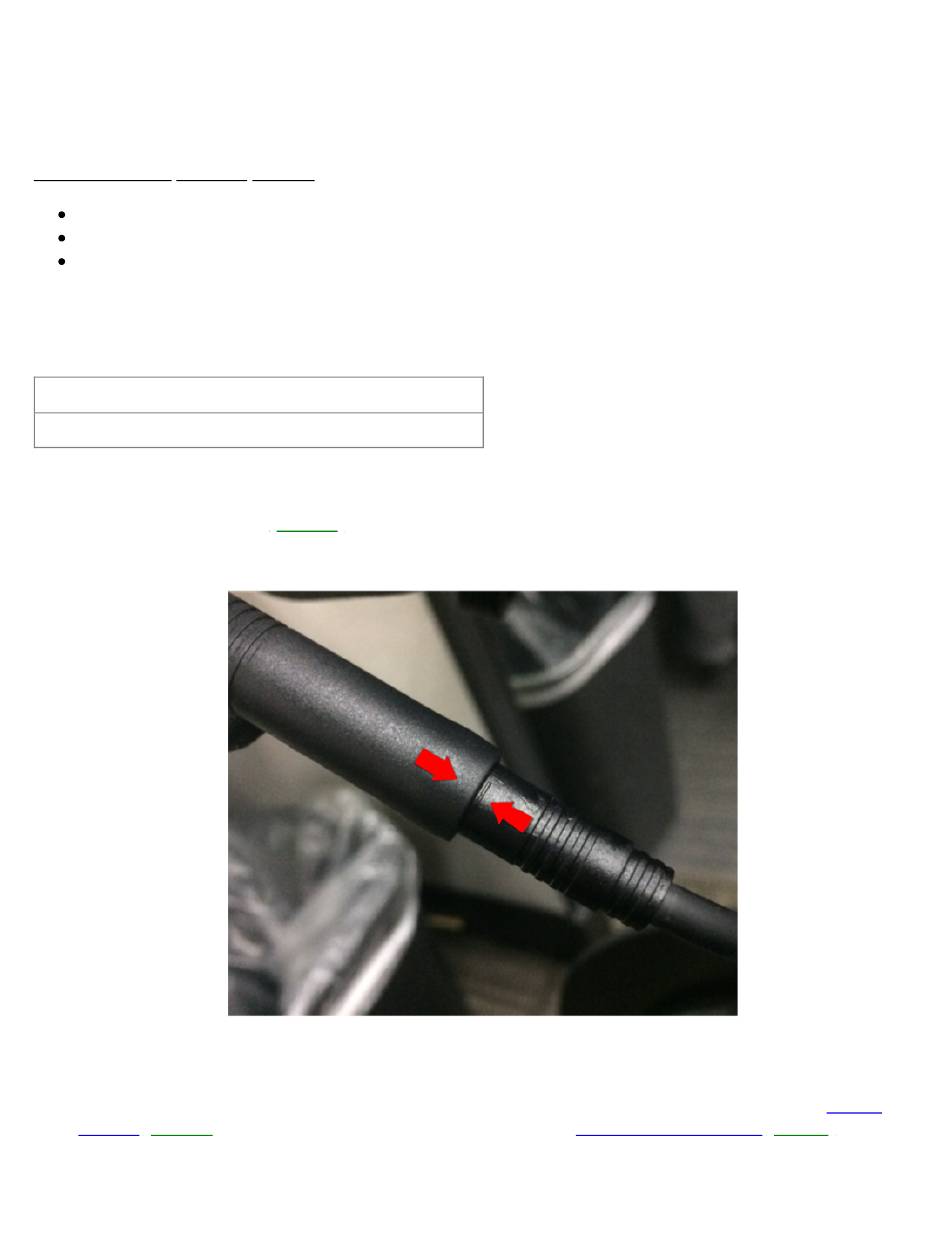

The main connection is shown with both arrows aligned and the wires fully plugged in.
(Reference 1)
order a Main Data
ID: 11083.1
