Summary of Contents for keymaXX SDP-100

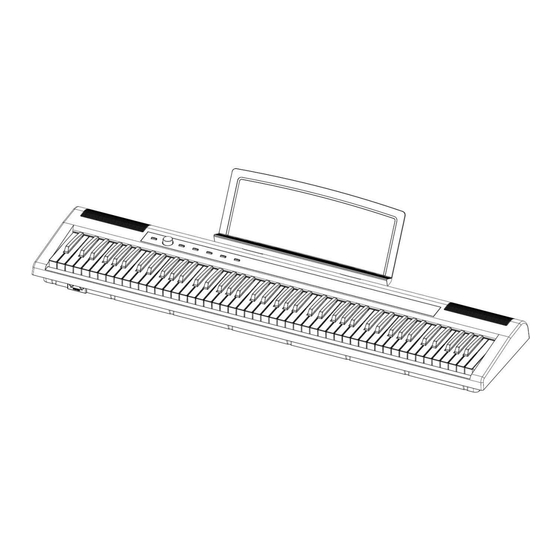

- Page 1 SDP-100 09/2024 EPI0001340-000 user manual...
- Page 2 Intended use: The keymaXX SDP-100 is a digital piano, designed to play sounds on the keyboard and make them audible through built-in speakers or headphones. Improper use of the product is considered improper and can lead to personal injury or property damage. No liability is assumed for damage resulting from improper use.
- Page 3 Important safety instructions! Please read before connection! CAUTION! (Electro Magnetic Interference) The normal function of the product may be disturbed by Strong Electro Magnetic Interference. If so, simply reset the product to resume normal operation by following the owner‘s manual. In case the function could not resume, please use the product in other location.
- Page 4 Hint! (Operating conditions) Due to its structural characteristics, the device is designed for indoor operation (IP20). Never expose the device to rain, moisture or liquids as this may cause damage. Vibrations, dust or solar radiation can also lead to damage, avoid them! Do not apply excessive force to the switches or controls.
- Page 5 Hint! (Interferences with other electrical devices) Radios and televisions placed nearby may experience reception interference. Operate this unit at a suitable distance from radios and televisions. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ...
- Page 6 Cleaning: A regular cleaning of the device from impurities and dust increases the durability of the product. Always disconnect the device from the power supply before cleaning it! Never clean the appliance wet! Optical lenses should be cleaned with a dry microfiber cloth to optimize light output. Ventilation grilles and openings should always be cleaned of dust and dirt.
-
Page 7: Control Panel
The SDP-100 is equipped with Bluetooth audio, which enables easy pairing with a smartphone or tablet. As soon as Bluetooth is active on the smart device, you can select the SDP-100 aka ‘BT Audio’ and use it as a speaker, e.g. for playing YouTube. - Page 8 CONNECTIONS [08] AUDIO OUT 1 jack [12] USB MIDI jack This jack is used to connect external headphones with This jack is used to connect a computer or a smart 6,3mm plug. device with a USB cable. [09] AUDIO OUT 2 jack [13] PEDAL jack This jack is used to connect external speakers with a This jack is used to connect a Triple Pedal (Pedal Unit)
- Page 9 SETTING UP Connecting the Power Adapter Install the music rest Connect the AC adaptor as shown. Insert the Music Rest on the instrument as Remove the electric plug from the outlet shown. when the instrument is not to be used for extended periods of time, or during electrical storms.
- Page 10 SETTING UP Using headphones USB to Host Port features Front Headphone Jacks Use the (USB MIDI) jack (Type B) located on the (6.35mm), allowing two pairs of headphones to Rear Panel to connect a computer or smart be connected to the instrument and used devices to receive or send MIDI data.
-
Page 11: Basic Operation
BASIC OPERATION Selecting and Playing Sounds (Tone) Layering Two Voices (Dual Mode) The digital piano features 128 built-in advanced The features a Dual Mode function, allowing you GM Tones, which means you have a wide to layer two Tones ancl play them simultaneously selection of sounds to choose from, allowing you to create a more rich sound. - Page 12 BASIC OPERATION Playing the Drum kit Voices Splitting the Keyboard (Split Mode) The digital piano features a 88-key percussion When the Split mode is active, the keyboard will keyboard, allowing you to play the drum kit be divide,j into two separate areas, which means voices.
- Page 13 BASIC OPERATION 2 Use the [NEXT] button or Combination Operation to select the desired Rhythm. Adjusting the Beat {Time Signature) 1 Turn on the Metronome. 3 Press the [►/■] button to start the Rhythm. 2 Press and hold the [FUNCTION] button, then press one of the [G6] - [C7] keys on the 4 Press the [►/■] button again to stop the keyboard to select the desired Beat from 1/4,...
- Page 14 BASIC OPERATION For example, to play the C chord, press the [C3] key in Smart style or press C2 + E2 + G2 keys at the same time in Multi-Finger style. 4 Press and hold the (FUNCTION) button, then press the [BO) key to turn off the Auto Accompaniment mode.
- Page 15 BASIC OPERATION Song Practice Mode Setting various items your Performance 1 Enter the Song status and then select The Function settings contains settings to the desired demo song. adjust detailed instrument parameters such as Transpose, Octave, Touch Sensitivity, 2 Press and hold any white and any black and Effects.
- Page 16 BASIC OPERATION Adjusting the Touch Sensitivity 4 Press and hold the (FUNCTION) button, then press the [E6) key on the keyboard There are 4 types of Touch Sensitivity: Fixed to turn on the Chorus. (Off), Soft, Normal, Hard. The default is Normal.
- Page 17 BASIC OPERATION Quick Recording and Playback (Internal Memory) The digital piano features a 16-track Recording Function an,j a playback function, allowing you to record your Full Performance (the accompaniment is on track "O" and the melody is on track "1" to "15") and play back it. 1 Press and hold the [METRONOME] button, and then press one of the [B2] - [C4] keys on the keyboard to select the track when...
- Page 18 TONE LIST...
-
Page 19: Rhythm List
RHYTHM LIST DEMO LIST... - Page 20 AUTO ACCOMPANIMENT CHORD LIST...
- Page 21 AUTO ACCOMPANIMENT CHORD LIST...
