- Page 1 SP-11 02/2023 EPI0001201-000 user manual...

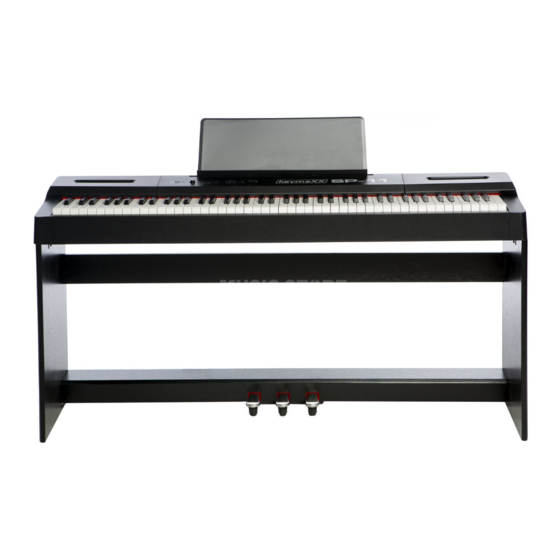

- Page 2 Intended use: The keymaXX SP-11 is a digital home keyboard, designed to play sounds on the keyboard and make them audible through built-in speakers or headphones. Improper use of the product is considered improper and can lead to personal injury or property damage. No liability is assumed for damage resulting from improper use.
- Page 3 Important safety instructions! Please read before connection! CAUTION! (Electro Magnetic Interference) The normal function of the product may be disturbed by Strong Electro Magnetic Interference. If so, simply reset the product to resume normal operation by following the owner‘s manual. In case the function could not resume, please use the product in other location.
- Page 4 Hint! (Operating conditions) Due to its structural characteristics, the device is designed for indoor operation (IP20). Never expose the device to rain, moisture or liquids as this may cause damage. Vibrations, dust or solar radiation can also lead to damage, avoid them! Do not apply excessive force to the switches or controls.
- Page 5 Hint! (Interferences with other electrical devices) Radios and televisions placed nearby may experience reception interference. Operate this unit at a suitable distance from radios and televisions. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ...
- Page 6 Cleaning: A regular cleaning of the device from impurities and dust increases the durability of the product. Always disconnect the device from the power supply before cleaning it! Never clean the appliance wet! Optical lenses should be cleaned with a dry microfiber cloth to optimize light output. Ventilation grilles and openings should always be cleaned of dust and dirt.
- Page 7 CONNECTING SOCKET POWER LINE CONNECTION When in use, the power cord is connected according to the figure. One end is inserted into the power outlet in the back socket board, and the other end is inserted into the 110-240V household power outlet. (Fig. 1) ...
-
Page 8: Installation
INSTALLATION Note! Simple edition only mainframe, no scaffolding, this assembly drawing is only suitable for the installation with wooden scaffolding! -
Page 9: Piano Performance
OPERATION GUIDE 1 PIANO PERFORMANCE 1. Push the "POWER" switch to the open position, and you can play on the keyboard. 2. Turn off the power supply when not in use for the time being. Processor chips of this product are complex, similar to computer systems. Sometimes they can not respond. Please turn off the power switch and then turn it on to work properly. - Page 10 OPERATION GUIDE 4 CHOOSING INSTRUMENT TIMBRE Hold down the "TONE/DEMO" button and press the corresponding one in the timbre area. "White key c4-c5" can play different instrument timbre. The default is "piano triangle" timbre whenever you are powered. 5 DOUBLE INSTRUMENT TIMBRE 1.
-
Page 11: Touch Adjustment
OPERATION GUIDE 7 TOUCH ADJUSTMENT Hold down the "EFFECT" button and press a corresponding "white key c1-e1" in the strength selection area to adjust the keyboard response time. There are three levels of regulation, the strongest in "c1" and the weakest in "e1". 8 CHORUS SOUND EFFECT 1. -
Page 12: Power Supply
OPERATION GUIDE 11 TRANSPOSE The transfer function can change the pitch of the keyboard without changing the keyboard finger movement. 1. Hold down the "MIDI/TRANSPOSE" button and press the "white key F2 and f3" to select the transpose function. 2. Hold down the "MIDI/TRANSPOSE" button and press the "white key f3" to close the transpose function. 12 MP3 PLAY 1.
