Chill Cube (Ducted) Single Zone
Wall Thermostat
MODEL: FACW13VSDSA-BL
LIPPERT PN: 2024031600
OEM Installation Manual
REV: 12.19.24
CCD-0008973
Compatible with FACC13VSD
Picture is for reference only.

Advertisement

loading
Need help?

Need help?

Do you have a question about the FACW13VSDSA-BL and is the answer not in the manual?

Questions and answers

Summary of Contents for Furrion FACW13VSDSA-BL

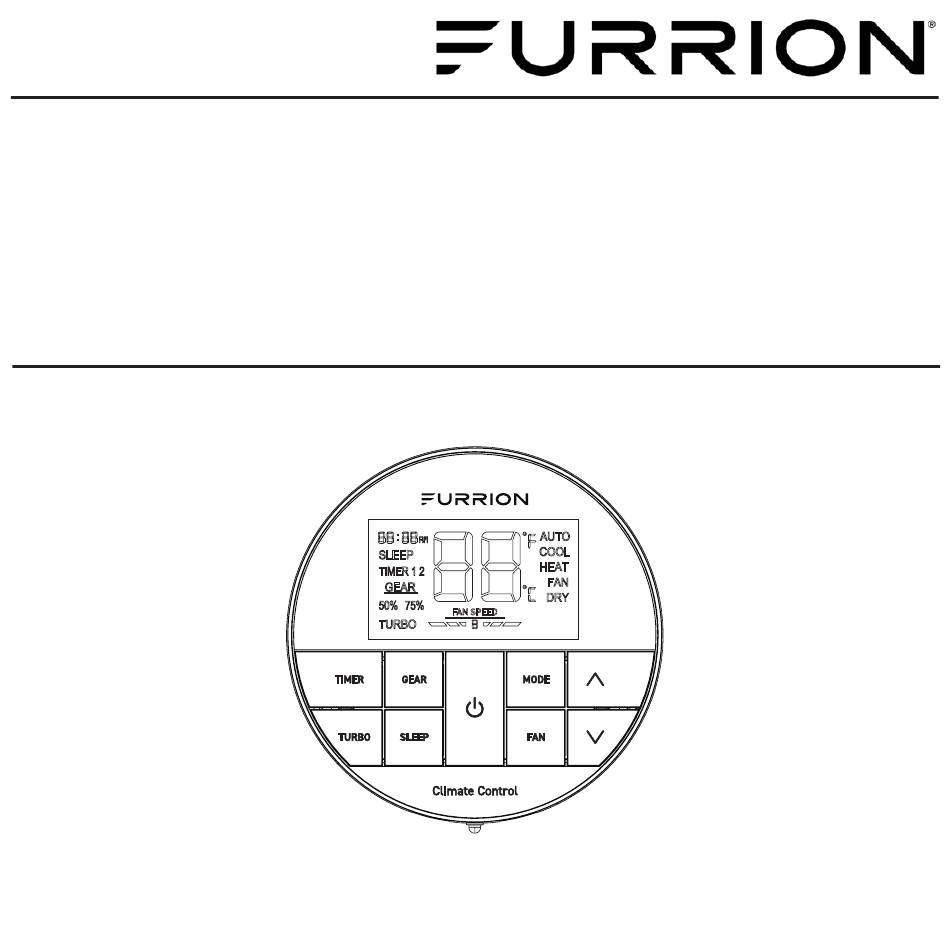

  • Page 1 Chill Cube (Ducted) Single Zone Wall Thermostat MODEL: FACW13VSDSA-BL LIPPERT PN: 2024031600 OEM Installation Manual Compatible with FACC13VSD REV: 12.19.24 Picture is for reference only. CCD-0008973...
  • Page 2: Table Of Contents

    This manual will help you install and use the Chill Cube (Ducted) Thermostat. For further support, please visit https://support.lci1.com/thermostats. TABLE OF CONTENTS WHAT’S IN THE BOX............3 Change the Operating Mode.......10 THERMOSTAT INSTALLATION........4 Set the Temperature..........10 Choosing the Thermostat Location......4 GEAR Mode..............10 Wiring and Mounting the Thermostat....5 Set the Fan Speed...........11 Setting the Timer.............12...
  • Page 3: What's In The Box

    WHAT’S IN THE BOX Manual x 1 Thermostat x 1 NOTE: Product design and packaging may change without notice CCD-0008973 REV: 12.19.2024 Page 3...
  • Page 4: Thermostat Installation

    THERMOSTAT INSTALLATION WARNING Risk of Electric Shock Always verify that the electrical power to the circuit has been disconnected before performing the installation procedure. Choosing the Thermostat Location This thermostat is a regulating device which senses the room’s real-time temperature and performs actions to maintain that temperature near a desired set-point.
  • Page 5: Wiring And Mounting The Thermostat

    Wiring and Mounting the Thermostat 1. Rotate the thermostat cover counterclockwise and pull out the base plate. 2. Use the base plate as a template and drill a hole on the vehicle wall. Extend the four wire cables from the cutout area. Thermostat cables CCD-0008973...
  • Page 6 3. Mount the thermostat base on the wall using screws. NOTE: Make sure the base is not covering the hole and squeezing the thermostat cables. Make sure to not damage the temperature sensor. Thermostat cables 4. Connect the cables to thermostat. Connection pin functions are as follows: B A 12V GND GND FURN (+)
  • Page 7 5. Insert the thermostat into the base and rotate clockwise until it snaps into place. Thermostat cables CCD-0008973 REV: 12.19.2024 Page 7...
  • Page 8: Operation

    OPERATION Thermostat Overview Room Temperature/Error Code Display Gear Mode Display Toggles Gear Mode Settings Operation Mode Display Fan Speed Display Increases Temperature Activates Timer Mode Set Point Activates Turbo Fan Decreases Temperature Set Point Speed Changes Operation Mode Activates Sleep Mode Changes Fan Speed (High/Med/Low) Power...
  • Page 9: Turn On/Off The Thermostat

    The thermostat has been preprogrammed with factory default settings. Review the settings below and adjust to comfort level. Factory Settings Heating 68°F / 20°C Cooling 72°F / 22°C Fan Speed AUTO Mode COOL Turn On/Off the Thermostat To turn on the thermostat, press and hold the button for 3 seconds.
  • Page 10: Change The Temperature Format

    Change the Temperature Format Press both the buttons for 3 seconds to toggle the temperature format between Centigrade and Fahrenheit. NOTE: °F indicates Fahrenheit and °C indicates Centigrade. Change the Operating Mode After the thermostat has been turned on, press the MODE button to toggle through COOL, HEAT, FAN, AUTO and DRY modes.
  • Page 11: Set The Fan Speed

    Set the Fan Speed 1. Press MODE to switch to the desired mode. 2. Press FAN to select the air conditioner fan speed. The available fan settings under each mode are as follows: Mode Fan Speed COOL Low/Medium/High/AUTO/TURBO HEAT-F Low/Medium/High/Silent HEAT-P Low/Medium/High/AUTO/TURBO Low/Medium/High/AUTO...
  • Page 12: Setting The Timer

    Setting the Timer 1. Press the TIMER button to enter the timer setting mode, the TIMER 1 and clock icons will flash. 2. Set the clock, change the operating mode, set the temperature, and set the fan speed to the desired values to be remembered by TIMER 1. See each section in this manual corresponding to the desired operation for instructions on how to perform/ set them.
  • Page 13: Heat Mode

    Heat Mode Heat mode offers three selections for Enabled DIP switches appear on the operating heating devices which can be thermostat as follows: enabled using the DIP switches on the F - Gas Furnace (if available) back of the thermostat. P - Heat Pump (select models only) Only one heating device can be operated S - Heat strip (select models only)
  • Page 14: Troubleshooting

    TROUBLESHOOTING LCD Error Codes Code Fault Loss of communication between the thermostat and air conditioner. Thermostat unavailable for air conditioner function. Thermostat operable for gas furnace heating function. Check 120VAC supply or loose wiring connections with the air conditioner system. Thermostat indoor temperature sensor out of order.
  • Page 15: Specifications

    SPECIFICATIONS DC Input Power DC 12V Power Consumption <0.5W Dimension 3 x 3 x 15/16” (75 x 75 x 22.5mm) Weight 2.12oz. / 60g CCD-0008973 REV: 12.19.2024 Page 15...
  • Page 16 Thermostat mural (avec conduit d'air) à zone unique Chill Cube MODÈLE : FACW13VSDSA-BL LIPPERT PN: 2024031600 Manuel d'installation OEM Compatible avec FACC13VSD RÉV : 12.19.24 L'image n'est là qu'à titre de référence. CCD-0008973...
  • Page 17 Ce manuel vous aidera à installer et à utiliser le thermostat Chill Cube (avec conduit). Pour plus d'assistance, veuillez consulter le site https://support.lci1.com/thermostats. TABLE DES MATIÈRES CONTENU DE LA BOÎTE............3 Modifier le mode de fonctionnement....10 INSTALLATION DU THERMOSTAT........4 Régler la température..........10 Choix de l’emplacement du thermostat..4 Mode VITESSE.............10 Câblage et montage du thermostat....5...
  • Page 18: Contenu De La Boîte

    CONTENU DE LA BOÎTE Manuel x 1 Thermostat x 1 NOTE : La conception et l'emballage des produits peuvent être modifiés sans préavis CCD-0008973 RÉV : 12.19.2024 Page 3...
  • Page 19: Installation Du Thermostat

    INSTALLATION DU THERMOSTAT AVERTISSEMENT Risque de décharge électrique Toujours vérifier que l'énergie électrique du circuit a été coupée avant d'effectuer la procédure d'installation. Choix de l'emplacement du thermostat Ce thermostat est un appareil de régulation qui détecte la température de la pièce en temps réel et effectue des actions pour maintenir cette température près d'un point de consigne désiré.
  • Page 20: Câblage Et Montage Du Thermostat

    Câblage et montage du thermostat 1. Tourner le couvercle du thermostat dans le sens inverse des aiguilles d'une montre et retirer la plaque de base. 2. Utiliser la plaque de base comme gabarit et percer un trou sur la paroi du véhicule. Prolonger les quatre câbles à...
  • Page 21 3. Monter le socle du thermostat sur le mur à l'aide de vis. NOTE : S'assurer que le socle ne recouvre pas le trou et ne comprime pas les câbles du thermostat. S'assurer de ne pas endommager le capteur de température. Câbles du thermostat 4.
  • Page 22 5. Insérer le thermostat dans le socle et tourner dans le sens des aiguilles d'une montre jusqu'à ce qu'il s'enclenche. Câbles du thermostat CCD-0008973 RÉV : 12.19.2024 Page 7...
  • Page 23: Fonctionnement

    FONCTIONNEMENT Aperçu du thermostat A chage de la température ambiante/Code d'erreur A chage du mode vitesse Réglages du mode de changement de vitesse A chage du mode de fonctionnement A chage de la vitesse de ventilation Augmente le point de Active le mode consigne de la minuterie...
  • Page 24: Allumer/Éteindre Le Thermostat

    Le thermostat a été préprogrammé avec les paramètres d'usine par défaut. Examiner les paramètres ci-dessous et les ajuster en fonction du niveau de confort. Paramètres d'usine Chauffage 68°F / 20°C Refroidissement 72°F / 22°C Vitesse de ventilation AUTO Mode REROIDISSEMENT Allumer/éteindre le Thermostat Pour mettre le thermostat en marche, appuyer sur le bouton et le maintenir enfoncé...
  • Page 25: Modifier Le Format De La Température

    Modifier le format de la température Appuyer sur les deux boutons pendant 3 secondes pour alterner le format de température entre Centigrade et Fahrenheit. NOTE : °F indique Fahrenheit et °C indique Centigrade. Modifier le mode de fonctionnement Une fois le thermostat allumé, appuyer sur le bouton MODE pour alterner entre les modes REFROIDISSEMENT, CHAUFFAGE, VENTILATION, AUTO et SÉCHAGE.
  • Page 26: Régler La Vitesse De Ventilation

    Régler la vitesse de ventilation 1. Appuyer sur MODE pour passer au mode désiré. 2. Appuyer sur VENTILATEUR pour sélectionner la vitesse de ventilation du climatiseur. Les paramètres de ventilation disponibles pour chaque mode sont les suivants : Mode Vitesse de ventilation REROIDISSEMENT Faible/Moyen/Haut/AUTO/TURBO CHAUFFAGE-F...
  • Page 27: Réglage De La Minuterie

    Réglage de la minuterie 1. Appuyer sur le bouton MINUTERIE pour accéder au mode de réglage de la minuterie, les icônes MINUTERIE 1 et Horloge clignoteront. 2. Régler l'horloge, changer le mode de fonctionnement, régler la température et la vitesse de ventilation aux valeurs souhaitées qui seront mémorisées par la MINUTERIE 1.
  • Page 28: Mode Chauffage

    Mode chauffage Le mode chauffage offre trois sélections Les commutateurs DIP activés apparaissent pour le fonctionnement des appareils de sur le thermostat comme suit : chauffage, qui peuvent être activées à l'aide F - Fourneau à gaz (si disponible) des commutateurs DIP situés à l'arrière du thermostat.
  • Page 29: Dépannage

    DÉPANNAGE Codes d’erreur LCD Code Pannes Perte de communication entre le thermostat et le climatiseur. Le thermostat n'est pas disponible pour le fonctionnement du climatiseur. Thermostat utilisable pour la fonction de chauffage de la chaudière à gaz. Vérifier l'alimentation en 120 V CA ou les connexions de câbles desserrées avec le système de conditionnement d'air.
  • Page 30: Spécifications

    SPÉCIFICATIONS Puissance d’entrée CC 12 V CC Consommation électrique <0,5 W Dimension 3 x 3 x 15/16 po (75 x 75 x 22,5 mm) Poids 2,12 oz / 60g CCD-0008973 RÉV : 12.19.2024 Page 15...
  • Page 31 Furrion, LLC (Furrion) sont des filiales en propriété exclusive de Lippert Components, Inc. (Lippert) Furrion, LLC (Furrion) sont des filiales en propriété exclusive de Lippert Components, Inc.(Lippert) Furrion, LLC: 52567 Independence Ct., Elkhart, IN, 46514 Furrion Innovation Center & Institute of Technology Centre d’innovation et institut de technologie Furrion...
