- Page 1 Single Zone Premium Wall Thermostat Instruction Manual Model: FACW12PA-BL...
-
Page 2: Welcome
Welcome Thank you for purchasing this Furrion Single Zone Premium Wall Thermostat. ® Before operating your new product, please read these instructions carefully. This instruction manual contains information for safe use, installation and maintenance of the product. Please keep this instruction manual in a safe place for future reference. This will ensure safe use and reduce the risk of injury. -
Page 3: Table Of Contents
Contents Welcome .................... 1 Contents .................... 2 About your Thermostat ..............3 Product Features .....................3 Control Buttons .......................3 LCD Icons ........................4 Installation ..................5 What’s in the Box ....................5 Thermostat Installation ..................5 Operation ................... 7 Turn On/Off the Thermostat ..................7 Temperature Format ....................7 Operation Mode .......................7 Set the Temperature ....................9... -
Page 4: About Your Thermostat

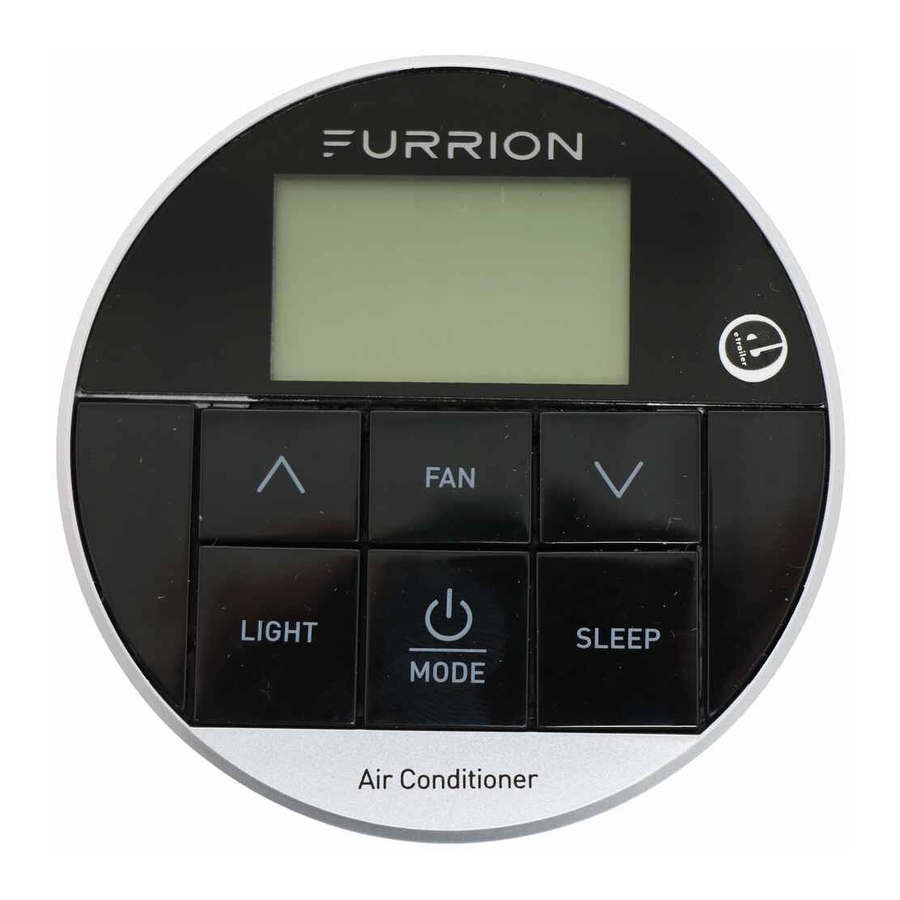

About your Thermostat Product Features Your Single Zone LCD thermostat is equipped with a liquid crystal display (LCD) to indicate the temperature set-point in Fahrenheit(°F)/Centigrade(°C) and fan speed. It is also equipped with LCD to indicate the system available operation modes. NOTE: The available operation modes will be different depending on the system installed in your RV. -
Page 5: Lcd Icons
Press to change the Press to select SLEEP color of mood light mode Press once to turn on. About your Thermostat Press repeatedly to select mode LCD Icons Room Temperature or Operation Mode Error Code Fan Speed... -
Page 6: Installation
Installation What’s in the Box Make sure you have all the following items included in the packaging. If any item is damaged or missing, contact your dealer. – Thermostat x 1 – Instruction Manual x 1 Fig. 2 Thermostat Cables –... - Page 7 Installation 5. Connect the cables to thermostat. Rotate the thermostat clockwise until it clips into place. (Fig. 4 and Fig. 5) Thermostat cables Fig. 4 Fig. 5...
-
Page 8: Operation
Operation Temperature Format Your Furrion wall thermostat has been preprogrammed with factory default settings. Review the settings below and adjust to your comfort level. FACTORY DEFAULT SETTINGS HEATING 68ºF / 20ºC COOLING 72ºF / 22ºC FAN SPEED AUTO MODE AUTO FURNACE DIFFERENTIAL 2ºF... - Page 9 Operation are 5 available modes (AUTO, COOL, COOL MODE HEAT, FAN and DRY) for you to select. ● The system will cycle the See the following tables for detailed compressor on and off based on information of each mode. the room temperature and the NOTE: The HEAT mode is only available temperature set-point.
-
Page 10: Set The Temperature
Operation HEAT MODE FAN MODE NOTE: The HEAT mode is only available ● The temperature set-point is not when the furnace is enabled. available. ● The system will cycle the furnace ● There are 3 fan speed selections in on and off based on the room this mode. -
Page 11: Set The Fan Speed
Operation predefined colors of LED light in the air 60ºF~86ºF (16ºC~30ºC). distribution box. 1. Press button to toggle to your 1. Press LIGHT button on the desired mode. thermostat to turn on the mood light. 2. Press button to increase or 2. -
Page 12: Special Features
Special Features Auto Fan LCD Error Code When the auto fan mode is selected, The following error code will be the fan speed will vary depending on displayed on the LCD when the system the temperature difference between the detects one of the following faults has temperature set-point and the room occurred. -
Page 13: Wiring Diagram
Wiring Diagram COMPRESSOR GRN/YEL INDOOR OUTDOOR GRN/YEL MOTOR MOTOR PASSED GRN/YEL DIELECTRIC 6PIN CONN GRN/YEL CAPACITOR FUSE HEAT ELEMENT 3PIN CONN LIMMITED SWITCH HEAT ELEMENT TO UPPER COIL SENSOR UNIT ROOM SENSOR Elect.Heater Optional* 115VAC 60Hz 1 ∅ GRN/YEL HIGH RED BLK BRN BRN BLU BLK YEL RED... -
Page 14: Specifications
Specifications DC Input Power DC 12V Power Consumption <0.5W Baud Rate 9600bps Dimension 3 x 3 x 15⁄16” (75 x 75 x 22.5mm) Weight 0.06kg LCD Viewing angle 12 o’clock... -
Page 15: Warranty
Warranty FURRION WARRANTS FOR A PERIOD OF 1 YEAR FROM DATE OF RETAIL PURCHASE BY THE ORIGINAL END-USE PURCHASER, THAT THIS PRODUCT, WHEN DELIVERED TO YOU IN NEW CONDITION, IN ORIGINAL PACKAGING, FROM A FURRION AUTHORIZED RESELLER AND USED IN NORMAL CONDITIONS, IS FREE FROM ANY DEFECTS IN MANUFACTURING, MATERIALS, AND WORKMANSHIP. - Page 16 TO LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPLACEMENT OF ANY EQUIPMENT OR PROPERTY, ANY COSTS OF RECOVERING, REPROGRAMMING, OR REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH FURRION PRODUCTS. FURRION’S TOTAL LIABILITY IS LIMITED TO THE REPAIR OR REPLACEMENT OF THIS PRODUCT PURSUANT TO THE TERMS OF THIS WARRANTY.
- Page 20 ● 52567 Independence Ct., Elkhart, IN 46514, USA ● Toll free:1-888-354-5792 ● Email: support@furrion.com ©2007-2018 Furrion Ltd. Furrion and the Furrion logo are trademarks licensed for use by ® Furrion Ltd. and registered in the U.S. and other countries. FURRION.COM...
Need help?
Do you have a question about the FACW12PA-BL and is the answer not in the manual?
Questions and answers
Thermostat is give a E3 error code. What needs to be done to fix this
The E3 error code on the Furrion FACW12PA-BL thermostat indicates a communication error between the thermostat and the control box. To fix this issue, check for internal faults in either the thermostat or the control box. If wiring and power supply are confirmed to be correct, the problem likely lies with one of those components. Testing by a dealer or technician with the proper tools is recommended to determine which part is faulty, especially if the unit is under warranty.
