Furrion FACW10SA-BL Quick Start Manual

Standard Single
Zone Thermostat
Model: FACW10SA-BL
Quick Start Guide
This quick start guide will help you install and use the device
properly. For further support please visit www.furrion.com/
support.

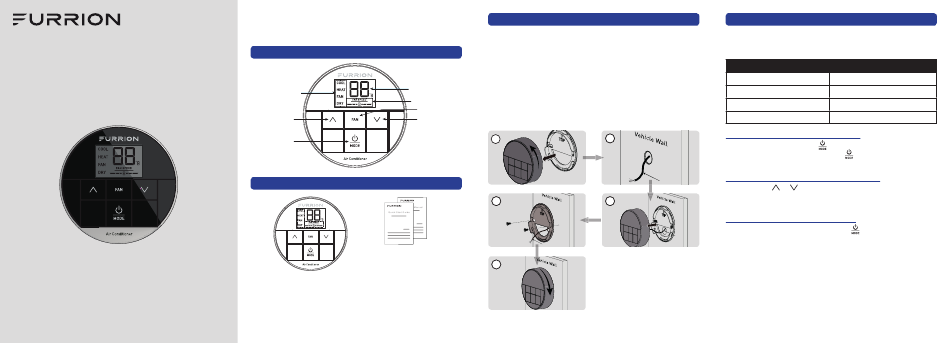

PRODUCT OVERVIEW
Room Temperature or
Operation Mode Error Code
Fan Speed
Press to change
the fan speed
Press to increase the
Press to decrease
temperature set-point
temperature set-point
Press once to turn on.
Press repeatedly to
select mode
WHAT'S IN THE BOX
QSG x 1
Warranty Manual x 1
Thermostat x 1
NOTE: Product design and packaging may change without
notice.
INSTALLATION
1. Rotate the thermostat cover counterclockwise and pull out
the base plate.
2. Use the base plate as a template and drill a hole on the
vehicle wall. Extend the four wire cables from the cutout area.
Refer to the cable tag label for each cable definition.
3. Fix the base plate on the wall using 2 self-tapping screws.
NOTE: Make sure the base plate is not covering the hole and
squeezing the thermostat cables.
4. Connect the cables to thermostat.
5. Replace the thermostat to the base plate and rotate
clockwise until it clips into place.
1 2 2
Thermostat Cables
4 4 3 3
Thermostat Cables
5 5
OPERATION
Your Furrion wall thermostat has been preprogrammed with
factory default settings. Review the settings below and adjust to
your comfort level.
Factory Settings
Heating 68°F / 20°C
Cooling 72°F / 22°C
Fan Speed AUTO
Mode COOL
TURN ON/OFF THE THERMOSTAT
To turn on, press and hold the button for 3 seconds to turn on the
thermostat. To turn off, press and hold button for 3 seconds to
turn off the thermostat.
CHANGE THE TEMPERATURE FORMAT
Press both the or buttons for 3 seconds to toggle the
temperature format between Centigrade and Fahrenheit.
NOTE: °F indicates Fahrenheit and °C indicates Centigrade.
CHANGE THE OPERATING MODE
After the thermostat is turn on, press the
to toggle through the COOL, HEAT, FAN and DRY modes. The
Thermostat
cables
activated mode icon and temperature set-point will be displayed on
the LCD. The thermostat will transmit the last selected operation
mode command to the control box after 2 seconds without any
operation.
NOTE: If connected to a Furrion multi-zone control box
(FACC12NA-BL), the furnace and/or heatstrip DIP switches in
the control box must be enabled to activate the following HEAT
mode(s):
● Furnace ON, Heatstrip OFF - Furnace heat only, HEAT F will be
displayed on LCD after selected.
button repeatedly
