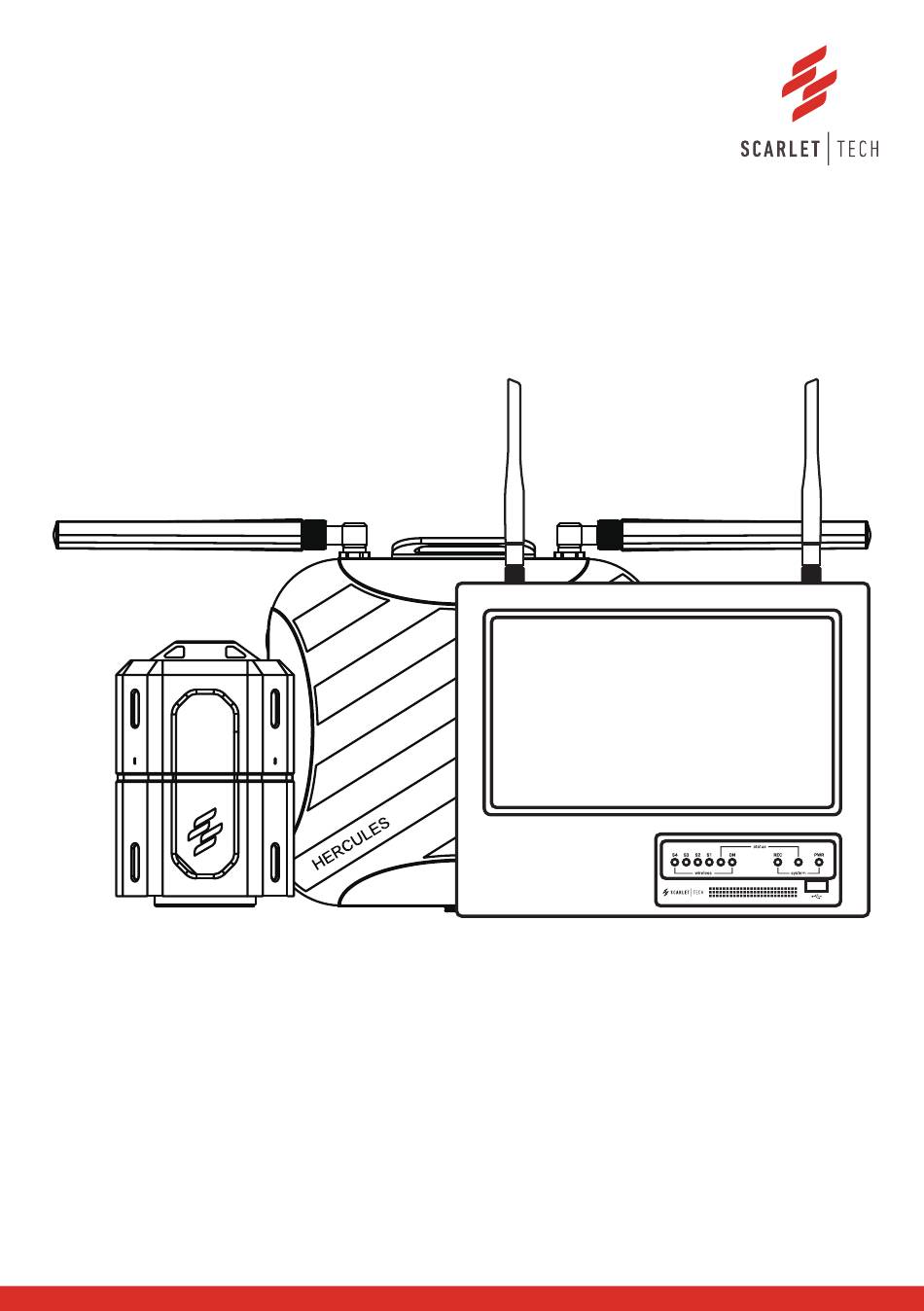

- Page 1 Hercules Pro Wireless Crane Camera System User Guide...
-
Page 2: Table Of Contents
Contents 1. Product List 2. Product Overview 3. Product Specificaiton 3.1 Hook Camera 3.2 Camera Transmitter 3.3 Camera Battery 3.4 StreamLink 3.5 Monitor Console 4. Installation 4.1 Jib 4.2 Hook 4.3 Cabin 5. LED Indicator Panel 5.1 Wireless Signal Strength 6. -
Page 3: Product List
1. Product List 1. Hook Camera (LAN cord attached) 2. Safety Lanyard (with magnetic cable holder) 3. Camera Transmitter 4. Antenna (5GHz omnidirectional, white) x 2pcs 5. Safety Lanyard (with magnetic cable holder) 6. Camera Battery 7. Power Cord (1.2M, Power Pack-Camera Transmitter) 8. -
Page 4: Product Overview
2. Product Overview HerculesPro is a wireless crane camera system that enables the operators to visually monitor the load and its surroundings. It provides an unobstructed, real-time view of critical areas, which would typically be inaccessible within blind spots. The system comprises five main components connected via a private wireless network and is to be installed across three different sections of the crane. -
Page 5: Product Specificaiton
3. Product Specificaiton 3.1 Hook Camera LAN Cable to Camera Transmitter Magnets Magnets Lens Hook Camera Resolution & Pixels 2K QHD 2304 x 1296, 3MP / HD 1280 x 720, 1MP Image Sensor 1/2.8" CMOS Electronic Shutter 1/25s - 1/10,000s Compression Standard H.265 / H.264 / MJPEG Angle of View... -
Page 6: Camera Transmitter
3.2 Camera Transmitter LED Indicators N-type Ports N-type Ports for LAN Connection Status Magnets Magnets 3-pin Power Jack LAN Port to Hook Camera Camera Transmitter Wireless Technology Wi-Fi 5GHz Power Supply DC 12V Waterproof IP67 Installation Mounting by magnets Dimension 265 x 265 x 82mm Weight 2.2kg... -
Page 7: Camera Battery
3.3 Camera Battery Magnets Magnets LCD Display for Battery Voltage Status LED Indicator for Power Status Power On/Off 3-pin Power Jack to Camera Transmitter Power Jack for Charging Camera Battery Battery Type Molicel 26700 LiFePO4 Battery Volume 28000mAh Working Hours 35+ hours LED Indicator Power status... -
Page 8: Streamlink
3.4 StreamLink N-type Ports N-type Ports Magnets Magnets 3-pin Power Jack LED Indicators for LAN Connection Status RJ45 Port for Configuration StreamLink Station Wireless Technology Wi-Fi 5GHz Power Supply DC 24V Waterproof IP67 Installation Mounting by magnets Dimension 230 x 230 x 93mm Weight 1.1kg... -
Page 9: Monitor Console
3.5 Monitor Console Recording status LAN port Power status Power Jack Wireless signal status USB port (settings & data export) Monitor Console Video Storage 1TB HDD (30 days in 2K) Wireless Technology Wi-Fi 5GHz Display 11.6” IPS Resolution 1920 x 1080 Channel Up to 8 Channels Power Supply... -
Page 10: Installation
4. Installation 4.1 Jib front StreamLink Install both white antennas on the N-type ports located on the top of StreamLink and clear from any potential collision. Place one antenna straight up and the other at a 90° angle port. Position the StreamLink directly above the crane hook or within the half of the crane jib towards the tip. - Page 11 POSITIVE + No Function NEGATIVE - Checklist StreamLink LED panel for a steady green PWR light, confirming power source is on and successful boot-up.
-
Page 12: Hook
4.2 Hook Camera Transmitter Camera Battery LAN cord Power cord Hook Camera Camera Transmitter Before proceeding with the installation of the Camera set, ensure that StreamLink is installed and operational. Install both white antennas on the angled N-type port on the top of Camera Trans- mitter, and clear from any potential collision. - Page 13 Hook Camera Position the Camera’s lens vertical to the ground. Magnetically attached Camera on the clean, flat crane hoist surface Connect the Camera’s LAN Cord to the Camera Transmitter’s LAN port, then fasten the waterproof closure. Fasten its anchor to the crane using a safety lanyard. LAN Cable from Hook Camera LAN Cable to Camera Transmitter Fasten the waterproof closure...
- Page 14 Camera Battery Position the Battery’s power indicator on the bottom. Magnetically attached Camera Battery on the clean, flat crane hoist surface. Connect the Camera Battery and Camera Transmitter using the 3-pin Power Cord. Connect to Camera Battery Connect to Camera Transmitter Fasten its anchors to the crane using a safety lanyard.
-
Page 15: Cabin
4.3 Cabin Monitor Console Before proceeding with the installation of the Monitor Console, ensure that Stream- Link and Camera Transmitter are installed and operational. Install both antennas onto the top of the Monitor Console. Affix the Monitor Clamp Mount to the back of the Monitor Console using screws. Adjust the clamp arm vertical to the ground then attach Monitor Console in the cabin’s left corner. -
Page 16: Led Indicator Panel
5. LED Indicator Panel Camera Transmitter: left side StreamLink : left side LED Indicator Description Definition Power status OFF: No power Steady Green: Power ON Data transmission status OFF: No data transmission Flashing Green: Data transmission is on-going S1, S2, S3 & S4 Wireless signal strength OFF: No signal S1 Steady Green:Very poor... -
Page 17: Wireless Signal Strength
5.1 Wireless Signal Strength Improve Camera Transmitter’s wireless signal strength: • Camera Transmitter and StreamLink are in a clear line of sight. • Transmitter’s antennas are parallel to the ground. • One of StreamLink’s antenna is facing toward the jib tip. •... -
Page 18: Camera Battery
6. Camera Battery 6.1 Battery Status Power Button LCD Display LED Indicator Description Definition LCD Display Voltage information >= 13.7V: Full charged <= 12V: Low voltage, camera will shutdown LED Indicator Battery life status OFF: No power Steady Red: Battery life is less than 3 hours. Steady Green: Battery life is longer than 3 hours. -
Page 19: Video Settings
Hook Camera Hook Camera further provides a continuous loop recording spanning up to 96 hours for backup. For video retrieval, please contact Scarlet Tech. 7.2 Video Export Plug in the USB Mouse and a USB Flash drive into the USB ports on the Monitor Console. -
Page 20: Video Playback
7.3 Video Playback Plug in the USB Mouse to the Monitor Console’s USB port. Right-clicking and select "Exit Full Screen” to access the main menu. Navigate to "Playback" page to view all camera channels. Choose the desired channel from the channel list. Select the date from the calendar. -
Page 21: Rotate Video Angle
7.5 Rotate Video Angle The video’s angle can be adjust by manually rotating the camera lens. Unscrew the screws located at the four corners of the lens to remove the front cover. Rotate the camera lens 90° clockwise or counterclockwise. Avoid rotating beyond 90° to prevent cable damage FRONT... -
Page 22: Warranty & Services
8. Warranty & Services Thank you for choosing Scarlet HerculesPro. Our warranty ensures your satisfaction and peace of mind regarding the performance and quality of our products. Warranty Conditions Scarlet HerculesPro is guaranteed for one-year warranty against material or production defects, in accordance with our general sales conditions. - Page 23 Scarlet Tech Co., Ltd. © 2024 Scarlet Tech Co., Ltd. All rights reserved. 4F-3, No. 347 , HePing E Rd, 2nd Sec, DaAn District, Taipei City 106, Taiwan info@scarlet.com.tw www.scarlet-tech.com version 241107...
