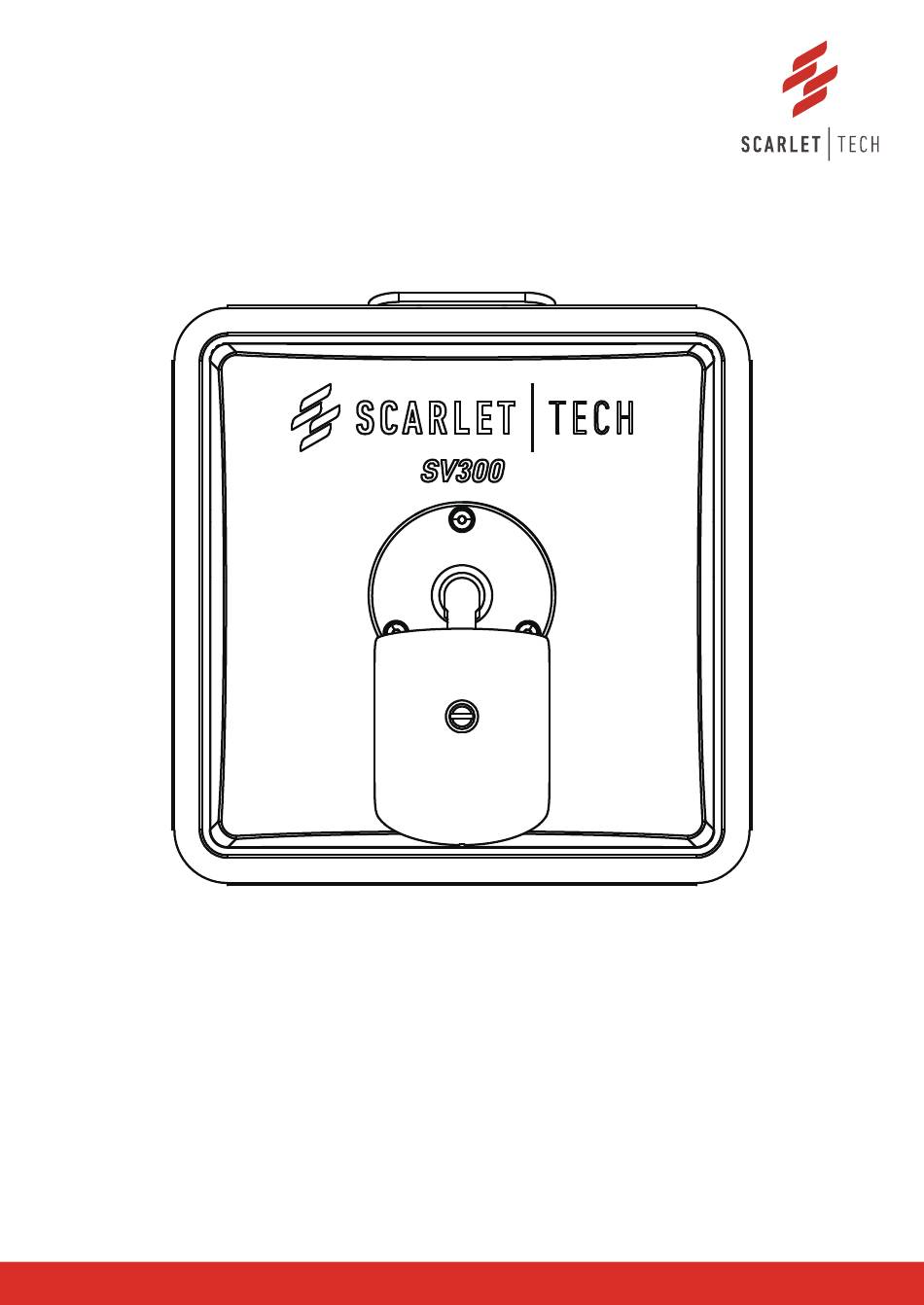

- Page 1 SV300 Wireless Crane Cameras User Guide...
-
Page 2: Table Of Contents
SV300 Wireless Camera Streambox Tablet (Optional) External Power Bank Placement SV300 Wireless Camera Streambox & Tablet LED Indicator Wireless Status Indicator SV300 Wireless Camera Power Status SV300 Embedded Battery & External Power Bank Power Status Remote Camera Power On/Off Management Camera Playback... -
Page 3: Packing List
SV300 Wireless Camera 2. Streambox 3. Monitor 4. SV300 5GHz Omnidirectional Antenna (White. N-type) x 2pcs 5. SV300 Power Adapter (with Waterproof 3-pin Connector) 6. SV300 Wireless Camera Remote Key Fob 7. Streambox 5GHz Omnidirectional Antenna (Black, SMA) x 2pcs 8. -
Page 4: Product Specification
Product Specification SV300 Wireless Camera Camera Wireless Transmitter Embedded Battery RJ45 Port Power Button 3-pin Power Charging Port Battery Status Camera Status Indicator Indicator Hex bolt to arrange Omnidirectional camera angle by Antennas using HEX KEY Wireless Status Indicator Magnets for mounting... - Page 5 Name Name Description Camera Image Sensor 1/2.8" CMOS Electronic Shutter 1/25s - 1/10,000s Lens 2.8mm 105° Resolution & Pixels 2K QHD 2304 x 1296, 3MP Night Vision Starlight technology SD Card Yes, 128GB MIC & Speaker Battery Type Molicel 26700 LiFePO4 Capacity 160Wh Battery Life...
-
Page 6: Streambox
Streambox Antennas Wireless Signal Strength LED Indicators RJ45 Port to NVR USB Type A Port for Charging DC 12V Power Port Streambox Dimension 150 x 100 x 48 mm Weight 0.5kg Wireless Technology Wi-Fi 5GHz Antenna Omnidirectional 5GHz x2 I/O port RJ45 port x1, USB Type A port x1, Power Jack x1 LED Indicator Power status x1, LAN connection status x1, Signal strength x4... -
Page 7: Tablet
Table Volume Up & Down Power On/Off Button HERCULES APP USB Charging Port Table Dimension 250 (L) x 155 (W) x 8(H) mm Weight 0.5kg Android 12 Display 10.37” IPS Touch Screen Resolution 2000 x 1200 Wireless Connectivity Wi-Fi 802.11 a/b/g/n/ac Octa-core processors Memory 4G DDR... -
Page 8: (Optional) External Power Bank
(Optional) External Power Bank Magnets Magnets Power On/Off Button LED Indicators for 3-pin Waterproof Power Status Power Connector Battery type Molicel 26700 LiFePO4 Capacity 160Wh Battery Life 20 hours Charging Time 4 hours Power Charger DC 14.6V4A Installation Mounting by magnets Waterproof IP67 Operation Temperature... -
Page 9: Placement
Block SV300 Wireless Camera 1. Attach one 5 GHz omnidirectional antenna (white) on the N-type port of SV300 Wireless Camera. 2. Attach another 5 GHz omnidirectional antenna (white) on the 90-degree angle antenna transmitter which is pre-installed on the N-type port of SV300 Wireless Camera. -
Page 10: Streambox & Tablet
Streambox & Tablet 1. Attach two 5 GHz omnidirectional antennas (black) on the SMA ports of Streambox. 2. Connect the Streambox to cigarette lighter connector of cabin by using power cord with cigarette lighter. Connect to cigarette lighter connector of cabin 3. - Page 11 4. Press the power button to boot up the monitor. 5. After monitor boot-up, check the status of Wi-Fi. Once the SSID “5G_SV300_XXX” (XXX=001~999) is connected, the monitor can receive the video streaming from the SV300 Wireless Camera <1> <2>...
-
Page 12: Led Indicator
LED Indicator Wireless Status Indicator There are 6 LED indicators on the SV300 AP and Streambox indicate the wireless connection status. LED Indicator Description Definition Power status of SV300 OFF: No power AP/Streambox Steady Green: Power ON Data transmission status OFF: No data transmission of RJ45 configuration port... -
Page 13: Remote Camera Power On/Off Management
Remote Camera Power On/Off Management Using the remote key fob, you can remotely turn ON/OFF the SV300 Wireless Camera to prolong its operating time and decrease the need for frequent power charging. Turn on the carmera Turn off the carmera Note: Before using remote key fob, please make sure the power button of SV300 Wireless Camera is pressed to show the green light. -
Page 14: Camera Playback
2. Press the power button to turn on the SV300 Wireless Camera. 3. Use the LAN cable to connect the SV300 Wireless Camera and PC. 4. Manually set the IP address for your PC or laptop to connect the SV300 Wireless Camera: a. PC/laptop IP address: 192.168.XXX.XXX (e.g. 192.168.5.112) b. - Page 15 5. Launch your browser Chrome or Edge. Input the IP address of yourSV300 Wireless Camera, and then input the camera account “admin” and password “Scarlet@5355” to login camera. 6. Select the “Download plugin” to download plugin file if you visit this page first time.
- Page 16 7. Open this file to install this plugin file on your PC or laptop. 8. After installation process, launch the browser to login the SV300 Wireless Camera again. Select the page “Playback”, select the date and then click the search icon.
- Page 17 9. The green time bar with the video recording will appear at the bottom screen. Press "Play" to watch the recorded video.
- Page 18 10. The video recording can also be download to your PC or laptop to press the icon “Download”. The video file format will be MP4 file.
- Page 19 Scarlet Tech Co., Ltd. © 2023 Scarlet Tech Co., Ltd. All rights reserved. 4F.-3, No. 347, Sec. 2, Heping E. Rd., Da’an Dist., Taipei City 100, Taiwan info@scarlet.com.tw www.scarlet-tech.com version 230619...
