Operating Instructions
English
-
E3
I
Español
I
Français
TM
I
Português
Prototypen Zeichnung
prototype drawing
Achtung!
Attention !
271833085-T / 11_2024
-0,2
+0,5
Kanten nach
-0,5
+0,2
edges to
DIN ISO 13715
\\legs0002\CAD\Archiv\120_Bedienungsanleitungen\110_Bilder_für_BA\Hurst_D
Zust.
Anzahl
Änderung
Datum
Name
Ind.
no. of
change
date
name

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDraulic E3 and is the answer not in the manual?

Questions and answers

Summary of Contents for HURST EDraulic E3

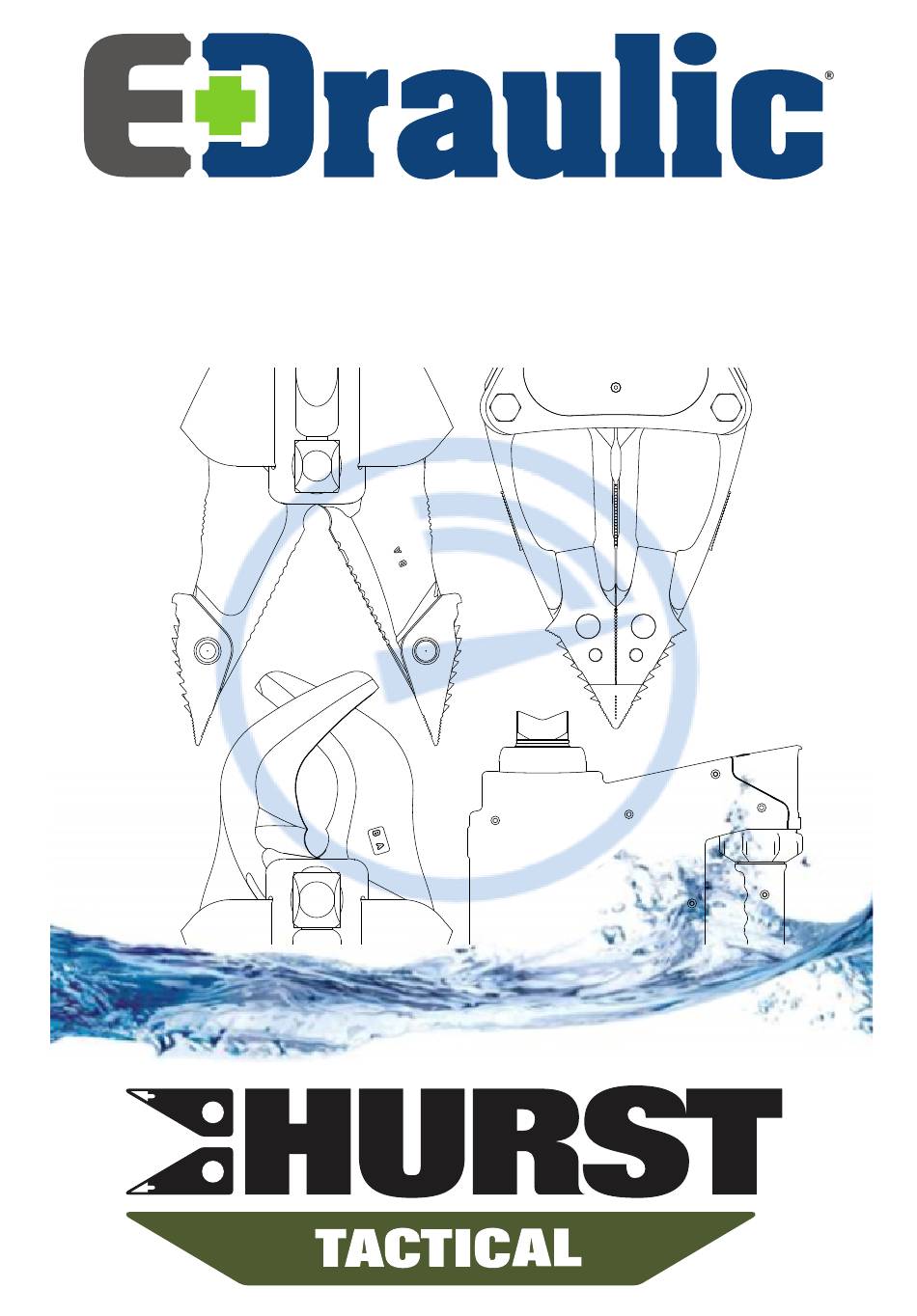

  • Page 1 Operating Instructions English Español Français Português Achtung! Prototypen Zeichnung Attention ! prototype drawing -0,2 +0,5 Kanten nach -0,5 +0,2 edges to DIN ISO 13715 \\legs0002\CAD\Archiv\120_Bedienungsanleitungen\110_Bilder_für_BA\Hurst_D Zust. Anzahl Änderung Datum Name Ind. no. of change date name 271833085-T / 11_2024...
  • Page 3 English ��������������������������������������������������������������������4...
  • Page 4: Table Of Contents

    English Translation of the original instructions Subject to change CONTENTS 1� Proper use��������������������������������������������������������������������������������������������������������� 5 2� Product safety and pictograms�������������������������������������������������������������������������� 5 3� Structure of the devices ����������������������������������������������������������������������������������� 8 4� Operating the devices ��������������������������������������������������������������������������������������� 8 5� Maintenance and care������������������������������������������������������������������������������������� 10 6� Troubleshooting ���������������������������������������������������������������������������������������������� 11 7�...
  • Page 5: Proper Use

    The manufacturer is not liable for damage resulting from improper use� The user bears sole responsibility for such use� The HURST E3 devices are suitable for underwater use to a depth of 3m� For use in salt water, a special salt water rechargeable battery is required; it is available from HURST as an accessory�...
  • Page 6 Never work in a fatigued or intoxicated state! Always use the equipment as described in the section “Proper use”� Please ensure that no body parts or clothing are caught between the moving parts� Always hold the equipment by the handles or housing� Do not touch the piston rods of the rams! Working under suspended loads is not permitted where such loads are only supported by hydraulic or electro-hydraulic devices�...
  • Page 7 Repairs may only be performed by a trained service technician� Only genuine HURST accessories and spare parts may be used� Please note that when working with the equipment, material could fall down or suddenly break free as a result of shearing, tearing or breaking�...
  • Page 8: Structure Of The Devices

    Please ensure that you do not become entangled in cables and trip when working with or transporting the device� Ensure adequate lighting at the location of use and on the way there� Always allow wet batteries to dry before inserting into the charger� Always keep this instruction manual in an easily accessible location close to the device at the place of operation�...
  • Page 9: Replacing The Battery

    4.1. REPLACING THE BATTERY Push the battery from above into the battery slot until it locks in place (figure A). 4.2. REMOVING THE BATTERY Release the lock and remove the battery (figure B). 4.3. QUERYING THE BATTERY STATUS Press the query button on the battery (figure C). Note also the separate instructions for the battery�...
  • Page 10: Maintenance And Care

    The annual inspection must be performed by a person with the necessary exper- tise� A function and load test must be conducted every three years or in case of any safety concerns� Only testing equipment approved by HURST may be used� Please also observe the relevant domestic and international regulations on the maintenance intervals of tools�...
  • Page 11: Troubleshooting

    2� Carefully de-burr the grinding area with the grinding machine (Picture N)� 5.4. REPAIR Repairs may only be performed by HURST or personnel trained by HURST� When doing so, observe the information in the spare parts lists� 5.5. BATTERIES If the devices are not used for a longer period, we recommend starting up the device with the appropriate battery 5 times after 30 days�...
  • Page 12 Remove the battery� Repair by an authorized dealer, by personnel specially trained by HURST, or by HURST itself tool moves jerkily Air in the hydraulic Repair by an when operated system authorized dealer,...
  • Page 13: Explanation Of Pictograms For Performance Tables

    Soiled valve or position by HURST, or by star grip HURST itself Defective valve Other mechanical damage (e�g� star grip) Hydraulic fluid Defective rod seal Repair by an...
  • Page 14 Symbol Description Remarks / abbreviation abbreviation Length extended ←L→ Hg / H1 / H2 Stroke Piston extension 1 Piston extension 2 Force piston 1 HSF1 Force piston 2 HSF2 Maßstab 1:10 Rechtecke für Maßband 50x23, Strich für Teilung 11,5 lang Width (without battery) Height...
  • Page 16 Symbol Description/note Spreading force [kN] Spreading width [mm] Classification based on the minimum performance of the cutter Weight [kg] (accurate to one decimal place) Cutter power Round material Flat material Round tube Square tube Rectangular tube...
  • Page 17: Accessories

    Only HURST lithium-ion rechargeable batteries may be used to operate eDRAULIC devices� Observe the separate operating instructions for the lithium-ion battery! A special salt water battery is available from HURST for use in salt and sea water� 8.2. BATTERY CHARGER Only the "eDRAULIC Power Pack Charger"...
  • Page 18 Maßstab 1:10 Rechtecke für Maßband 50x23, Strich für Teilung 11,5 lang SC 258 E3 [mm] / [in�] 792 / 31�2 Maßstab 1:10 Rechtecke für Maßband 50x23, Strich für Teilung 11,5 lang [mm] / [in�] 210 / 8�27 [mm] / [in�] 253 / 9�96 [kg] / [lbs�] 14,8 / 32�6...
  • Page 19 TB [°C] -20��� +55 TB [°F] -4��� +131 TL [°C] -30��� +60 TL [°F] -22��� +140 EN [dB(A)] NFPA [dB(A)]...
  • Page 20 Maßstab 1:10 Rechtecke für Maßband 50x23, Strich für Teilung 11,5 lang SC 358 E3 [mm] / [in�] 876 / 34�5 Maßstab 1:10 Rechtecke für Maßband 50x23, Strich für Teilung 11,5 lang [mm] / [in�] 235 / 9�25 [mm] / [in�] 253 / 9�96 [kg] / [lbs�] 18,3 / 40�3...
  • Page 21 TB [°C] -20��� +55 TB [°F] -4��� +131 TL [°C] -30��� +60 TL [°F] -22��� +140 EN [dB(A)] NFPA [dB(A)]...
  • Page 22 E ( 2 : 1 )
  • Page 23 K ( 2 : 1 )
  • Page 24 K ( 2 : 1 )
  • Page 25 L ( 5 : 1 ) K ( 2 : 1 ) Achtung! Prototypen Zeichnung Attention ! prototype drawing...
  • Page 26 Sauberkeitsklassen D nach AA-EK-76 Cleanliness class D according to AA-EK-76 L ( 2 : 1 ) über -0,2 Allgem. Tol. nach +0,5 -0,5 Kanten nach general tolerance to +0,2 DIN ISO 2768 edges to Toleranzklasse DIN ISO 13715 tolerance class m / H \\legs0002\CAD\Archiv\120_Bedienungsanleitungen\110_Bilder_für_BA\Spreizerspitze_schräg.iam Maßstab...
  • Page 29 711 North Post Road Shelby, NC 28150 Email: contacthurst@idexcorp.com Phone: 1-800-537-2659 Web: www.jawsoflife.com Subject to Revision...
