NexiGo N680 Manual

NexiGo Webcam Settings Software

Free of charge to all our loyal NexiGo customers to enhance your experience with this webcam, just head on over to nexigo.com/software to download it. This software allows you to change almost every setting for your webcam. From brightness to focus, from saturation to hue, find the look that highlights the best you!

Download the NexiGo Webcam settings software from
nexigo.com/software

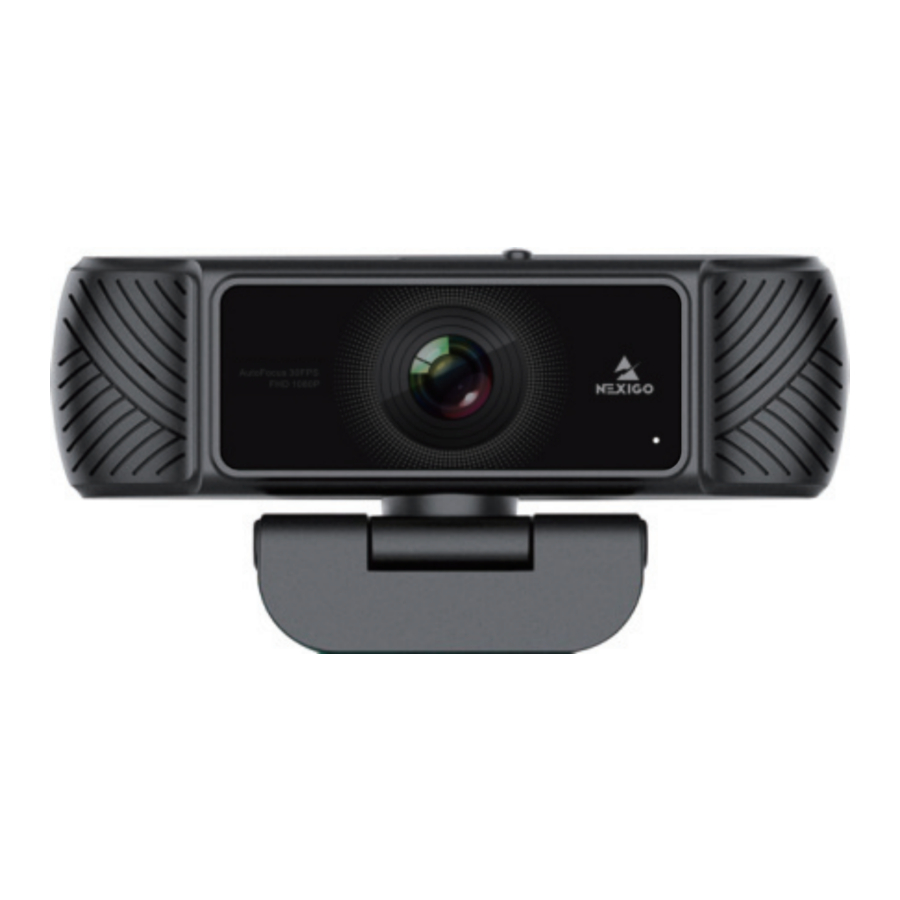

Product Overview

1. FHD Lens
2. Noise Reduction Microphones
3. Power Indicator
4. Privacy Shutter
5. 1/4" Tripod Screw Hole
6. Flexible Clip/Base

What's in the Box

1 x FHD Webcam with Privacy Cover
1 x User Manual

Specification

Setting Up Your Webcam

1. Place/Position your webcam

2. Connect the webcam to your computer using the USB cable


Note:

1. Make sure you are connected to your network before starting the setup.
2. If you cannot use the camera within other apps, you will need to enable access.
   • In Windows: Select settings>Privacy>Camera, turn on allow apps to access your camera.
   • On Mac: Select Apple menu>System Preferences> Security & Privacy>Privacy>Camera, and select which apps you want to use the camera. If you still have trouble connecting the Webcam, please refer to FAQ sections.
3. 1. View your camera: Windows
      Windows users can use the Camera app, which is pre-installed with Windows. To find the Camera app type "camera" (without the quotation marks) in the search bar at the boom of the screen and press enter. Alternatively, go to the Start menu at the boom right corner of the screen and le click. Scroll through the list of programs there until you get to the "C" section, the Camera Application will be listed there. To view your webcam video you may need to select "the NexiGo camera" from the list of other devices. At the top right or le of your screen click the cycle camera icon (the arrow chasing itself, not the gear), and keep switching until you get to the NexiGo webcam.
   2. View your camera: Mac
      Mac users can use the Photo Booth app, which is pre-installed with the OS. This will allow you to preview the camera images, capture still frames, and record video clips. To begin, select the Finder button, click Applications, and select Photo Booth.

      Alternately, click the Search button in your menu bar, type "photo booth" (without the quotation marks), and press return. To see an image from your camera in Photo Booth, you may need to select the camera from the list of attached devices in the app. At the top of your screen, click Camera in the app menu, and select the Full HD Webcam from the list of options.
4. Video calling requirements
   1. A computer with speakers (or a headset), your NexiGo webcam, and a microphone;
   2. Install a video-calling application such as Skype, FaceTime, Zoom, or Hangouts. (Both pares need a webcam and the same video application.)

FAQ

Q1: How do I know if my camera is being recognized by the system?
A: Connect the camera to any USB 2.0 or USB 3.0 port. It will take a few sections for the camera to be recognized after it is connected to the system. To ensure the camera has installed correctly on a Windows computer; check under Control Panel>System and Security>Device Manager.

To verify the webcam is connected on a Mac computer, click the Apple Menu (in the top le corner of your screen) and then click About this Mac. Click on System Report from the pop-up window that appears. The System Information window for your Mac will appear. Navigate to the USB section and check if the webcam is listed as a connected device (like the photo below):

Q2: What is the video recording frame-rate?
A: The NexiGo webcam captures clear images and can record video at 1080p/30fps in a well-lit environment. The quality of the signal can be affected by low bandwidth availability or insufficient lighting. This can cause the frame rate to drop to 1080p/20fps, or possibly even lower.

Q3: What can I do if the images or video are an abnormal color? How to adjust image parameters such as brightness or contrast?
A: Please ensure that the light in your environment is free of unique tones or intense light sources. Things such as walls/floors/other large-area non-standard light sources, including areas with colored or intense light. In such environments photographed pictures are subjected to color cast due to the lighting impact of these light sources.

For Windows & Mac:
Using the NexiGo Webcam settings software, you can adjust the image parameter you want according to your needs.

Note: Download the NexiGo Webcam settings software from nexigo.com/software

Q4: Why is my video not in 1080p in my video calling Application?
A: Check the video output settings in your video capture software, these may be set to a lower capture format. There are various constraints on the system that could impede the ability to attain a 1080p video calling session. They center around processing power (i.e. CPU speed) and available network bandwidth. In all cases, review the requirements from the video calling Application. They will guide as to the system performance required as well as the necessary bandwidth.

Q5: How to use the webcam privacy Shutter?

A: The privacy cover for this webcam is located on top of the webcam. Slide the small knob to ON/OFF, and the privacy Shutter will be opened/closed.

Q6: Why does my screen go blank or black while trying to preview images?
A: There are several reasons this could happen:

1. There is something wrong with the USB port. Please use a different USB port or another PC and test the camera again.
2. The PC does not recognize the camera device.
3. The operating system and computer configuration do not satisfy the requirements of the camera. Please check your system specifications.
4. The video preview feature of the Application is not turned on, or the Application has a privacy feature that prohibits access to the camera. Please try with a different Application.

Support

If you have any problems please contact us at cs@nexigo.com anytime for further assistance.
Make sure to register your purchase at nexigo.com/warranty within 14 days of the delivery date to extend your warranty coverage to TWO Years!
