NexiGo N3000 Manual

NEXIGO WEBCAM SETTINGS SOFTWARE

NexiGo is proud to introduce the new NexiGo Webcam Settings software! Free of charge to all our loyal NexiGo customers, use it to enhance your experience with your webcam. Just head on over to nexigo.com/software to download it. The NexiGo Webcam Settings software allows you to change almost every setting for your webcam. From brightness to focus, from saturation to hue, find the look that highlights the best you!
Download the NexiGo Webcam Setting Software from: nexigo.com/software

PRODUCT INTRODUCTION

All-in-One Solution: With a combined 4K ePTZ camera, omnidirectional microphones and an independent speaker, the NexiGo N3000 Mini Meeting Camera gives you a true face-to-face meeting experience by delivering up to 2160P UHD video with crystal clear audio.
Auto Framing: Built-in AI facial recognition algorithms capture and frame individuals in the center of the image.
ePTZ: Electronic Pan-Tilt-Zoom with up to 5X magnification allows for easy adjustments even from a distance.
360° Omnidirectional Microphones: Built-in microphone array with four integrated omnidirectional microphones provide high quality sound capture. Noise cancellation and echo reduction technology are integrated to provide for as clear of a noise signal as possible at up to 3 meters (10 ft).
Full-Range Speaker: The built-in high power speaker allows the N3000 to transmit and receive sound simultaneously with no disturbance or overlap.
Easy to Use: USB 3.0 plug-and-play with no additional drivers or installation required. The NexiGo N3000 Mini Meeting Camera is compatible with most video conferencing applications and UC platforms.

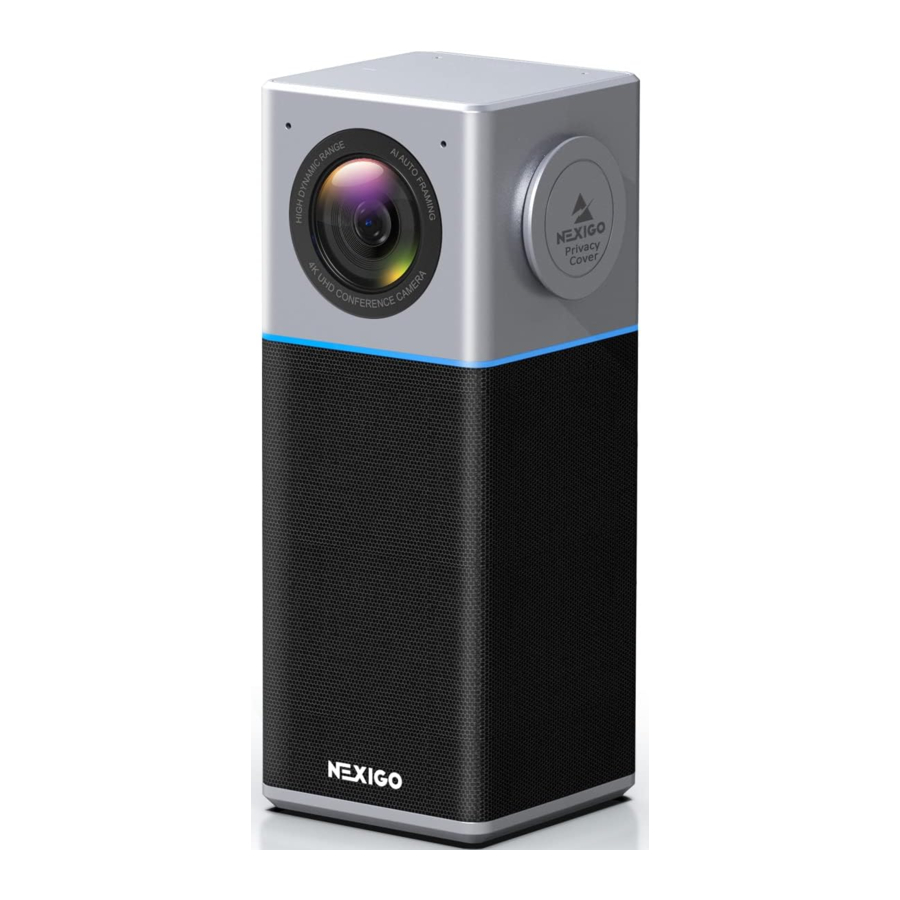

PRODUCT OVERVIEW

1. Lens
2. Microphones
3. Auto Framing Switch
4. Mute
5. Volume -
6. Volume +
7. Lens Adjustment Scrollwheel
8. Indicator Light
9. Speaker
10. Power Input
11. Magnetic Privacy Cover
12. 1/4" Tripod Thread Hole

PACKAGE INCLUDES

1 x N3000 Mini Meeting Camera
1 x USB-C to USB-A Cable
1 x Magnetic Privacy Cover
1 x User Manual

SPECIFICATIONS

BUTTON INTRODUCTION

Mute: Tap to mute/unmute the microphones.
Auto Framing Switch: Tap to enable or disable auto framing function.
Volume -: Tap to decrease the speaker volume.
Volume +: Tap to increase the speaker volume.
Lens Adjustment Scrollwheel: Adjust the camera lens up to 15° up or down (30° range max).

INDICATOR LIGHT INTRODUCTION

Breathing blue light indicates the camera is powered.
Steady blue light indicates the camera is being used.
Red light indicates the microphones are muted.
Green light when adjusting the speaker volume. The brightness of the green light changes simultaneously with the speaker's volume, it increases with the volume up and decreases with the volume down.

SETUP INSTRUCTION

CAMERA SETUP

1. Place your webcam on an appropriate surface.
   Mounting Option 1: Place directly on a flat surface.
   Mounting Option 2: Install with a 1/4" thread tripod.

2. Connect the camera to your computer using the provided USB cable.
   Note: Make sure your computer is connected to the network and has a stable internet connection before starting the setup.

3. Open the video conference app you want to use the camera with. Ensure that this camera ("NexiGo N3000 Camera") and its built-in microphone ("NexiGo N3000 Audio") are selected in the settings of the app you are going to use. Consult the user guide for the software you intend to use if you have issues selecting the camera or microphone in that software.

Windows SETUP

1. Go to Settings > Privacy > Camera and turn on Let apps use my camera.
2. Turn on each of the apps on the list where you want to use the camera. In the app you wish to use, ensure the NexiGo camera is selected as the active camera and microphone from the list of available options.

macOS SETUP

1. Go to the Apple menu > System Preferences > Security & Privacy, select the Privacy tab. Select Camera from the list of options on the left side of the page.
2. Locate the apps you want to enable camera access for and check the box alongside that app's name to enable camera access for that application.

Lens scratches are not covered by the warranty. There is no built-in protection for the lenses on the camera. If you are not careful you may scratch the lens.

NOTES

1. Read all instructions to prevent damage due to misuse.
2. Do not place or attach the product to an unstable or uneven surface. Failure to follow this precaution may cause the product to fall and cause damage to the unit.
3. Only use the provided USB cable to power the unit. Using other parts, accessories, or chargers not recommended by NexiGo may result in fire, electric shock, or damage to the item or user.
4. The lens on this camera is made of glass. If the lens is damaged, be sure to handle it carefully to avoid potential dangers and keep it out of the reach of children.
5. The temperature of the camera may rise during operation. If the camera is hot to the touch, turn off the camera and leave it to cool before using it further.
6. This product is not a toy. You are solely responsible for complying with all local laws, regulations and restrictions regarding the use of this product in your jurisdiction.
7. Do not use or store the camera in extremely cold or hot environments. Extremely cold or hot conditions may cause the camera to malfunction or may damage the unit.
8. If the unit is damaged, please exercise the warranty or dispose of the item. Do not attempt to open and repair it independently. Contact NexiGo Customer Support to exercise the warranty.
9. To clean the device, wipe it with a soft, dry cloth. To clean the lens, use a dry microfiber cloth or a lens cleaner. Use only a mild detergent if necessary. Do not use strong or corrosive detergents to avoid scratching the lens and affecting image quality.

CONTACT INFORMATION

Manufacturer: Nexight INC
Address: 11075 SW 11th St, Beaverton, OR, 97005, US
Website: www.nexigo.com
E-mail: cs@nexigo.com
Tel: +1(458) 215-6088
