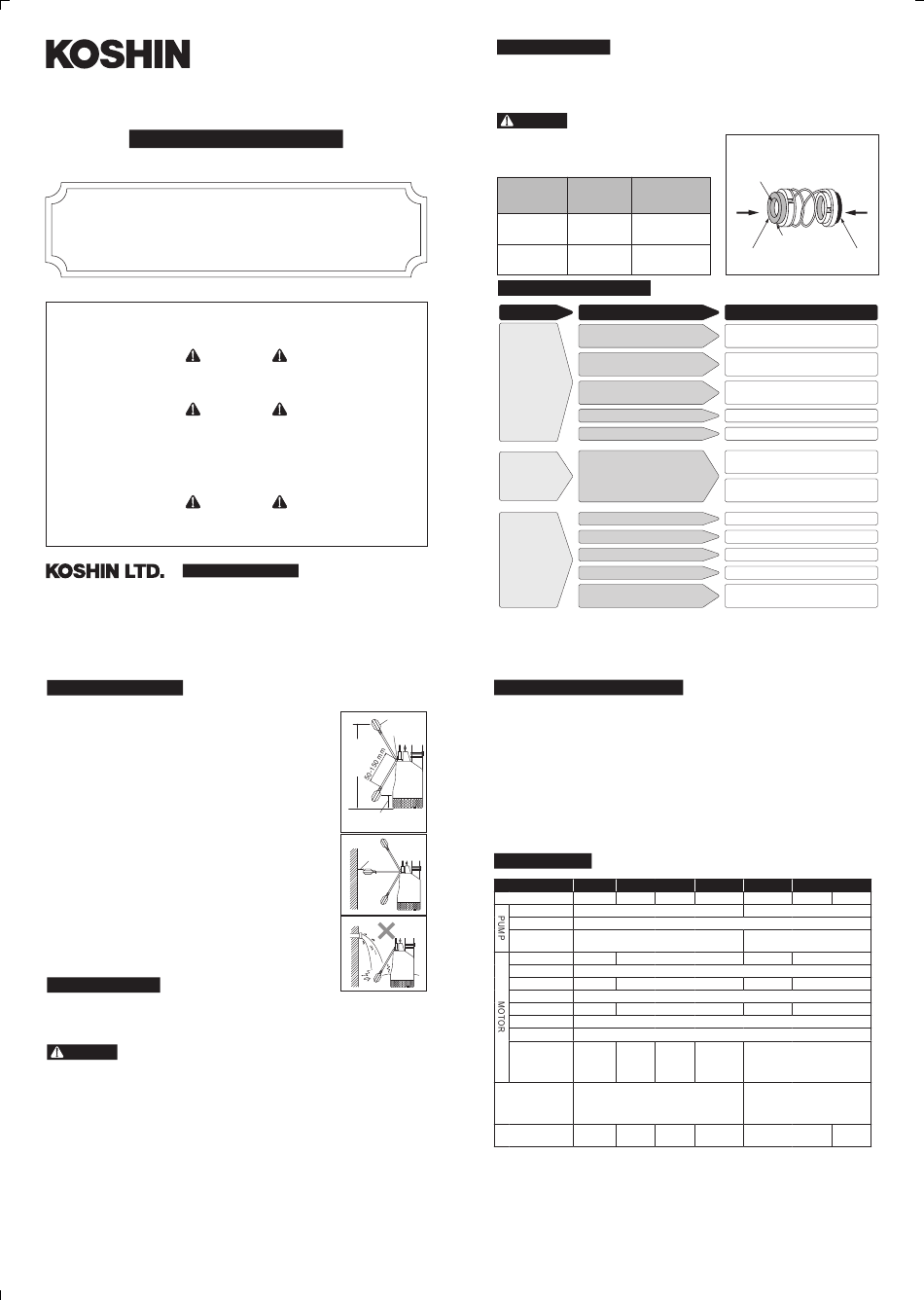

Koshin PX-55011 Operation Manual

High Performance
Submersible Pump
OPERATION MANUAL
< PX-55011 / 55022 / 55022A >
< PXL-52511 / 52522 >
• Thank you for choosing Koshin Submersible Pump.
• This manual is prepared for your safety when operating pump.
Please read carefully and comprehend fully before use.
(Wrong usage could cause injury or death.)
• Please keep this manual handy for future reference.
PLEASE READ THIS MANUAL BEFORE OPERATION.
"ACCEPTABLE FOR INDOOR OR OUTDOOR USE"
"SUBMERSIBLE PUMP"
CAUTION
Before use, please make sure to read the instruction manual.
Do not operate the pump out of water or insufficient water.
WARNING
Risk of electric shock. This pump is supplied with a grounding conductor
and grounding-type attachment plug. To reduce risk of electrical shock, connect
only to a properly grounded, grounding-type receptacle.
TO REDUCE THE RISK OF ELECTRIC SHOCK, INSTALL ONLY ON A CIRCUIT
PROTECTED BY A GROUND-FAULT CIRCUIT-INTERRUPTER (GFCI).
N O T E
This pump has not been investigated for use in swimming pool or marine areas.
This pump has been evaluated for use with water only.
www.koshinpump.com
TEL.: +81-75-953-2499 FAX.: +81-75-954-6119
12 Kami-Hachinotsubo Kotari, Nagaokakyo City, Kyoto 617-8511 JAPAN
INSTALLATION AND USE
• An acceptable motor-control switch shall be provided at the time of installation.
• Thermally protected
1. This pump works under an automatic surface control
system whereby it is automatically switched
on and off by a float switch.
2. The pump starts automatically when the water level rises
and the float comes up to the ON water level, and stops
automatically when the water level falls and the float
comes down to the OFF water level.
3. The ON and OFF water levels can be adjusted by
loosening the cord band bolt. However, the length
of the cord between the cord band and the float
switch should be between 50 mm and 150 mm,
otherwise the float switch will not operate normally.
4. The float switch should be installed where it does
not come into contact with walls or is any other
obstructions.
5. The pump should not be installed where water is
discharged directly onto the float.
AFTER USING PUMP
1. In cold climates, do not allow pump to freeze.
Remove pump from water to prevent damage due to freezing.
2. Completely drain and dry pump of water before storing.
CAUTION
1. Leak Current Breaker
For home use, attach a leak current breaker, GFCI (offered separately) to ensure safety.
2. Connect the power source
Absolutely refrain from connecting this pump to any other power source than 110 V AC or
220 V AC, 50 Hz.
3. Water to use
Absolutely refrain from using the pump for any oil, sea water, strong alkaline or strong
acidic solution, or any agricultural chemicals.
4. Do not run dry!
Idling can cause trouble, to prevent short cycling place pump at deepest position as possible.
5. Handling of power cord
a. Never lift or move pump by power cord. Only lift by handle or tie rope supplied to handle.
b. Select and use proper size extension cord. Do not run extension cord in water.
6. Using in bath, etc.
Do not enter the water when pump is being used.
- 1 -
24-05 043031811
3
Float switch
Cord Band
The ON
water level
350-
410 mm
The OFF water level
: 100-130 mm
4
Leave
space
5
- 3 -
AFTER USING PUMP
1. In cold climates, do not allow pump to freeze.
Remove pump from water to prevent damage due to freezing.
2. Completely drain and dry pump of water before storing.
CAUTION
The pump is used a double mechanical seal.
(See figure)
Consulting the following table assemble it.
Mechanical Motor side Pump side
seal (Carbon) (Carborundum)
Outside
20.5
20.0
mm
diameter
Internal
16.0
15.5
mm
diameter
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE
Not properly connected to
power circuit
The GFCI, leakage circuit
No start at breaker is actuated
all or stops
immediately
The impeller is caught
after start
by foreign substance
Motor is burnt
Voltage drop
Failure during
The protector is actuated
operation
Voltage drop
High delivery head
No pumping
Discharge pipe is clogged
or poor
performance
Impeller wear
Clogging of foreign matter
in strainer pump
MAINTENANCE AND INSPECTION
1. Periodically check the insulated condition with a megger tester.
To be acceptable, the resistance between the earthing wire and the power cord
should be 100 Megohm and higher.
2. The shaft of the water-tight mechanism as the most critical part of the pump is
sealed with liquid paraffin. The life changes greatly depending on the operating
condition but the quantity should be checked periodically.
Use 230 cc of Crystol No.70 by Exxon Mobil Corporation for the sealing.
The liquid paraffin can be checked easily by removing the hexagon socket head
bolt at a lower side of the pump body.
SPECIFICATIONS
MODEL PX-55011 PX-55022
Type BAB BAA BAC
Connection Dia 50 mm (2 in)
Total Head
Delivery
260 L/min (68.6 USG/min)
Volume
Voltage AC 110 V AC 220 V
Frequency
Rated Current 6.5 A
Output
Consumption 580 W 620 W
Revolution
Model
10 m 5 m 10 m
Power Cord
(32.8 ft) (16.4 ft) (32.8 ft)
Standard 1 Rope (5 m / 16.4 ft),
Accessories 1 Hose Band, 1 Hose Nipple
11.9 kg 11.1 kg 11.6 kg
Net Weight
(26.2 lbs) (24.5 lbs) (25.6 lbs)
Starting current is three times higher than rated current.
*
Double mechanical
Internal diameter
Motor
side
mm
Carbon
Outside diameter Carborundum
mm
SOLUTION
Correct the connection
Check the power circuit
Repair the point of leakage
Repair or replace
Raise the voltage to the rating
Remove foreign substance if
the impeller is clogged
Lower the liquid temperature
if it is too high
Raise the voltage to the rating
Lower the head
Overhauling
Replacement
- 2 -
Overhauling
PX-55022A PXL-52511 PXL-52522
BAA BAB BAB BAC
25 mm (1 in)
10 m (32.8 ft)
120 L/min (31.7 USG/min)
AC 110 V AC 220 V
50 Hz
3.2 A 6.0 A 2.9 A
400 W
590 W 540 W
2900 rpm
Induction Motor
10 m with
Float 10 m
Switch (32.8 ft)
(32.8 ft)
1 Rope (5 m / 16.4 ft),
1 Hose Band, 1 Coupling
Packing,
1 Coupling , 1 Hose Nipple
11.8 kg 12.2 kg 11.8 kg
(26.0 lbs) (26.9 lbs) (26.0 lbs)
- 4 -
Pump
side
