Koshin KTH-S Series Operating Instructions & Parts Manual

KTH-S SERIES
Please read and save these instructions and Engine owner`s manual. Read carefully before attempting to assemble, install,
operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury
and or property damage! Retain instructions for future reference.

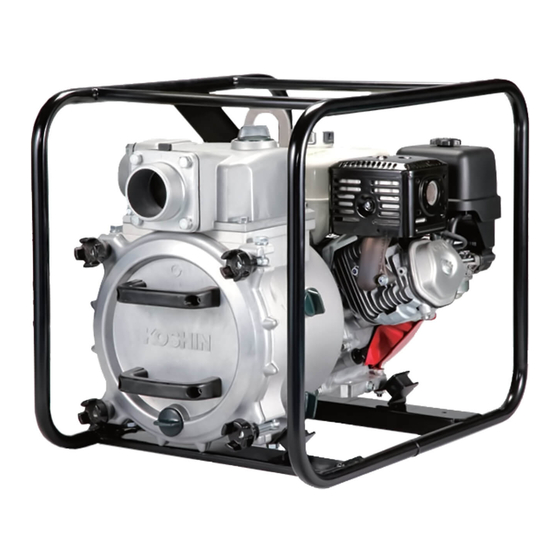

TRASH PUMP
Description
Trash Pumps provide superior performance in dirty water applications.
All Trash Pumps have silicon carbide mechanical seals,
high chrome cast impellers, and spheroid graphite ductile iron for
longer durability. Honda Engines standard with oil alert are
coupled with a lightweight aluminum die cast pump protected
by a roll cage. Volutes are a spheroid cast graphite
iron with high chrome impellers with silicon
carbide mechanical seals for longer life and less
maintenance. Self-priming up to 26 feet.
Applications are for dewatering construction,
industrial and civil sites where the water contains
larger solids of up to 1 1 / inches.
2
In addition horizontally-fixing, front cover handle can
fix lengthwise direction.
PERFORMANCE CURVE
100 200
30
25
20
15
10
KTH-80S(GX270)
5
0 200 400 600 800
DELIVERY VOLUME (L/min)
SPECIFICATIONS
Model
Connection Dia
Connection Thread
Total Head
Discharge Volume
Max. Suction Lift
Type
Model
Displacement
Fuel
Engine Oil
Fuel Tank Capacity
Starting System
Standard Accessory
Net Weight
Guaranteed Sound Power
Operating Instructions & Parts Manual
Heavy Duty
*Performance ratings are guaranteed
minimum, not inflated maximum.
( USG/min )
300 400 500 600
KTH-100S(GX390)
1000 1200 1400 1600 1800 2000 2200
KTH-80S
3" (80 mm)
27 m (89 ft)
1450 L/min (383 USG/min)
Honda GX270
270 cm
5.3 L (1.4 USG)
None or 1 Strainer, 2 Hose Couplings, 3 Hose Bands, 1 Engine Tool Set
66 kg (146 lbs)
LWA 105 dB
Distributed by
PumpBiz, Inc.
800-PumpBiz.com
Priming plug
Discharge
Suction
Handle
( ft )
100
90
80
70
60
Knob
50
40
Water drain plug
30
20
10
Parallel Pipe Thread or NPT
8 m (26 ft)
Air Cooled 4 stroke OHV Gasoline Engine
3
Automotive Unleaded Gasoline
SAE 10W-30 API SJ or later, for general use.
Recoil starter
1
Lifting eye
Fuel tank cap
Plug for
removing impeller
Oil drain plug
KTH-100S
4" (100 mm)
30 m (98 ft)
2050 L/min (542 USG/min)
Honda GX390
3
389 cm
6.1 L (1.6 USG)
82 kg (181 lbs)
LWA 106 dB
E
N
G
L
I
S
H
Muffler
E
S
P
A
Ñ
O
L
Frame
F
R
A
N
Ç
A
I
S
