- Page 1 SD-MV-KM43 4K60Hz KVM Matrix with Multiviewer & Matrix Switch Showing the World USER MANUAL Ver 3.0...
-
Page 2: Table Of Contents
SD-MV-KM43 User Manual Content 1. Introduction 2. Features 3. Front Panel 4. Rear Panel 5. Remote Control Operation 6. Mouse & Keyboard Operation 6.1. Input Signals Management 6.1.1. Operation Menu 6.2. KVM Signals Management 7. System Diagram 8. RS232 command www.seada.co.uk... -
Page 3: Introduction

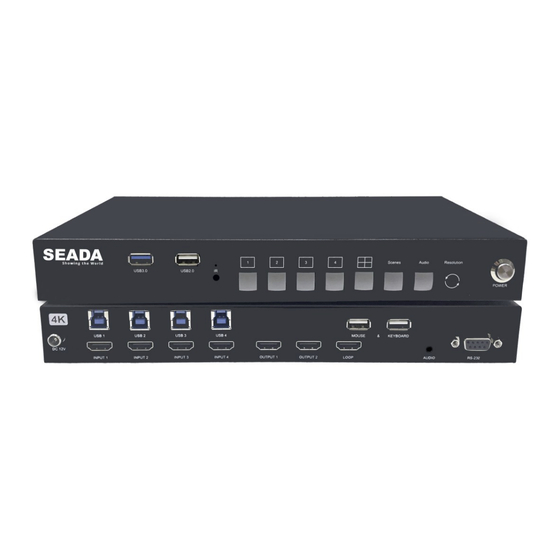

SD-MV-KM43 User Manual 1. Introduction The SD-MV-KM43 KVM Matrix with Multiviewer & Matrix Switch is designed to display multi video inputs anywhere & any size onto one or two displays. It features four HDMI inputs supporting up to 4K and 2 HDMI outputs with resolution up to 4K as well. -
Page 4: Front Panel
SD-MV-KM43 User Manual 3. Front Panel Menu Function Receive signals from the remote control. Short press the button to select input 1 on full screen. Long press for 3 seconds to select input 1 as loop out. Short press the button to select input 2 on full screen. -
Page 5: Rear Panel
SD-MV-KM43 User Manual 4. Rear Panel Menu Function Input 1 HDMI input interface 1, resolution up to 4K60hz Input 2 HDMI input interface 2, resolution up to 4K60hz HDMI input interface 3, resolution up to 4K60hz Input 3 Input 4... -
Page 6: Remote Control Operation
SD-MV-KM43 User Manual 5. Remote Control Operation Button Function Select input 1 on full screen display Select input 2 on full screen display Select input 3 on full screen display Select input 4 on full screen display Switch to audio of HDMI input 1... -
Page 7: Mouse & Keyboard Operation
SD-MV-KM43 User Manual 6. Mouse & Keyboard Operation Mouse Wheel: By double-clicking the mouse wheel, you can switch between the functions of KVM and controlling the signal windows for Multiview and signal switching. 6.1. Input Signals Management When the operation menu is shown on the top of the screen, the system is in the mode of signals management for Multiview and signal switching. - Page 8 SD-MV-KM43 User Manual 6.1.1. Operation Menu a) Signals Setup Users can set up the parameters of the device and signals in this section Resolution Select output resolution, there are 11 options. Audio Out Select audio output from HDMI input 1 to input 4.
- Page 9 SD-MV-KM43 User Manual b) Signals Layout Setup Users can set up the multiview layouts here. Users are able to customize the size and position of the signal windows and save it as preset layouts. Duplicated outputs 2 Display Dual view display, there are 2 layouts...
-
Page 10: System Diagram
SD-MV-KM43 User Manual 6.2. KVM Signals Management By double-clicking the mouse wheel to hide the Operation Menu to access the KVM mode. Users can manage up to 4 PCs on a single monitor or across two monitors Single Monitor: Mouse can be moved freely between different PC windows... -
Page 11: Rs232 Command
SD-MV-KM43 User Manual 8. RS232 command Communication protocol Default baud rate: 115200 Data bit:8 Stop bit:1 Parity bit: None Note: ‘<’ and ‘>’ in the following commands are sending characters, and the command ‘,’ or ‘.’ cannot be omitted. Please note the upper and lower case in the command. - Page 12 SD-MV-KM43 User Manual <config,pip,blend,0,2> <recall,display,0,wins,mode> Set output wins:0-4 0: Dual-view for 2 different outs Setting the output display layout display 1: full screen 2: Dual-view 3: Triple-view 4: layout Quadview quad-view with the 1st mode mode: 0-4 correspond to modes 1-5 (the list as layout.
